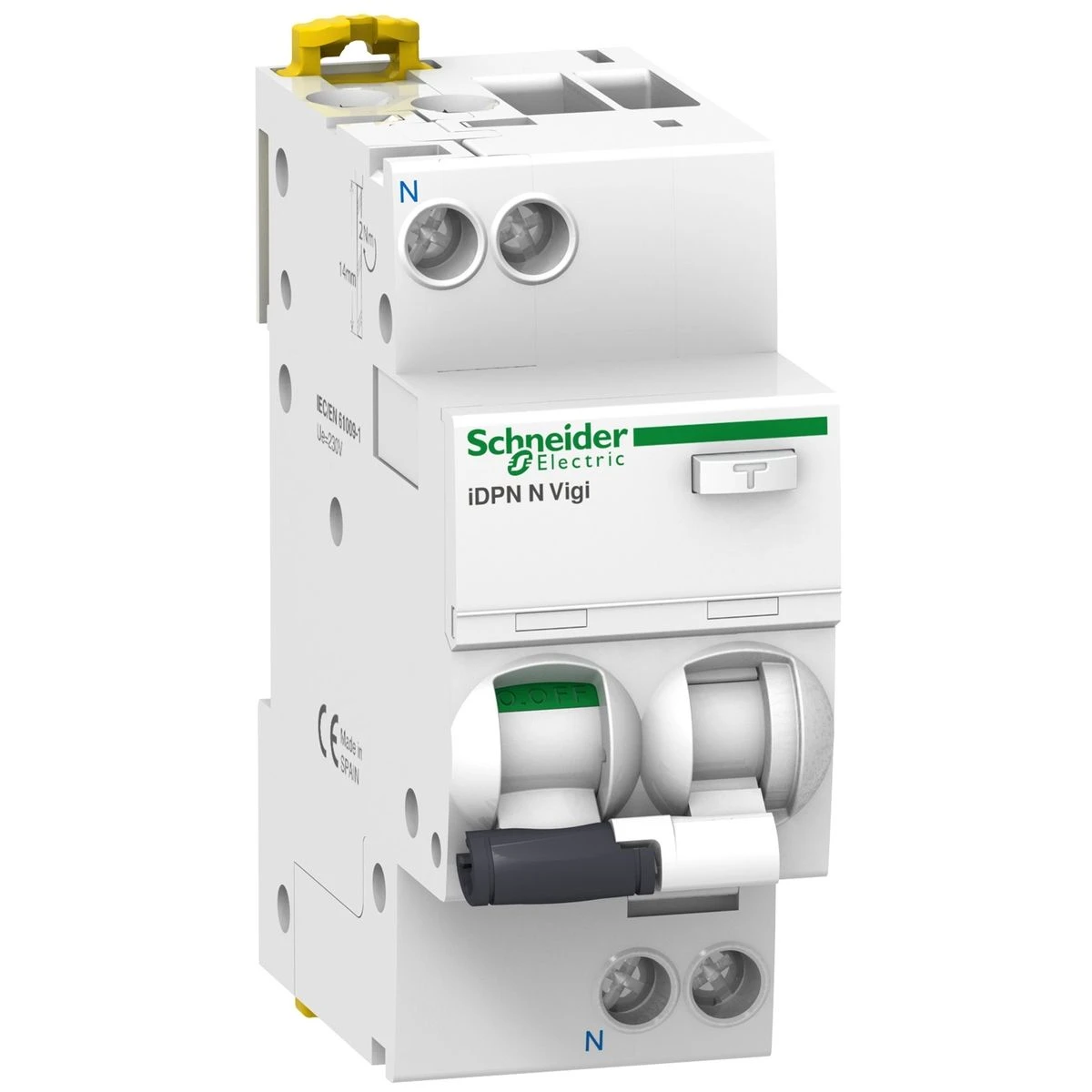

A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA - Schneider Electric

Pending restock
A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA - Schneider Electric - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA - Schneider Electric - 0
A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA - Schneider Electric
57,22 € excl. VAT
70,96 € incl. VAT
Text About:
Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA - Schneider Electric
70,96 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name iDPN N Vigi
Device location in system Outgoer
Range Acti9
Earth-leakage protection class Type A
Neutral position Left
Number of protected poles 1
Earth-leakage protection time delay Instantaneous
Earth-leakage sensitivity 300 mA
Product Name Acti9 iDPN Vigi
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 400 V AC 50 Hz
Complementary
9 mm pitches 4
[in] rated current 25 A
[ue] rated operational voltage 220...240 V AC 50 Hz
[ics] rated service breaking capacity 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
Control type Toggle
Product certifications VDE
KEMA
Connection pitch 9 mm between phase and neutral
Handle front plate colour 85 mm
Product or component type Residual current breaker with overcurrent protection (RCBO)
tightening torque 2 N.m top or bottom
[uimp] rated impulse withstand voltage 4 kV
Comb busbar and distribution block compatibility Top or bottom: YES
Connections - terminals Single terminal top or bottom 1…16 mm² rigid
Single terminal top or bottom 1…10 mm² flexible
Single terminal top or bottom 1…10 mm² flexible with ferrule
Locking options description Padlocking device
Contact position indication Yes
Device application Distribution
width (w) 36 mm
network frequency 50 Hz
Colour White
Local signalling ON, OFF, fault trip
Mounting mode Clip-on
Net weight 125 g
wire stripping length 15 mm for top or bottom connection
Earth-leakage protection Integrated
Mounting support DIN rail
depth 73 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 5...10 x In
Network type AC
Pollution degree 3
Limitation class 3 conforming to EN/IEC 61009-2-1
residual current tripping technology Voltage independent
Suitability for isolation Yes conforming to EN/IEC 60947-2
Poles description 1P + N
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
ambient air temperature for operation -25…60 °C
electromagnetic compatibility 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
overvoltage category III conforming to IEC 60364
standards EN/IEC 61009-2-1
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA is conceived to cater to the desires of professional buyers, such as installers, wiremen, service providers, and Original Equipment manufacturers. A9D42625 affords extraordinary standards and utility for professionals in the electrical engineering industry. This Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA and other iDPN from Schneider Electric are accessible at the most affordable rate and fulfillment period through BALTELEC, an independent reseller helping consultants in their obtaining needs.

Buyers who have secured Schneider Electric iDPN have regularly acclaimed the manufacturer’s trustworthiness. It has been stated that the excellent productivity of A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA extends to a variety of utilizations. Its ideal traits make it perfect choice for wide-ranging specifications, ensuring your industrial, tertiary and automation projects success.

BALTELEC specializes in fulfilling industrial and tertiary professionals’ needs. We grasp the unique needs and expectations of our partners in the realm. By cooperating with our experts, your company get access to the finest rates and stock of premium products like A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA from Schneider Electric at a value-for-money price. Registered customers enjoy exclusive discounts and preferred assistance.

Get started and buy A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA at our reliable and easy-to-use online store. Don't delay in making this savvy pick that ensures the supreme quality and caters to the customized prerequisites of customers like yourselves.

If you encounter any doubts or concerns about A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA or any other Schneider Electric products, call us or refer to our FAQs section below. We have curated answers to routine queries to aid you further in making an considered decision about industrial and tertiary electrical components.

Remember, A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA from Schneider Electric is trustworthy, reasonable, and better to other producers in the iDPN category. Don't hesitate to make it a part of your installation immediately. Shop with confidence at baltele.eu, your preferred supplier for all your iDPN.

In our Baltelec.eu internet store you will uncover Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA - A9D42625 worth 69.81 €, which will be a trustworthy and new solution for your preferences. This commodity is invented by the Schneider Electric brand using the state-of-the-art technologies and conforms to the optimal standards of defense and workmanship. We extend commodities from the iDPN category that fuse longevity and utility, which is an excellent possibility for various purposes. Despite of whether you demand apparatus for small fabrication or for qualified industrial implementation, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA will be a secure aide in your task.

Baltelec strives to make the acquiring process as effortless and fast as achievable for our shoppers. We offer detailed narratives and high-quality shots of Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA so that you can make an knowledgeable choice. A team of maestros is always ready to help you with any inquiries in the iDPN section involved to the deciding and use of wares. We are confident that Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA will meet your hopes and become an key element of your inventory for just 69.81 €.

Common Questions about A9D42625 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 300mA:
