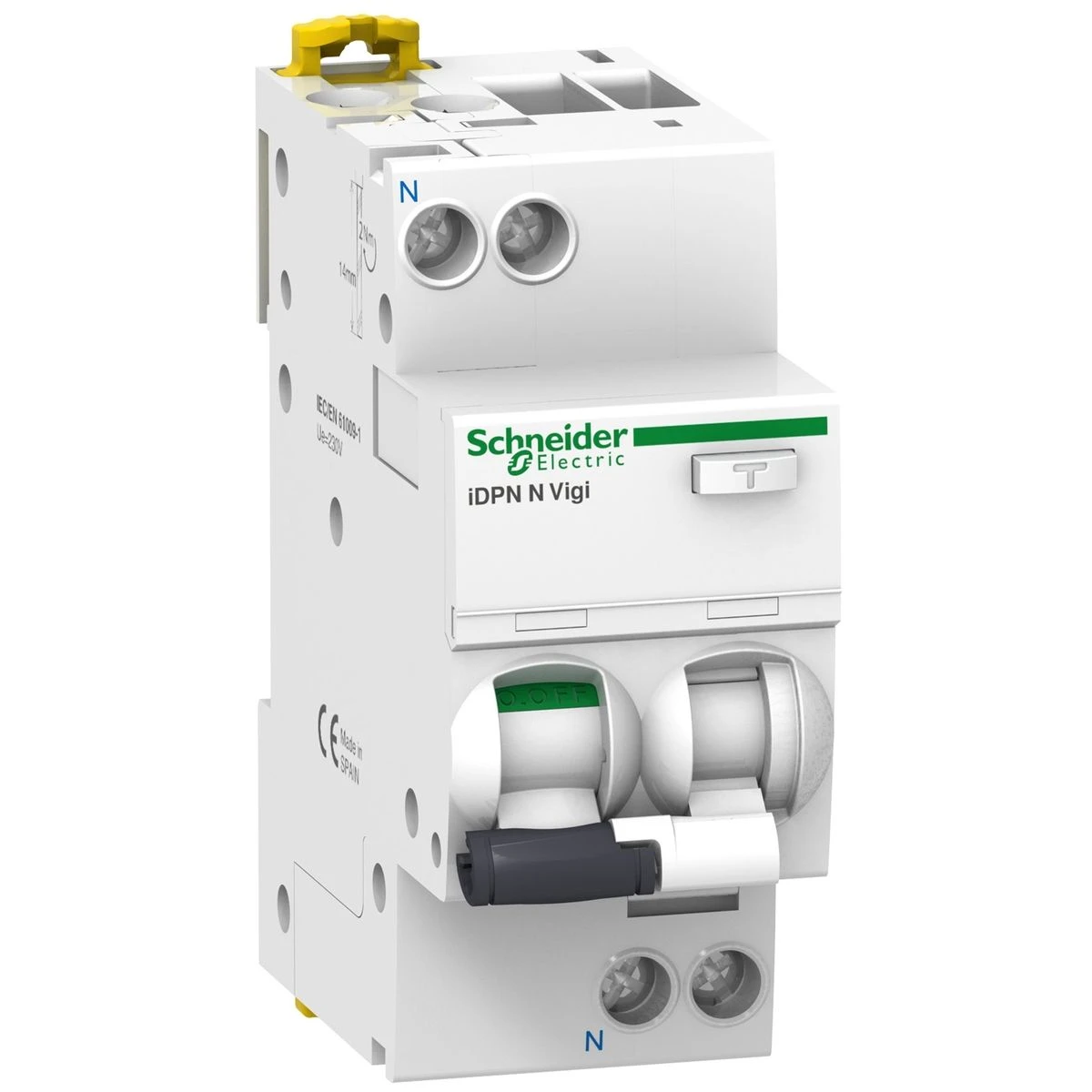

A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA - Schneider Electric

Pending restock
A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA - Schneider Electric - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA - Schneider Electric - 0
A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA - Schneider Electric
92,79 € excl. VAT
115,06 € incl. VAT
Text About:
Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA - Schneider Electric
115,06 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name iDPN N Vigi
Device location in system Outgoer
Range Acti9
Earth-leakage protection class Type A
Neutral position Left
Number of protected poles 1
Earth-leakage protection time delay Instantaneous
Earth-leakage sensitivity 300 mA
Product Name Acti9 iDPN Vigi
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 400 V AC 50 Hz
Complementary
9 mm pitches 4
[in] rated current 13 A
[ue] rated operational voltage 220...240 V AC 50 Hz
[ics] rated service breaking capacity 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
Control type Toggle
Product certifications VDE
KEMA
Connection pitch 9 mm between phase and neutral
Handle front plate colour 85 mm
Product or component type Residual current breaker with overcurrent protection (RCBO)
tightening torque 2 N.m top or bottom
[uimp] rated impulse withstand voltage 4 kV
Comb busbar and distribution block compatibility Top or bottom: YES
Connections - terminals Single terminal top or bottom 1…16 mm² rigid
Single terminal top or bottom 1…10 mm² flexible
Single terminal top or bottom 1…10 mm² flexible with ferrule
Locking options description Padlocking device
Contact position indication Yes
Device application Distribution
width (w) 36 mm
network frequency 50 Hz
Colour White
Local signalling ON, OFF, fault trip
Mounting mode Clip-on
Net weight 125 g
wire stripping length 15 mm for top or bottom connection
Earth-leakage protection Integrated
Mounting support DIN rail
depth 73 mm
mechanical durability 20000 cycles
electrical durability 20000 cycles
magnetic trip limit 5...10 x In
Network type AC
Pollution degree 3
Limitation class 3 conforming to EN/IEC 61009-2-1
residual current tripping technology Voltage independent
Suitability for isolation Yes conforming to EN/IEC 60947-2
Poles description 1P + N
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
ambient air temperature for operation -25…60 °C
electromagnetic compatibility 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
overvoltage category III conforming to IEC 60364
standards EN/IEC 61009-2-1
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA is designed to accommodate the conditions of business buyers, such as installers, wiring experts, service providers, and original producers. A9D42613 grants outstanding performance and worth for consultants in the electrotechnical industry. This Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA and other iDPN from Schneider Electric can be obtained at the most advantageous pricing and procurement time through BaltElec online store, a reputable wholesaler meeting the needs of technicians in their gathering needs.

Technicians who have adopted Schneider Electric iDPN have habitually applauded the manufacturer’s solidity. It has been mentioned that the exceptional energy-efficiency of A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA extends to a collection of implementations. Its superior specifications make it optimal to meet diverse demands. Your developed solution will excel in quality, energy-efficiency and price.

Our professionals concentrates in catering industrial and tertiary professionals’ needs. We get the customized criteria and desires of our customers in the industry. By joining forces with BALTELEC, your business secure access to the top pricing and supply timeline of superior products like A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA from Schneider Electric at cost-effective price. Our registered accounts receive additional savings and first-class attention.

Don't wait and get A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA at our risk-free and straightforward webshop. Don't delay in making this prudent selection that confirms the top quality and achieves the personalized specifications of purchasers like your outfit.

When you have any issues or concerns about A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA or any other Schneider Electric products, drop us a line or refer to our Information center section below. We have consolidated answers to standard matters to back you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, A9D42613 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA from Schneider Electric is steady, affordable, and premier to market challengers in the iDPN category. Make it a part of your installation now. Get at Baltelec webstore, your faithful dealer for all your iDPN.

In our Baltelec.eu digital store you will uncover Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA - A9D42613 worth 113.20 €, which will be a sure and cutting-edge solution for your necessities. This product is designed by the Schneider Electric brand using the latest technologies and meets the highest standards of defense and efficiency. We propose commodities from the iDPN category that merge endurance and utility, which is an superior alternative for various tasks. Independent of whether you necessitate apparatus for small output or for adept industrial use, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA will be a constant assistant in your job.

Baltelec attempts to make the purchasing process as simple and fast as workable for our clients. We offer detailed descriptions and high-quality depictions of Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA so that you can make an aware choice. A team of pros is always ready to help you with any inquiries in the iDPN section linked to the nomination and use of commodities. We are sure that Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 13A, C curve, 6000A, A type, 300mA will meet your criteria and become an vital element of your device for just 113.20 €.
