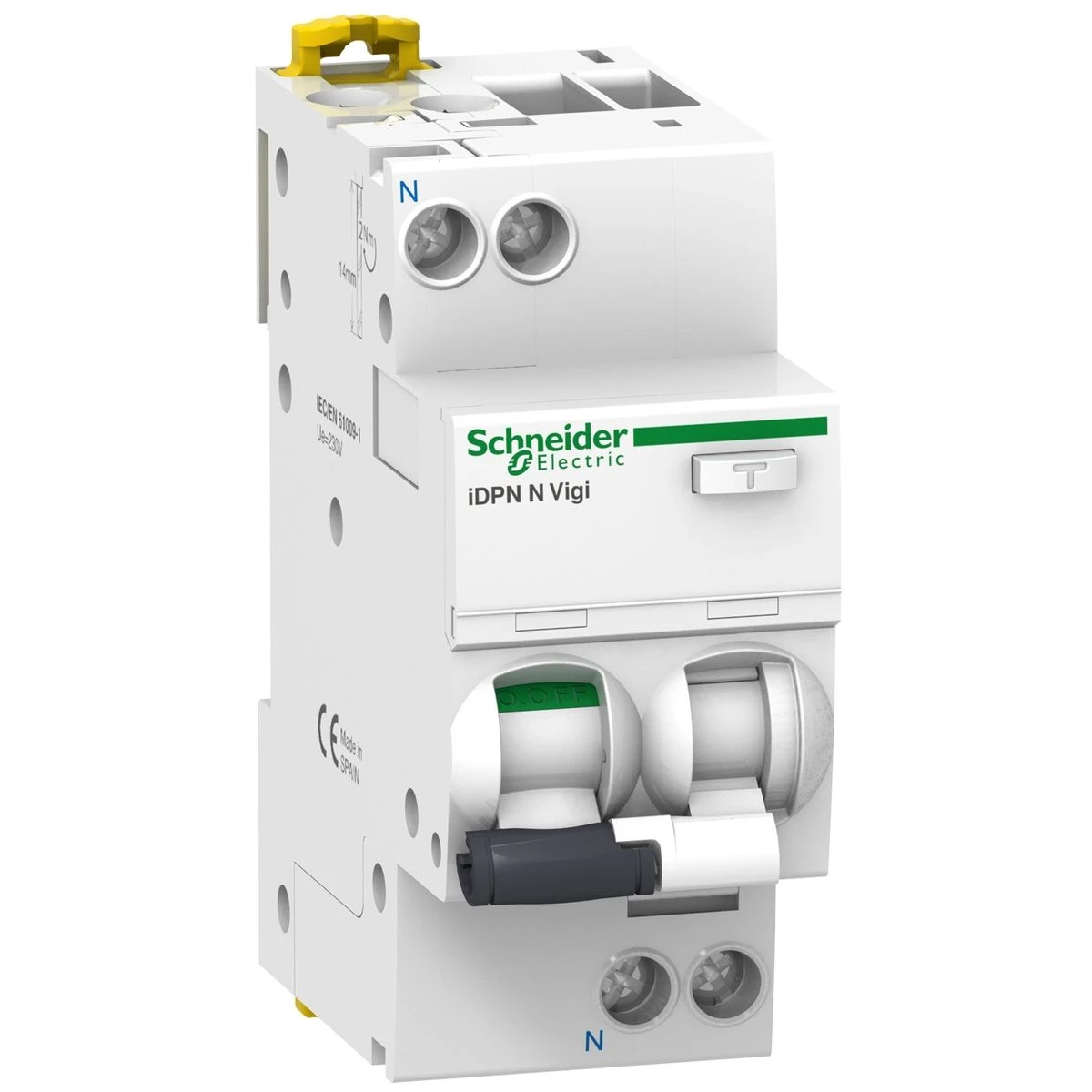

A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA - Schneider Electric

Pending restock
A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA - Schneider Electric - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA - Schneider Electric - 0
A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA - Schneider Electric
121,19 € excl. VAT
150,27 € incl. VAT
Text About:
Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA - Schneider Electric
150,27 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name iDPN N Vigi
Device location in system Outgoer
Range Acti9
Earth-leakage protection class Type A
Neutral position Left
Number of protected poles 1
Earth-leakage protection time delay Instantaneous
Earth-leakage sensitivity 10 mA
Product Name Acti9 iDPN Vigi
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 400 V AC 50 Hz
Complementary
9 mm pitches 4
[in] rated current 16 A
[ue] rated operational voltage 220...240 V AC 50 Hz
[ics] rated service breaking capacity 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
Control type Toggle
Product certifications VDE
Connection pitch 9 mm between phase and neutral
Handle front plate colour 85 mm
Product or component type Residual current breaker with overcurrent protection (RCBO)
tightening torque 2 N.m top or bottom
[uimp] rated impulse withstand voltage 4 kV
Comb busbar and distribution block compatibility Top or bottom: YES
Connections - terminals Single terminal top or bottom 1…16 mm² rigid
Single terminal top or bottom 1…10 mm² flexible
Single terminal top or bottom 1…10 mm² flexible with ferrule
Locking options description Padlocking device
Contact position indication Yes
Device application Distribution
width (w) 36 mm
network frequency 50 Hz
Colour White
Local signalling ON, OFF, fault trip
Mounting mode Clip-on
Net weight 125 g
wire stripping length 15 mm for top or bottom connection
Earth-leakage protection Integrated
Mounting support DIN rail
depth 73 mm
mechanical durability 20000 cycles
electrical durability 20000 cycles
magnetic trip limit 5...10 x In
Network type AC
Pollution degree 3
Limitation class 3 conforming to EN/IEC 61009-2-1
residual current tripping technology Voltage independent
Suitability for isolation Yes conforming to EN/IEC 60947-2
Poles description 1P + N
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
ambient air temperature for operation -25…60 °C
electromagnetic compatibility 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
overvoltage category III conforming to IEC 60364
standards EN/IEC 61009-2-1
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA is produced to fulfill the necessities of professional purchasers, such as panel builders, electrical fitters, facility management firms, and Industry suppliers. A9D02616 supplies exceptional quality and asset for professionals in the power systems industry. This Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA and other iDPN from Schneider Electric can be bought at the most economical price and turnaround time through BALTELEC website, a distinguished wholesaler supporting experts in their provision needs.

Consumers who have procured Schneider Electric iDPN have invariably commended the creator's durability. It has been remarked that the superlative functionality of A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA extends to a wide range of deployments. Its excellent elements make it right choice for different applications. Your developed solution will excel in quality, energy-efficiency and price.

Our team dedicates in providing for industrial and tertiary professionals’ needs. We understand the individual standards and demands of our customers in the sector. By partnering with our professionals, our partners gain access to the top rates and stock of the top-of-the-line products like A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA from Schneider Electric at a budget-friendly price. Registered users take pleasure in additional savings and expedited requests handling.

Act now and purchase A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA at our verified and accessible e-commerce site. Don't delay in making this astute action that certifies the greatest quality and complies with the customized requirements of suppliers like yourselves.

In the event of any problems or concerns about A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA or any other Schneider Electric products, send us a note or refer to our Frequently Asked Queries section below. We have brought together answers to usual questions to help you further in making an considered decision about industrial and tertiary electrical components.

Remember, A9D02616 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA from Schneider Electric is secure, affordable, and superior to other producers in the iDPN category. Make it a part of your configuration straight away. Order at Baltelec e-shop, your faithful dealer for all your Schneider Electric.

In our Baltelec.eu web store you will discover Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA - A9D02616 worth 147.85 €, which will be a faithful and contemporary solution for your wishes. This object is created by the Schneider Electric brand using the advanced technologies and meets the maximum standards of well-being and competence. We furnish items from the iDPN category that fuse robustness and usefulness, which is an outstanding alternative for various functions. Irrespective of whether you demand machinery for small construction or for specialized industrial use, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA will be a steadfast aid in your assignment.

Baltelec strives to make the buying process as comfortable and fast as workable for our users. We offer detailed portrayals and high-quality snapshots of Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA so that you can make an informed choice. A team of pros is always ready to help you with any questions in the iDPN section affiliated to the determining and use of items. We are certain that Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 10mA will meet your requirements and become an vital element of your hardware for just 147.85 €.

Frequently Raised Questions about A9D02616:
