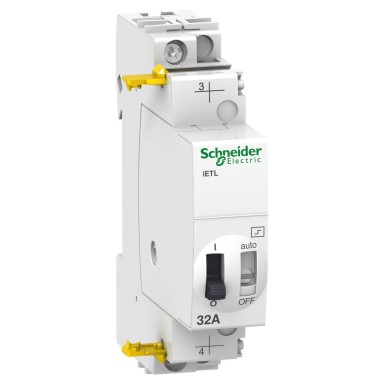

A9C32836 - Acti9, iETL extension for impulse relay 32A 1NO 230...240VAC 110VDC 50-60Hz - Schneider Electric

Expected in 2-4 weeks EAN: 3606480092039

EAN: 3606480092039

28,78 € excl. VAT

35,11 € incl. VAT

Text About:

Acti9, iETL extension for impulse relay 32A 1NO 230...240VAC 110VDC 50-60Hz - Schneider Electric

In cart

35,11 €

SPECIFICATIONS

Main

product range Acti9

[uc] control circuit voltage 230...240 V CA 50/60 Hz
110 V CC

name of the device iETL iTL 32

type of product or equipment Extension pour relais d'impulsion

composition of the poles 1 "F"

use of the relay Contrôle à distance

Complementary

9 mm pitches 2

associated accessories ITL 32A

[in] rated operational current 32 A

[ue] rated operational voltage 415 V CA 50/60 Hz

power start current 19 VA

range compatibility Acti 9 (Acti 9 iTL) iTL

control signal type Impulsion

Handle front plate colour 60 mm

pulse duration 50 ms

mode d'installation Fixe, sur le côté droit de TL

electrical life AC-21: 50000 cycle
AC-22: 20000 cycle

connection mode Borne du type à cage - <= 10 mm²

width (w) 18 mm

network frequency 50/60 Hz

switching frequency 5 commutations/minute

Colour Blanc

voltage indication Indication ON/OFF

type of remote control Bouton-poussoir lumineux 3 mA

depth 84 mm

mounting bracket Rail DIN symétrique 35 mm

Network type CA

order type Par maneton
Contrôle à distance

Poles description 1P

Environment

degree of pollution 3

ip degree of protection IP20 se conformer à CEI 60529

standards EN 669-1
EN 669-2-2

relative humidity 95 % à 55 °C

operating ambient air temperature -20…50 °C

storage room temperature -40…70 °C

sound pressure 60 dB

tropicalization 2 se conformer à CEI 60068-1
