A9C23712 - Acti9, iCT manually operated contactor 16A 2NO 230-240VAC 50Hz - Schneider Electric

Pending restock EAN: 3606480097140

EAN: 3606480097140

23,48 € excl. VAT

29,12 € incl. VAT

Text About:

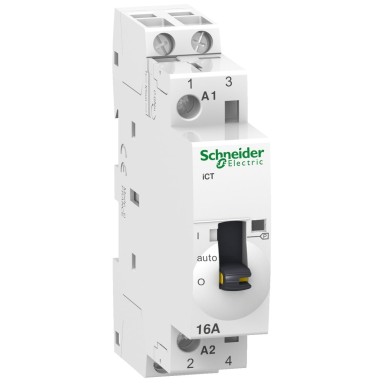

Acti9, iCT manually operated contactor 16A 2NO 230-240VAC 50Hz - Schneider Electric

BaltElec stock

Out of stock

Ships in 24–48h

Supplier Warehouse

In stock

Available, 5–7 days wait

In cart

29,12 €

SPECIFICATIONS

Main

product range Acti9

[uc] control circuit voltage 230...240 V CA 50 Hz

name of the device iCT

type of product or equipment Contacteur

composition of the poles 2F

Product Name Acti9 iCT

[ui] rated insulation voltage 500 V CA 50/60 Hz

poles 2P

Complementary

9 mm pitches 2

associated accessories IACTs

[ie] rated operational current 16 A AC-7A
6 A AC-7B

[ue] rated operational voltage 250 V CA 50 Hz

application Moteur-chauffage-éclairage

compatibility code ICT

control signal type Maintenu

Handle front plate colour 81 mm

tightening torque 0,8 N.m télécommande :
0,8 N.m circuit de puissance :

[uimp] rated impulse withstand voltage 4 kV

market segment Résidentiel
Petit commerce

average fuel consumption when going 2,7 VA

average consumption on call going 9,2 VA

mode d'installation Encliquetable

electrical life 100000 cycle CEI/EN 61095 16 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 6 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B

connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 1…4 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 1,5…6 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple

mechanical endurance 1000000 cycle

width (w) 18 mm

network frequency 50 Hz

switching frequency 100 commutations/jour

Colour Blanc

maximum power 1,2 W à 250 V CA

voltage indication Indicateur d'action

depth 60 mm

mounting bracket Rail DIN symétrique 35 mm

Network type CA

order type Commande manuelle et à distance

Environment

degree of pollution 2

ip degree of protection IP20

operating altitude 2000 m

standards CEI/EN 61095

relative humidity 95 % à 55 °C

thermal dissipation 0,9 W

operating ambient air temperature -5…60 °C

storage room temperature -40…70 °C

sound pressure 30 dB

tropicalization 2 se conformer à EN 60947-4-1
2 se conformer à EN 61095
2 se conformer à CEI 1095
