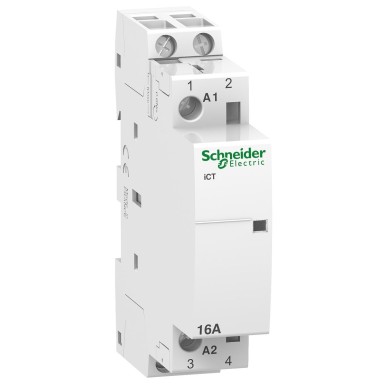

A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz - Schneider Electric

Expected in 2-4 weeks EAN: 3606480097058
A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz - Schneider Electric - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz - Schneider Electric - 0
EAN: 3606480097058
A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz - Schneider Electric
21,78 € excl. VAT
26,57 € incl. VAT
Text About:
Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz - Schneider Electric
26,57 €
SPECIFICATIONS
Main
product range Acti9
[uc] control circuit voltage 230...240 V CA 50 Hz
name of the device iCT
type of product or equipment Contacteur
composition of the poles 2F
Product Name Acti9 iCT
[ui] rated insulation voltage 500 V CA 50 Hz
poles 2P
Complementary
9 mm pitches 2
associated accessories IACTs
[ie] rated operational current 16 A AC-7A
6 A AC-7B
[ue] rated operational voltage 250 V CA 50 Hz
application Moteur-chauffage-éclairage
compatibility code ICT
control signal type Maintenu
Handle front plate colour 81 mm
tightening torque 0,8 N.m télécommande :
0,8 N.m circuit de puissance :
[uimp] rated impulse withstand voltage 4 kV
market segment Petit commerce
Résidentiel
average fuel consumption when going 2,7 VA
mode d'installation Encliquetable
electrical life 100000 cycle CEI/EN 61095 16 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 6 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B
connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 1…4 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 1,5…6 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple
mechanical endurance 1000000 cycle
width (w) 18 mm
network frequency 50 Hz
switching frequency 100 commutations/jour
Colour Blanc
maximum power 1,2 W à 250 V CA
voltage indication Indicateur d'action
depth 68,5 mm
mounting bracket Rail DIN symétrique 35 mm
Network type CA
calling power goes 9,2 VA
order type Contrôle à distance
Environment
degree of pollution 2
ip degree of protection IP20 conforming to CEI 60529
IP40 (boîtier modulaire) conforming to CEI 60529
operating altitude 2000 m
operating ambient temperature -5…60 °C
standards CEI/EN 61095
relative humidity 95 % à 55 °C
thermal dissipation 0,9 W à 50/60 Hz
storage room temperature -40…70 °C
sound pressure 30 dB
tropicalization 2 se conformer à CEI 60068-1
2
About this product

The A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz is conceived to match the requirements of professional purchasers, such as control panel builders, electrical technicians, maintenance service providers, and original manufacturers. A9C22712 furnishes superb reliability and advantages for consultants in the power systems industry. This Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz and other iCT from Schneider Electric are on offer at the lowest cost and shipment duration through BaltElec, a distinguished merchant supplying consultants in their collection needs.

Professionals who have procured Schneider Electric iCT have repeatedly praised the maker's robustness. It has been outlined that the exceptional performance of A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz extends to a spectrum of use. Its top-notch specifications make it right choice to satisfy a wide array of needs, ensuring your industrial, tertiary and automation projects success.

BaltElec concentrates in fulfilling industrial and tertiary professionals’ needs. We appreciate the particular criteria and standards of our stakeholders in the domain. By joining forces with us, your company gain access to the optimal fees and supply timeline of top-tier products like A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz from Schneider Electric at a value-for-money price. Account holders enjoy more savings and dedicated support.

Start immediately and purchase A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz at our protected and intuitive virtual storefront. Don't delay in making this savvy option that ensures the ultimate quality and caters to the individual demands of traders like your team.

Should you experience any matters or concerns about A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz or any other Schneider Electric products, connect with us or refer to our FAQs section below. We have brought together answers to routine requests for information to assist you further in making an educated decision about industrial and tertiary electrical components.

Remember, A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz from Schneider Electric is dependable, wallet-friendly, and high-quality to other manufacturers in the iCT category. Feel free to make it a part of your apparatus without delay. Get at Baltelec webstore, your trusted partner for all your professional electrical equipment and automation needs.

In our Baltelec.eu electronic store you will detect Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz - A9C22712 worth 26.57 €, which will be a safe and cutting-edge solution for your desires. This commodity is formulated by the Schneider Electric brand using the modern technologies and complies with the pinnacle standards of safety and efficiency. We deliver goods from the iCT category that blend longevity and usefulness, which is an excellent option for various tasks. Regardless of whether you want equipment for small generation or for competent industrial operation, Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz will be a faithful aid in your work.

Baltelec works to make the purchasing process as convenient and fast as workable for our clients. We offer detailed accounts and high-quality portrayals of Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz so that you can make an well-informed choice. A team of specialists is always ready to help you with any uncertainties in the iCT section pertaining to the determining and use of articles. We are persuaded that Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz will meet your requirements and become an needed element of your device for just 26.57 €.

Common Questions about Schneider Electric A9C22712:

  • What are the advantages of ordering A9C22712 from Baltelec.eu online store?

    When you buy Schneider Electric Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz from BALTELEC, you will get genuine quality Schneider Electric iCT products at the best prices and lead time. Furthermore, returning customerstake pleasure in additional savings and preferred assistance.

  • How do I know if A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz meets the specification of my contract?

    To ensure that Schneider Electric Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz is appropriate for your use case, we offer detailed details pertaining to product's specs, technical characteristics, and applicable standards. You can access this data on the product page of the product name. If you seek additional help, our customer support team stands ready to assist you in reaching an educated decision.

  • What guarantee coverage is provided for Schneider Electric A9C22712?

    BALTELEC is committed to the reliability of the items we deliver. The standard guarantee coverage for Schneider Electric iCT including Schneider Electric Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz is 1 year. Nonetheless, it depends based on the specific product, category, and may even be extended. You can find comprehensive warranty information on the A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz product page or by contacting our customer service representatives.

  • Do you offer global shipping for Schneider Electric A9C22712 including other Schneider Electric products?

    Certainly. In addition to serving Estonia, Latvia, Lithuania and other European Union countries, we provide global shipping for A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz. Please note that delivery options, costs, and delivery times may vary based on the shipping location. For bulk purchases, feel free to reach out to BaltElec sales staff.

  • Do Schneider Electric MBC offered by BaltElec meet international standards for security and quality?

    Yes. All Schneider Electric products provided at BALTELEC web store conform to global standards such as IEC 60898-1 standard and carry the CE certification. Such norms assure that the items meet strict security, technical, reliability, and functional criteria.

  • Can BALTELEC offer guidance on incorporating renewable energy solutions, such as solar energy systems or wind energy converters, into my projects?

    Absolutely!  Baltelec.eu website recognizes the relevance of clean energy integration within community. Our group of professionals can assist you in selecting the appropriate Schneider Electric items, to incorporate them into your renewable energy solutions}. We can offer guidance on integrating solar power systems, wind power converters, and alternative eco-friendly options to maximize power generation and efficiency.

  • Are there eco-friendly options offered within the iCT category to promote energy conservation efforts?

    Certainly! BaltElec offers numerous energy-efficient solutions in the category of iCT that are in line with environmental sustainability objectives. Our top-quality Schneider Electric products, like the A9C22712 - Acti9, iCT contactor 16A 2NO 230...240VAC 50Hz, are designed with energy efficiency in mind. By using these products into your electrical system, you can optimize energy usage and minimize environmental impact. Additionally, we present attractive pricing for our eco-friendly Schneider Electric products,, making them an budget-friendly choice for promoting sustainability.

  • Are A9C22712 sold by BaltElec e-shop original?

    Yes, we exclusively sell authentic Schneider Electric products, including but not limited to A9C22712. We source our products only through authorized distribution channels to ensure their authenticity and excellent performance.
