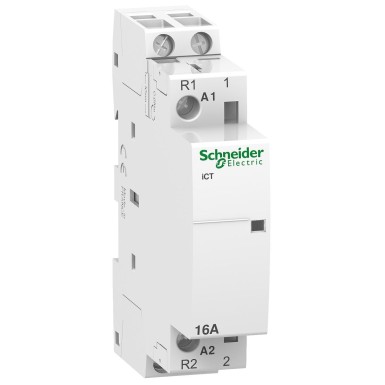

A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz - Schneider Electric

Expected in 2-4 weeks EAN: 3606480096969
A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz - Schneider Electric - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz - Schneider Electric - 0
EAN: 3606480096969
A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz - Schneider Electric
33,04 € excl. VAT
40,31 € incl. VAT
Text About:
Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz - Schneider Electric
40,31 €
SPECIFICATIONS
Main
product range Acti9
[uc] control circuit voltage 24 V CA 50 Hz
name of the device iCT
type of product or equipment Contacteur
composition of the poles 1F+1O
Product Name Acti9 iCT
[ui] rated insulation voltage 500 V CA 50/60 Hz
poles 2P
Complementary
9 mm pitches 2
associated accessories IACTs
[ie] rated operational current 16 A AC-7A
6 A AC-7B
[ue] rated operational voltage 250 V CA 50 Hz
application Moteur-chauffage-éclairage
compatibility code ICT
control signal type Maintenu
Handle front plate colour 81 mm
tightening torque 0,8 N.m télécommande :
0,8 N.m circuit de puissance :
[uimp] rated impulse withstand voltage 4 kV
market segment Résidentiel
Petit commerce
average fuel consumption when going 3,8 VA
mode d'installation Encliquetable
electrical life 100000 cycle CEI/EN 61095 16 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 6 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B
connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 1…4 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 1,5…6 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple
mechanical endurance 1000000 cycle
width (w) 18 mm
network frequency 50 Hz
switching frequency 100 commutations/jour
Colour Blanc
maximum power 1,3 W à 250 V CA
voltage indication Indicateur d'action
depth 60 mm
mounting bracket Rail DIN symétrique 35 mm
Network type CA
calling power goes 15 VA
order type Contrôle à distance
Environment
degree of pollution 2
ip degree of protection IP20
operating altitude 2000 m
operating ambient temperature -5…60 °C
standards CEI/EN 61095
relative humidity 95 % à 55 °C
thermal dissipation 1,3 W
storage room temperature -40…70 °C
sound pressure 30 dB
tropicalization 2 se conformer à EN 60947-4-1
2 se conformer à EN 61095
2 se conformer à CEI 1095
About this product

The A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz is designed to meet the prerequisites of sector experts, such as switchboard fabricators, electricians, service organizations, and original producers. A9C22115 delivers superior quality and gain for professionals in the energy management industry. This Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz and other iCT from Schneider Electric are procurable at the finest pricing and shipping time through BaltElec online store, a dependable distributor helping contractors in their gathering needs.

Technicians who have purchased Schneider Electric iCT have invariably complimented the brand's robustness. It has been mentioned that the superior functionality of A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz extends to a broad spectrum of implementations. Its exceptional aspects make it proper pick for diverse needs, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our team focuses in meeting industrial and tertiary professionals’ needs. We get the individual specifications and preferences of our stakeholders in the market. By collaborating with our experts, your enterprise obtain access to the superior pricing and stock of premium products like A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz from Schneider Electric at a reasonable price. Registered users receive added discounts and priority service.

Do not hesitate and purchase A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz at our risk-free and convenient platform. Don't delay in making this sensible plan that ensures the ultimate quality and fulfills the individual prerequisites of contractors like your outfit.

In the event of any uncertainties or concerns about A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz or any other Schneider Electric products, drop us a line or refer to our Frequently Asked Queries section below. We have collected answers to habitual doubts to support you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz from Schneider Electric is consistent, value-priced, and outstanding to other producers in the iCT category. Don't hesitate to make it a part of your solution without delay. Get at baltele.eu, your consistent provider for all your professional electrical equipment and automation needs.

In our Baltelec.eu internet store you will come across Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz - A9C22115 worth 40.31 €, which will be a dependable and up-to-date solution for your necessities. This commodity is produced by the Schneider Electric brand using the freshest technologies and complies with the pinnacle standards of well-being and efficiency. We extend items from the iCT category that merge longevity and efficacy, which is an excellent decision for various intents. Regardless of whether you desire hardware for small formation or for professional industrial implementation, Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz will be a faithful associate in your job.

Baltelec aims to make the buying process as simple and fast as viable for our users. We offer detailed narratives and high-quality illustrations of Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz so that you can make an enlightened choice. A team of virtuosos is always ready to help you with any enquiries in the iCT section relevant to the choice and use of commodities. We are certain that Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz will meet your demands and become an vital element of your tools for just 40.31 €.

Popular Questions about A9C22115 - Acti9, iCT contactor 16A 1NO 1NC 24VAC 50Hz:
