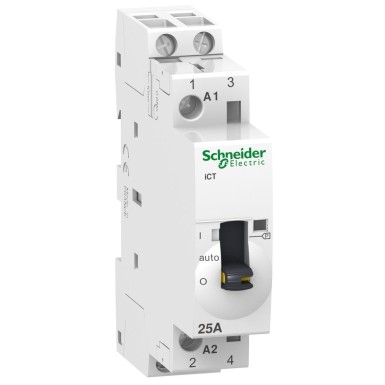

A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz - Schneider Electric

Expected in 2-4 weeks EAN: 3606480375217
A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz - Schneider Electric - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz - Schneider Electric - 0
EAN: 3606480375217
A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz - Schneider Electric
32,44 € excl. VAT
39,57 € incl. VAT
Text About:
Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz - Schneider Electric
39,57 €
SPECIFICATIONS
Main
product range Acti9
[uc] control circuit voltage 24 V CA 50 Hz
name of the device iCT
type of product or equipment Contacteur
composition of the poles 2F
Product Name Acti9 iCT
[ui] rated insulation voltage 500 V CA 50/60 Hz
poles 2P
Complementary
9 mm pitches 2
associated accessories IACTs
IACTp
IACTc
IATEt
[ie] rated operational current 25 A AC-7A
8,5 A AC-7B
[ue] rated operational voltage 250 V CA 50 Hz
application Moteur-chauffage-éclairage
compatibility code ICT
control signal type Maintenu
Handle front plate colour 81 mm
tightening torque 0,8 N.m télécommande :
0,8 N.m circuit de puissance :
[uimp] rated impulse withstand voltage 4 kV
market segment Résidentiel
Petit commerce
average fuel consumption when going 3,8 VA
mode d'installation Encliquetable
electrical life 100000 cycle CEI/EN 61095 25 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 8,5 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B
connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 1…4 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 1,5…6 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple
mechanical endurance 1000000 cycle
width (w) 18 mm
network frequency 50 Hz
switching frequency 100 commutations/jour
Colour Blanc
maximum power 1,3 W à 250 V CA
voltage indication Indicateur d'action
depth 60 mm
mounting bracket Rail DIN symétrique 35 mm
Network type CA
calling power goes 15 VA
order type Commande manuelle et à distance
Environment
degree of pollution 2
ip degree of protection IP20
operating altitude 2000 m
operating ambient temperature -5…60 °C
standards CEI/EN 61095
relative humidity 95 % à 55 °C
thermal dissipation 1,3 W à 50/60 Hz
storage room temperature -40…70 °C
sound pressure 30 dB
tropicalization 2 se conformer à EN 60947-4-1
2 se conformer à EN 61095
2 se conformer à CEI 1095
About this product

The A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz is devised to accommodate the desires of industry experts, such as panel manufacturers, cable technicians, management services, and Original Equipment manufacturers. A9C21132 delivers first-rate performance and utility for experts in the power systems industry. This Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz and other iCT from Schneider Electric can be bought at the unbeatable price and procurement time through BALTELEC website, a dependable reseller attending to industry experts in their purchasing needs.

Engineers who have acquired Schneider Electric iCT have frequently extolled the creator's soundness. It has been specified that the excellent functionality of A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz extends to a extensive scope of scenarios. Its premium traits make it well-suited solution for assorted uses, assuring the success of your industrial, tertiary, and automation ventures.

BALTELEC devotes in fulfilling industrial and tertiary professionals’ needs. We get the customized needs and preferences of our partners in the market. By partnering with our experts, your enterprise get access to the top price lists and supply timeline of top-tier products like A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz from Schneider Electric at a budget-friendly price. Professional buyers with Baltelec account take advantage of further discounts and exclusive assistance.

Take action and obtain A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz at our well-established and streamlined online portal. Don't delay in making this savvy pick that confirms the superior quality and complies with the special expectations of vendors like your team.

When you have any concerns or concerns about A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz or any other Schneider Electric products, communicate with us or refer to our Help section section below. We have provided answers to recurring requests for information to back you further in making an considered decision about industrial and tertiary electrical components.

Remember, A9C21132 - Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz from Schneider Electric is safe, cost-effective, and high-quality to opposing companies in the iCT category. Make it a part of your solution right now. Take advantage of at Baltelec e-shop, your steady distributor for all your Schneider Electric.

In our Baltelec.eu cyber store you will discover Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz - A9C21132 worth 39.57 €, which will be a reliable and up-to-date solution for your wishes. This thing is engineered by the Schneider Electric brand using the latest technologies and conforms to the top standards of reliability and efficiency. We deliver objects from the iCT category that integrate resilience and operability, which is an superb option for various applications. In defiance of whether you require apparatus for small generation or for professional industrial implementation, Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz will be a steadfast assistant in your task.

Baltelec works to make the shopping process as comfortable and fast as realizable for our buyers. We offer detailed descriptions and high-quality visuals of Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz so that you can make an aware choice. A team of experts is always ready to help you with any inquiries in the iCT section relevant to the choice and use of articles. We are convinced that Acti9, iCT manually operated contactor 25A 2NO 24VAC 50Hz will meet your requirements and become an needed element of your gear for just 39.57 €.
