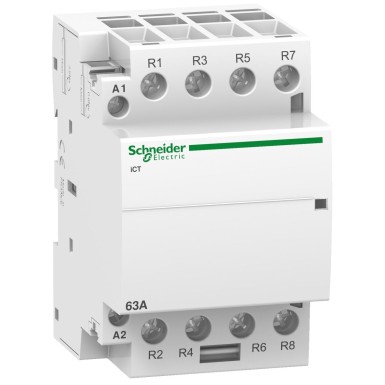

A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz - Schneider Electric

Expected in 2-4 weeks EAN: 3606480375163
A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz - Schneider Electric - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz - Schneider Electric - 0
EAN: 3606480375163
A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz - Schneider Electric
130,11 € excl. VAT
161,34 € incl. VAT
Text About:
Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz - Schneider Electric
161,34 €
SPECIFICATIONS
Main
product range Acti9
[uc] control circuit voltage 220...240 V CA 50 Hz
name of the device iCT
type of product or equipment Contacteur
composition of the poles 4 "O"
Product Name Acti9 iCT
[ui] rated insulation voltage 500 V CA 50/60 Hz
poles 4P
Complementary
9 mm pitches 6
associated accessories IACTp
IACTs
IACTc
IATEt
[ie] rated operational current 63 A AC-7A
20 A AC-7B
[ue] rated operational voltage 400 V CA 50 Hz
application Moteur-chauffage-éclairage
compatibility code ICT
control signal type Maintenu
Handle front plate colour 85 mm
tightening torque 0,8 N.m télécommande :
3,5 N.m circuit de puissance :
[uimp] rated impulse withstand voltage 4 kV
market segment Petit commerce
Résidentiel
average fuel consumption when going 6,5 VA
mode d'installation Encliquetable
electrical life 100000 cycle CEI/EN 61095 63 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 20 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B
connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 6…16 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 6…25 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple
mechanical endurance 1000000 cycle
width (w) 54 mm
network frequency 50 Hz
switching frequency 100 commutations/jour
Colour Blanc
maximum power 2,1 W à 400 V CA
voltage indication Indicateur d'action
depth 60 mm
mounting bracket Rail DIN symétrique 35 mm
Network type CA
calling power goes 53 VA
order type Contrôle à distance
Environment
degree of pollution 2
ip degree of protection IP20
operating altitude 2000 m
standards CEI/EN 61095
relative humidity 95 % à 55 °C
thermal dissipation 2,1 W à 50/60 Hz
operating ambient air temperature -5…60 °C
storage room temperature -40…70 °C
sound pressure 30 dB
tropicalization 2 se conformer à EN 60947-4-1
2 se conformer à EN 61095
2 se conformer à CEI 1095
About this product

The A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz is formulated to respond to the requirements of specialized professionals, such as electrical installers, cable technicians, repair companies, and OEMs. A9C20867 provides remarkable reliability and worth for engineers in the control systems industry. This Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz and other iCT from Schneider Electric can be acquired at the finest pricing and procurement time through BALTELEC, a trustworthy purveyor catering to specialists in their supply needs.

Buyers who have selected Schneider Electric iCT have repeatedly approved the producer's dependability. It has been specified that the excellent workmanship of A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz extends to a spectrum of purposes. Its premium aspects make it appropriate for different applications. Your developed solution will excel in quality, energy-efficiency and price.

Our company commits in fulfilling industrial and tertiary professionals’ needs. We appreciate the specific criteria and standards of our buyers in the niche. By aligning with BALTELEC, your company access access to the top fees and delivery period of the top-of-the-line products like A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz from Schneider Electric at a budget-friendly price. Professional buyers with Baltelec account get exclusive discounts and top-tier service.

Move quickly and get A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz at our certified and user-friendly webshop. Don't delay in making this smart decision that promises the supreme quality and matches the targeted requests of vendors like your team.

If you encounter any doubts or concerns about A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz or any other Schneider Electric products, reach out to us or refer to our FAQ section section below. We have provided answers to typical uncertainties to assist you further in making an well-informed decision about industrial and tertiary electrical components.

Remember, A9C20867 - Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz from Schneider Electric is steady, economical, and outstanding to market challengers in the iCT category. Feel free to make it a part of your network at once. Take advantage of at BaltElec, your reliable source for all your professional electrical equipment and automation needs.

In our Baltelec.eu e-commerce store you will locate Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz - A9C20867 worth 158.74 €, which will be a steadfast and up-to-date solution for your necessities. This thing is constructed by the Schneider Electric brand using the advanced technologies and adheres to the optimal standards of reliability and effectiveness. We furnish merchandise from the iCT category that associate lastingness and usability, which is an first-rate election for various applications. Independent of whether you need equipment for small assembly or for skilled industrial exploitation, Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz will be a reliable aide in your job.

Baltelec strives to make the getting process as manageable and fast as achievable for our purchasers. We offer detailed narratives and high-quality portrayals of Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz so that you can make an aware choice. A team of masters is always ready to help you with any wonder in the iCT section linked to the preferment and use of materials. We are assured that Acti9, iCT contactor 63A 4NC 220...240VAC 50Hz will meet your wishes and become an significant element of your machinery for just 158.74 €.
