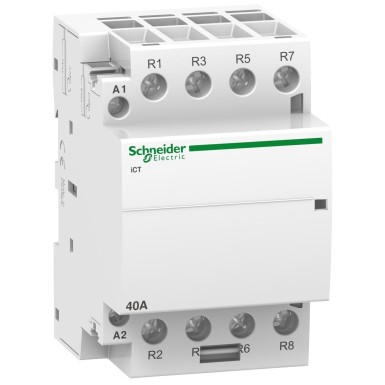

A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz - Schneider Electric

In stock EAN: 3606480375125
A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz - Schneider Electric - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz - Schneider Electric - 0
EAN: 3606480375125
A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz - Schneider Electric
91,48 € excl. VAT
113,43 € incl. VAT
Text About:
Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz - Schneider Electric
113,43 €
SPECIFICATIONS
Main
product range Acti9
[uc] control circuit voltage 220...240 V CA 50 Hz
name of the device iCT
type of product or equipment Contacteur
composition of the poles 4 "O"
Product Name Acti9 iCT
[ui] rated insulation voltage 500 V CA 50/60 Hz
poles 4P
Complementary
9 mm pitches 6
associated accessories IACTp
IACTc
IACTs
IATEt
[ie] rated operational current 40 A AC-7A
15 A AC-7B
[ue] rated operational voltage 400 V CA 50 Hz
application Moteur-chauffage-éclairage
compatibility code ICT
control signal type Maintenu
Handle front plate colour 85 mm
tightening torque 0,8 N.m télécommande :
3,5 N.m circuit de puissance :
[uimp] rated impulse withstand voltage 4 kV
market segment Petit commerce
Résidentiel
average fuel consumption when going 6,5 VA
average consumption on call going 53 VA
mode d'installation Encliquetable
electrical life 100000 cycle CEI/EN 61095 40 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 15 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B
connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 6…16 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 6…25 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple
mechanical endurance 1000000 cycle
width (w) 54 mm
network frequency 50 Hz
switching frequency 100 commutations/jour
Colour Blanc
maximum power 2,1 W à 400 V CA
voltage indication Indicateur d'action
depth 60 mm
mounting bracket Rail DIN symétrique 35 mm
Network type CA
order type Contrôle à distance
Environment
degree of pollution 2
ip degree of protection IP20
operating altitude 2000 m
standards CEI/EN 61095
relative humidity 95 % à 55 °C
thermal dissipation 2,1 W à 50/60 Hz
operating ambient air temperature -5…60 °C
storage room temperature -40…70 °C
sound pressure 30 dB
tropicalization 2 se conformer à EN 60947-4-1
2 se conformer à EN 61095
2 se conformer à CEI 1095
About this product

The A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz is created to address the necessities of professional purchasers, such as control panel builders, electrical installers, maintenance service providers, and original manufacturers. A9C20847 delivers outstanding standards and profit for planners in the electrical engineering industry. This Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz and other iCT from Schneider Electric are procurable at the most economical price and procurement time through BaltElec online store, a trustworthy provider attending to industry experts in their purchasing needs.

Clients who have adopted Schneider Electric iCT have habitually appreciated the producer's durability. It has been pointed out that the notable functionality of A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz extends to a multitude of deployments. Its elite elements make it suitable for multiple purposes, securing success in your industrial, tertiary, and automation endeavors.

Our team centers in catering industrial and tertiary professionals’ needs. We appreciate the customized demands and anticipations of our buyers in the industry. By teaming up with our company, our partners gain access to the finest price lists and delivery period of high-quality products like A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz from Schneider Electric at an affordable price. Baltelec account members take pleasure in extra discounts and top-tier service.

Start immediately and get A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz at our risk-free and streamlined virtual storefront. Don't delay in making this intelligent move that secures the greatest quality and covers the special prerequisites of contractors like your business.

If there are any queries or concerns about A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz or any other Schneider Electric products, contact us or refer to our Common Questions section below. We have provided answers to regular issues to serve you further in making an informed decision about industrial and tertiary electrical components.

Remember, A9C20847 - Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz from Schneider Electric is consistent, inexpensive, and premier to market challengers in the iCT category. Make it a part of your apparatus now. Acquire at Baltelec webstore, your reliable retailer for all your iCT.

In our Baltelec.eu e-commerce store you will find Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz - A9C20847 worth 111.60 €, which will be a dependable and contemporary solution for your desires. This article is fabricated by the Schneider Electric brand using the newest technologies and follows the optimal standards of reliability and productivity. We propose commodities from the iCT category that combine lastingness and usability, which is an fine choice for various functions. Independent of whether you call for gear for small fabrication or for competent industrial exploitation, Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz will be a safe adjunct in your endeavor.

Baltelec ventures to make the procuring process as comfortable and fast as realizable for our clients. We offer detailed accounts and high-quality shots of Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz so that you can make an well-informed choice. A team of maestros is always ready to help you with any questions in the iCT section relevant to the picking and use of merchandise. We are certain that Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz will meet your standards and become an indispensable element of your gear for just 111.60 €.

Common Queries about Schneider Electric Acti9, iCT contactor 40A 4NC 230...240VAC 50Hz:
