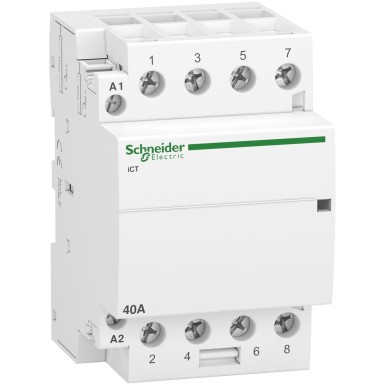

A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz - Schneider Electric

Pending restock EAN: 3606480088629
A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz - Schneider Electric - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz - Schneider Electric - 0
EAN: 3606480088629
A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz - Schneider Electric
48,82 € excl. VAT
60,53 € incl. VAT
Text About:
Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz - Schneider Electric
60,53 €
SPECIFICATIONS
Main
product range Acti9
[uc] control circuit voltage 220...240 V CA 50 Hz
name of the device iCT
type of product or equipment Contacteur
composition of the poles 4F
Product Name Acti9 iCT
[ui] rated insulation voltage 500 V CA 50/60 Hz
poles 4P
Complementary
9 mm pitches 6
associated accessories IACTp
IATEt
IACTc
IACTs
[ie] rated operational current 40 A AC-7A
15 A AC-7B
[ue] rated operational voltage 400 V CA 50 Hz
application Moteur-chauffage-éclairage
compatibility code ICT
control signal type Maintenu
Handle front plate colour 85 mm
tightening torque 0,8 N.m télécommande :
3,5 N.m circuit de puissance :
[uimp] rated impulse withstand voltage 4 kV
market segment Résidentiel
Petit commerce
average fuel consumption when going 6,5 VA
average consumption on call going 53 VA
mode d'installation Encliquetable
electrical life 100000 cycle CEI/EN 61095 40 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 15 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B
connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 6…16 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 6…25 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple
mechanical endurance 1000000 cycle
width (w) 54 mm
network frequency 50 Hz
switching frequency 100 commutations/jour
Colour Blanc
maximum power 2,1 W à 400 V CA
voltage indication Indicateur d'action
depth 60 mm
mounting bracket Rail DIN symétrique 35 mm
Network type CA
order type Contrôle à distance
Environment
degree of pollution 2
ip degree of protection IP20
operating altitude 2000 m
standards CEI/EN 61095
relative humidity 95 % à 55 °C
thermal dissipation 2,1 W à 50/60 Hz
operating ambient air temperature -5…60 °C
storage room temperature -40…70 °C
sound pressure 30 dB
tropicalization 2 se conformer à EN 60947-4-1
2 se conformer à EN 61095
2 se conformer à CEI 1095
About this product

The A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz is formulated to cover the needs of business buyers, such as panel builders, electric engineers, upkeep firms, and manufacturing originators. A9C20844 dispenses first-rate performance and profit for professionals in the energy management industry. This Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz and other iCT from Schneider Electric can be ordered at the most favorable cost and fulfillment period through BALTELEC, a well-regarded wholesaler serving practitioners in their supply needs.

Professionals who have selected Schneider Electric iCT have habitually approved the producer's stability. It has been noted that the extraordinary operation of A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz extends to a extensive scope of purposes. Its exceptional features make it great solution to cater to varied requirements, promoting success in your industrial, tertiary, and automation efforts.

Our experts specializes in catering industrial and tertiary professionals’ needs. We get the unique criteria and standards of our customers in the domain. By teaming up with BaltElec, our partners obtain access to the best pricing and availability of top-tier products like A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz from Schneider Electric at a budget-friendly price. Our registered accounts appreciate more savings and first-class attention.

Take action and procure A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz at our reliable and accessible online portal. Don't delay in making this clever option that secures the paramount quality and achieves the particular demands of suppliers like your team.

In the event of any doubts or concerns about A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz or any other Schneider Electric products, contact us or refer to our Assistance center section below. We have put together answers to common issues to guide you further in making an smart decision about industrial and tertiary electrical components.

Remember, A9C20844 - Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz from Schneider Electric is sure, cost-effective, and first-rate to other producers in the iCT category. Make it a part of your inventory without delay. Buy at BaltElec, your trusted partner for all your Schneider Electric.

In our Baltelec.eu cyber store you will locate Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz - A9C20844 worth 59.56 €, which will be a safe and new solution for your preferences. This thing is fabricated by the Schneider Electric brand using the up-to-the-minute technologies and obeys the highest standards of reliability and competence. We give objects from the iCT category that associate sturdiness and usefulness, which is an top-notch pick for various intents. Regardless of whether you want apparatus for small generation or for professional industrial use, Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz will be a steadfast assistant in your occupation.

Baltelec works to make the acquiring process as comfortable and fast as attainable for our clients. We offer detailed outlines and high-quality images of Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz so that you can make an informed choice. A team of specialists is always ready to help you with any enquiries in the iCT section connected to the picking and use of goods. We are confident that Acti9, iCT contactor 40A 4NO 230...240VAC 50Hz will meet your standards and become an imperative element of your machinery for just 59.56 €.
