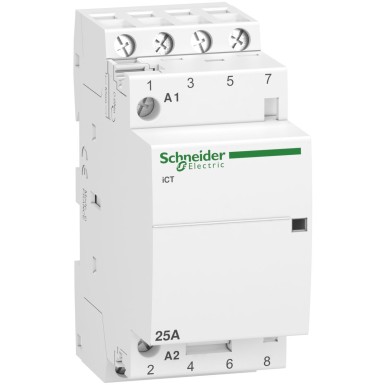

A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles - Schneider Electric

Expected in 2-4 weeks EAN: 3606480088599
A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles - Schneider Electric - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles - Schneider Electric - 0
EAN: 3606480088599
A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles - Schneider Electric
32,78 € excl. VAT
40,64 € incl. VAT
Text About:
Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles - Schneider Electric
40,64 €
SPECIFICATIONS
Main
product range Acti9
[uc] control circuit voltage 220...240 V CA 50 Hz
name of the device iCT
type of product or equipment Contacteur
composition of the poles 4F
Product Name Acti9 iCT
[ui] rated insulation voltage 500 V CA 50/60 Hz
poles 4P
Complementary
9 mm pitches 4
associated accessories IATEt
IACTs
IACTc
IACTp
[ie] rated operational current 25 A AC-7A
8,5 A AC-7B
[ue] rated operational voltage 400 V CA 50 Hz
application Moteur-chauffage-éclairage
compatibility code ICT
control signal type Maintenu
Handle front plate colour 81 mm
tightening torque 0,8 N.m télécommande :
0,8 N.m circuit de puissance :
[uimp] rated impulse withstand voltage 4 kV
market segment Petit commerce
Résidentiel
average fuel consumption when going 4,6 VA
mode d'installation Encliquetable
electrical life 100000 cycle CEI/EN 61095 25 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 8,5 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B
connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 1…4 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 1,5…6 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple
mechanical endurance 1000000 cycle
width (w) 36 mm
network frequency 50 Hz
switching frequency 100 commutations/jour
Colour Blanc
maximum power 1,6 W à 400 V CA
voltage indication Indicateur d'action
depth 60 mm
mounting bracket Rail DIN symétrique 35 mm
Network type CA
calling power goes 34 VA
order type Contrôle à distance
Environment
degree of pollution 2
ip degree of protection IP20
operating altitude 2000 m
standards CEI/EN 61095
relative humidity 95 % à 55 °C
thermal dissipation 1,6 W à 50/60 Hz
operating ambient air temperature -5…60 °C
storage room temperature -40…70 °C
sound pressure 30 dB
tropicalization 2 se conformer à EN 60947-4-1
2 se conformer à EN 61095
2 se conformer à CEI 1095
About this product

The A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles is engineered to accommodate the wants of specialized professionals, such as system integrators, cable technicians, maintenance service providers, and OEMs. A9C20834 supplies outstanding quality and profit for technicians in the automation and control industry. This Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles and other iCT from Schneider Electric are accessible at the most favorable cost and shipping time through BALTELEC, a reputable distributor supplying experts in their obtaining needs.

Customers who have acquired Schneider Electric iCT have frequently lauded the producer's dependability. It has been specified that the outstanding functionality of A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles extends to a collection of purposes. Its first-rate components make it right choice to cater to varied requirements, promoting success in your industrial, tertiary, and automation efforts.

BaltElec concentrates in addressing industrial and tertiary professionals’ needs. We grasp the special needs and requirements of our consumers in the field. By working with BaltElec, our partners access access to the top fees and supply timeline of first-rate products like A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles from Schneider Electric at a competitive price. Registered users benefit from additional savings and preferred assistance.

Make a move and buy A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles at our safe and intuitive online store. Don't delay in making this clever action that assures the top quality and addresses the targeted demands of suppliers like yourselves.

If you face any worries or concerns about A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles or any other Schneider Electric products, message us or refer to our Knowledge base section below. We have gathered answers to common inquiries to help you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, A9C20834 - Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles from Schneider Electric is credible, wallet-friendly, and excellent to alternative suppliers in the iCT category. Make it a part of your infrastructure right now. Snap up at BALTELEC, your trusted partner for all your professional electrical equipment and automation needs.

In our Baltelec.eu digital store you will identify Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles - A9C20834 worth 39.99 €, which will be a secure and contemporary solution for your expectations. This product is created by the Schneider Electric brand using the newest technologies and conforms to the uppermost standards of defense and productivity. We deliver produce from the iCT category that integrate sturdiness and effectiveness, which is an fine possibility for various applications. Despite of whether you call for tools for small construction or for adept industrial application, Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles will be a sure associate in your work.

Baltelec ventures to make the buying process as effortless and fast as accomplishable for our buyers. We offer detailed narratives and high-quality photographs of Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles so that you can make an informed choice. A team of authorities is always ready to help you with any questions in the iCT section involved to the determining and use of supplies. We are trusting that Acti9 iCT - contactor - 25A - 2NO - 220-240 Vac - 2 poles will meet your requirements and become an important element of your inventory for just 39.99 €.

FAQ about A9C20834:
