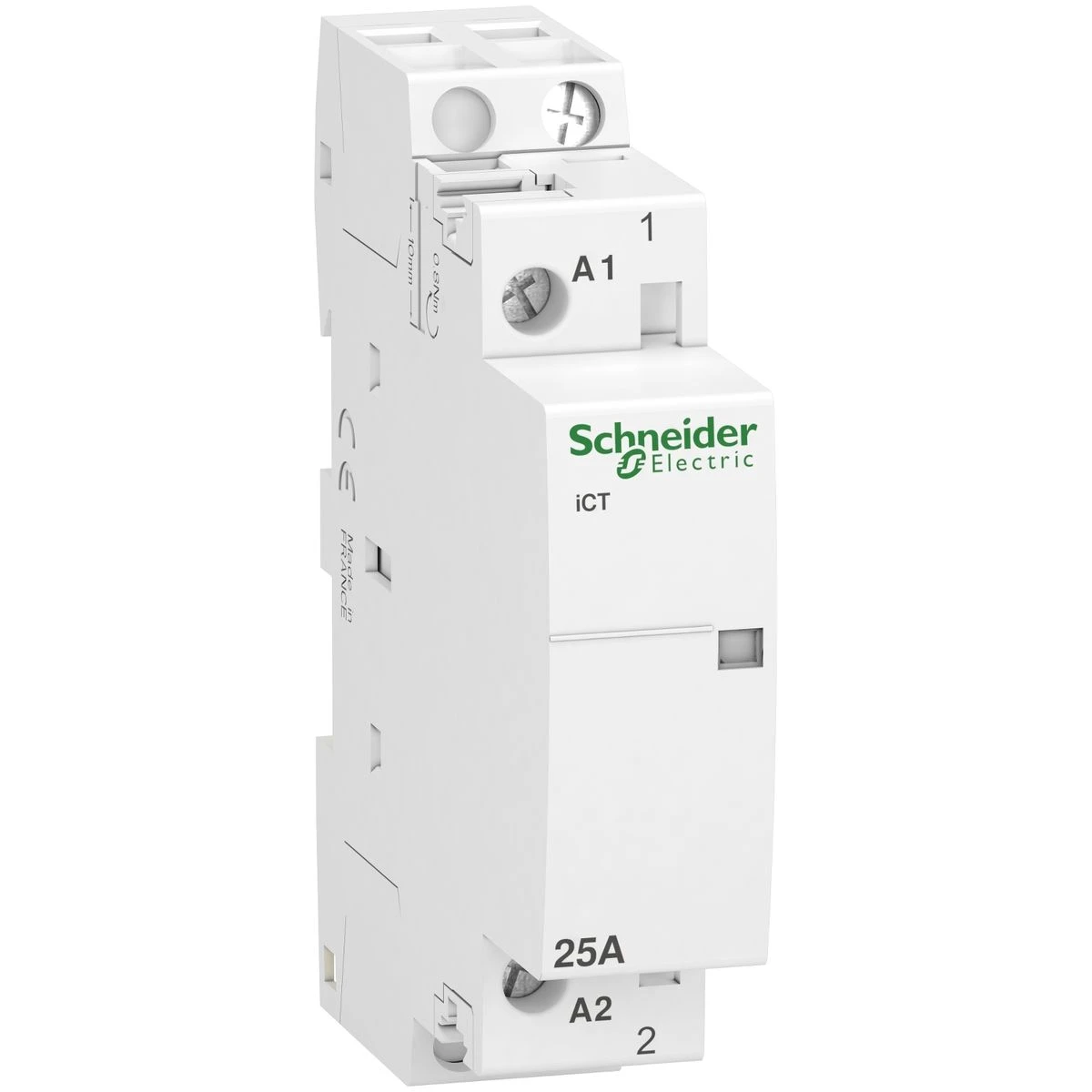

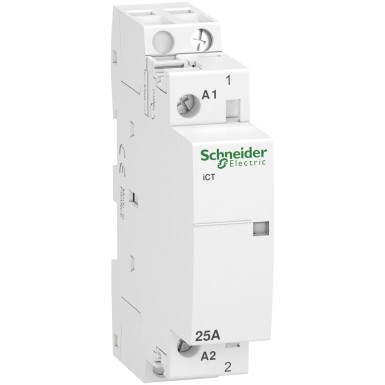

A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz - Schneider Electric

In stock EAN: 3606480088568
A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz - Schneider Electric - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz - Schneider Electric - 0
EAN: 3606480088568
A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz - Schneider Electric
19,49 € excl. VAT
23,77 € incl. VAT
Text About:
Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz - Schneider Electric
23,77 €
SPECIFICATIONS
Main
product range Acti9
[uc] control circuit voltage 230...240 V CA 50 Hz
name of the device iCT
type of product or equipment Contacteur
composition of the poles 1 "F"
Product Name Acti9 iCT
[ui] rated insulation voltage 500 V CA 50/60 Hz
poles 1P
Complementary
9 mm pitches 2
associated accessories IACTc
IACTs
IATEt
IACTp
[ie] rated operational current 25 A AC-7A
8,5 A AC-7B
[ue] rated operational voltage 250 V CA 50 Hz
application Moteur-chauffage-éclairage
compatibility code ICT
control signal type Maintenu
Handle front plate colour 81 mm
tightening torque 0,8 N.m télécommande :
0,8 N.m circuit de puissance :
[uimp] rated impulse withstand voltage 4 kV
market segment Petit commerce
Résidentiel
average fuel consumption when going 2,7 VA
average consumption on call going 9,2 VA
mode d'installation Encliquetable
electrical life 100000 cycle CEI/EN 61095 25 A 50 Hz AC-7A
30000 cycle CEI/EN 61095 8,5 A 50 Hz AC-7B
30000 cycle CEI/EN 61095 50 Hz AC-7C
100000 cycle EN/CEI 60947-4-1 50 Hz AC-1
30000 cycle EN/CEI 60947-4-1 50 Hz AC-3
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5A
30000 cycle EN/CEI 60947-4-1 50 Hz AC-5B
connection mode Télécommande: borne du type à cage2 câble(s) 1,5 mm² rigide
Circuit de puissance: borne du type à cage1 câble(s) 1…4 mm² souple
Circuit de puissance: borne du type à cage1 câble(s) 1,5…6 mm² rigide
Télécommande: borne du type à cage1 câble(s) 1,5…2,5 mm² rigide
Télécommande: borne du type à cage2 câble(s) 1,5…2,5 mm² souple
mechanical endurance 1000000 cycle
width (w) 18 mm
network frequency 50 Hz
switching frequency 100 commutations/jour
Colour Blanc
maximum power 1,2 W à 250 V CA
voltage indication Indicateur d'action
depth 60 mm
mounting bracket Rail DIN symétrique 35 mm
Network type CA
order type Contrôle à distance
Environment
degree of pollution 2
ip degree of protection IP20
operating altitude 2000 m
standards CEI/EN 61095
relative humidity 95 % à 55 °C
thermal dissipation 0,9 W à 50/60 Hz
operating ambient air temperature -5…60 °C
storage room temperature -40…70 °C
sound pressure 30 dB
tropicalization 2 se conformer à EN 60947-4-1
2 se conformer à EN 61095
2 se conformer à CEI 1095
About this product

The A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz is crafted to match the obligations of professional purchasers, such as electrical contractors, cable technicians, management services, and original producers. A9C20731 grants first-rate efficiency and gain for designers in the power management industry. This Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz and other iCT from Schneider Electric are procurable at the optimal price and delivery schedule through baltelec.eu, a well-known distributor fulfilling the needs of technicians in their sourcing needs.

Clients who have adopted Schneider Electric iCT have consistently admired the producer's trustworthiness. It has been remarked that the remarkable workmanship of A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz extends to a broad spectrum of implementations. Its elite features make it well-suited solution for assorted uses, ensuring your industrial, tertiary and automation projects success.

Our team commits in addressing industrial and tertiary professionals’ needs. We grasp the distinct standards and expectations of our partners in the market. By aligning with our experts, your business acquire access to the finest costs and delivery period of the top-of-the-line products like A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz from Schneider Electric at a budget-friendly price. Registered users take advantage of further discounts and premium support.

Don't wait and secure A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz at our verified and straightforward platform. Don't delay in making this intelligent selection that warrants the best quality and achieves the particular needs of suppliers like your business.

Should there be any concerns or concerns about A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz or any other Schneider Electric products, send us a note or refer to our FAQ section section below. We have consolidated answers to recurring concerns to support you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, A9C20731 - Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz from Schneider Electric is dependable, economical, and exceptional to opposing companies in the iCT category. Make it a part of your infrastructure promptly. Order at BALTELEC, your dependable vendor for all your iCT.

In our Baltelec.eu internet store you will detect Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz - A9C20731 worth 23.77 €, which will be a secure and state-of-the-art solution for your demands. This goods is formulated by the Schneider Electric brand using the latest technologies and complies with the leading standards of defense and effectiveness. We offer products from the iCT category that merge endurance and usefulness, which is an exceptional preference for various tasks. Irrespective of whether you crave gear for small manufacturing or for adept industrial application, Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz will be a sure companion in your job.

Baltelec strives to make the shopping process as easy and fast as doable for our customers. We offer detailed reports and high-quality illustrations of Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz so that you can make an aware choice. A team of pros is always ready to help you with any uncertainties in the iCT section tied to the preferment and use of materials. We are trusting that Acti9, iCT contactor 25A 1NO 230...240VAC 50Hz will meet your needs and become an essential element of your setup for just 23.77 €.
