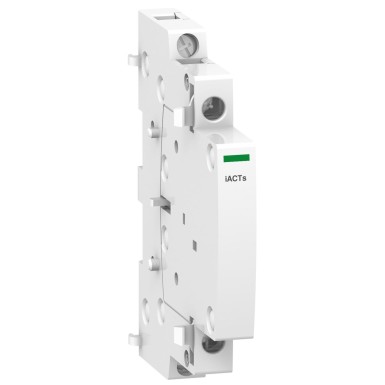

A9C15916 - Acti9, iACTs signaling auxiliary 2NO, for iCT - Schneider Electric
Expected in 2-4 weeks
EAN: 3606480096297
SPECIFICATIONS
Main
composition of signaling contacts
2F
product range
ICT
Range
Acti9
[uc] control circuit voltage
24...240 V CA 50/60 Hz
24...130 V CC
24...130 V CC
name of the device
iATEt
type of product or equipment
Auxiliaire de signalisation à distance
[ui] rated insulation voltage
440 V
Complementary
9 mm pitches
1
associated accessories
ICT
auxiliary connection terminal
Bornes type tunnel2,5 mm² souple 2 câble(s)
Bornes type tunnel1,5 mm² rigide 2 câble(s)
Bornes type tunnel1,5…2,5 mm² rigide 1 câble(s)
Bornes type tunnel1,5…2,5 mm² souple 1 câble(s)
Bornes type tunnel1,5 mm² rigide 2 câble(s)
Bornes type tunnel1,5…2,5 mm² rigide 1 câble(s)
Bornes type tunnel1,5…2,5 mm² souple 1 câble(s)
compatibility code
IACTs
range compatibility
Acti 9 (Acti 9 iCT)
Handle front plate colour
81 mm
tightening torque
0,8 N.m
[uimp] rated impulse withstand voltage
4 kV
market segment
Résidentiel
Petit commerce
Petit commerce
mode d'installation
Fixé, sur la droite du CT
width (w)
9 mm
Colour
Blanc
wire stripping length
9 mm
depth
68 mm
mounting bracket
Rail DIN symétrique 35 mm
signaling circuit voltage
24 V CA/CC: 10 mA
230 V CA: 50/60 Hz 5 A
230 V CA: 50/60 Hz 2 A
130 V CC: 1 A
230 V CA: 50/60 Hz 5 A
230 V CA: 50/60 Hz 2 A
130 V CC: 1 A
Environment
ip degree of protection
IP20
IP20 se conformer à CEI 60529
IP20 se conformer à CEI 60529
operating ambient temperature
-20…50 °C
standards
EN 60947-5
relative humidity
95 % à 55 °C
storage room temperature
-40…70 °C
tropicalization
2
