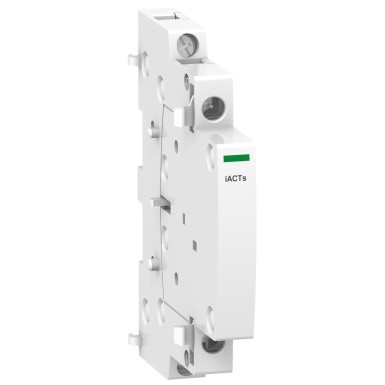

A9C15915 - Acti9, iACTs signaling auxiliary 1NO, for iCT - Schneider Electric

Expected in 2-4 weeks EAN: 3606480096280

EAN: 3606480096280

22,84 € excl. VAT

27,87 € incl. VAT

Text About:

Acti9, iACTs signaling auxiliary 1NO, for iCT - Schneider Electric

In cart

27,87 €

SPECIFICATIONS

Main

composition of signaling contacts 1 F/O

product range ICT

Range Acti9

[uc] control circuit voltage 24...240 V CA 50/60 Hz
24...130 V CC

name of the device iATEt

type of product or equipment Auxiliaire de signalisation à distance

[ui] rated insulation voltage 440 V

Complementary

9 mm pitches 1

associated accessories ICT

auxiliary connection terminal Bornes type tunnel2,5 mm² souple 2 câble(s)
Bornes type tunnel1,5 mm² rigide 2 câble(s)
Bornes type tunnel1,5…2,5 mm² rigide 1 câble(s)
Bornes type tunnel1,5…2,5 mm² souple 1 câble(s)

compatibility code IACTs

range compatibility Acti 9 (Acti 9 iCT)

Handle front plate colour 81 mm

tightening torque 0,8 N.m

[uimp] rated impulse withstand voltage 4 kV

market segment Résidentiel
Petit commerce

mode d'installation Fixé, sur la droite du CT

width (w) 9 mm

Colour Blanc

wire stripping length 9 mm

depth 68 mm

mounting bracket Rail DIN symétrique 35 mm

signaling circuit voltage 24 V CA/CC: 10 mA
230 V CA: 50/60 Hz 5 A
230 V CA: 50/60 Hz 2 A
130 V CC: 1 A

Environment

ip degree of protection IP20
IP20 se conformer à CEI 60529

standards EN 60947-5

relative humidity 95 % à 55 °C

operating ambient air temperature -20…50 °C

storage room temperature -40…70 °C

tropicalization 2
