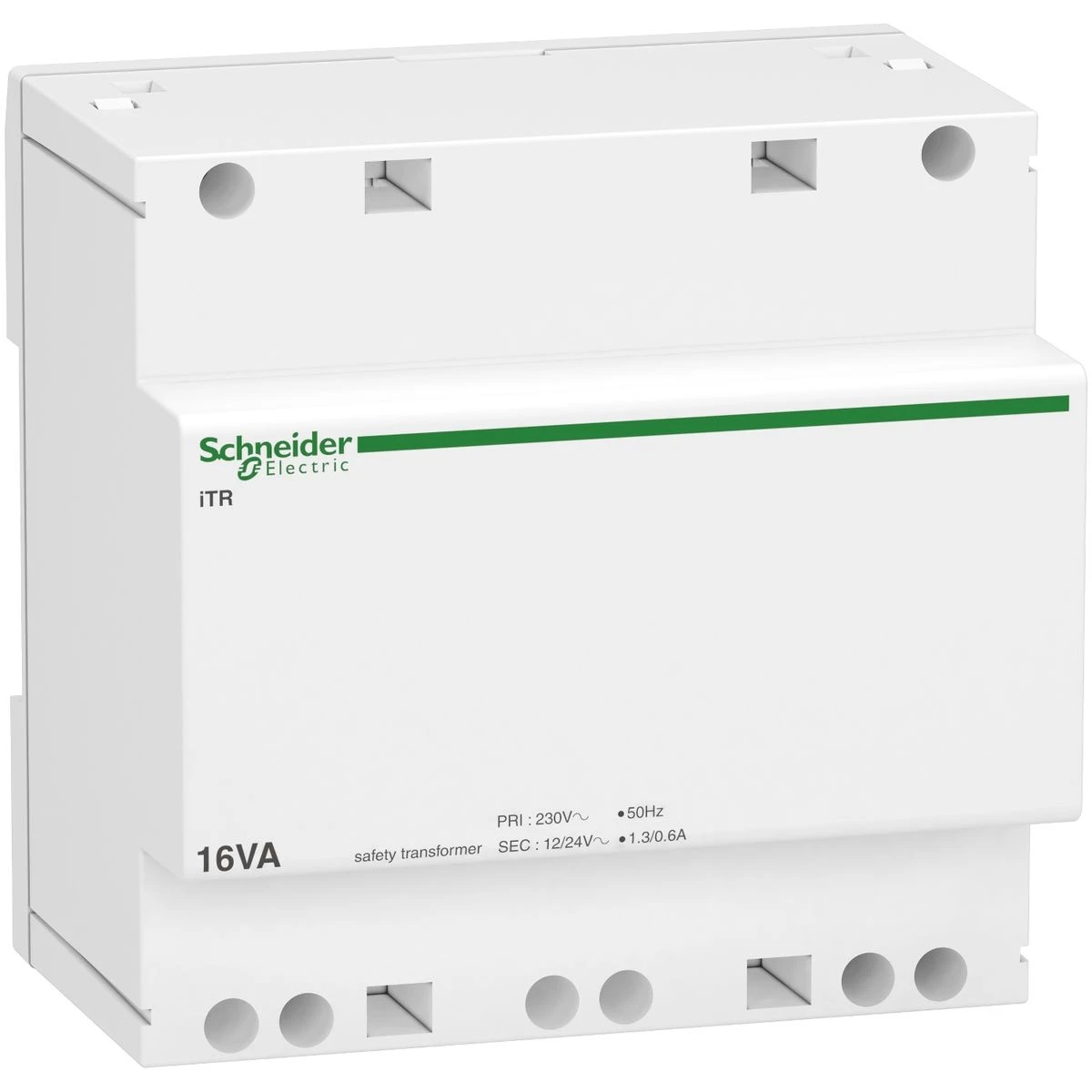

A9A15218 - Modular safety transfomer iTR 230 V 50..60 Hz output 12..24 V 16 VA - Schneider Electric
Expected in 2-4 weeks
40,80 € excl. VAT
49,77 € incl. VAT
Text About:
Modular safety transfomer iTR 230 V 50..60 Hz output 12..24 V 16 VA - Schneider Electric
SPECIFICATIONS
Main
Device short name
iTR
Range
Acti9
Transformer type
Safety transformer
Product Name
Acti9 iTR
Complementary
9 mm pitches
10
[ue] rated operational voltage
230 V AC 50/60 Hz
auxiliary connection terminal
Tunnel type terminals 4 mm²
Product certifications
NF
Handle front plate colour
89 mm
Product or component type
Transformer
rated power in va
16 VA
output short-circuit protection
Built-in
output voltage
12/24 V: +/-5 % on load
14/28 V: off load
14/28 V: off load
width (w)
90 mm
Colour
White
Mounting mode
Fixed
temperature derating table
16 VA 35 °C
15.2 VA 40 °C
12.8 VA 50 °C
9.6 VA 55 °C
7.2 VA 60 °C
15.2 VA 40 °C
12.8 VA 50 °C
9.6 VA 55 °C
7.2 VA 60 °C
Mounting support
35 mm symmetrical DIN rail
depth
60 mm
Environment
Ambient air temp for storage/transportation
-25…80 °C
Range of product
Acti9
ambient air temperature for operation
-20…55 °C
overvoltage category
Class II with terminal shields in option
standards
EN 61558-2-6
EN 60742
IEC 61558-2-6
EN 60742
IEC 61558-2-6
