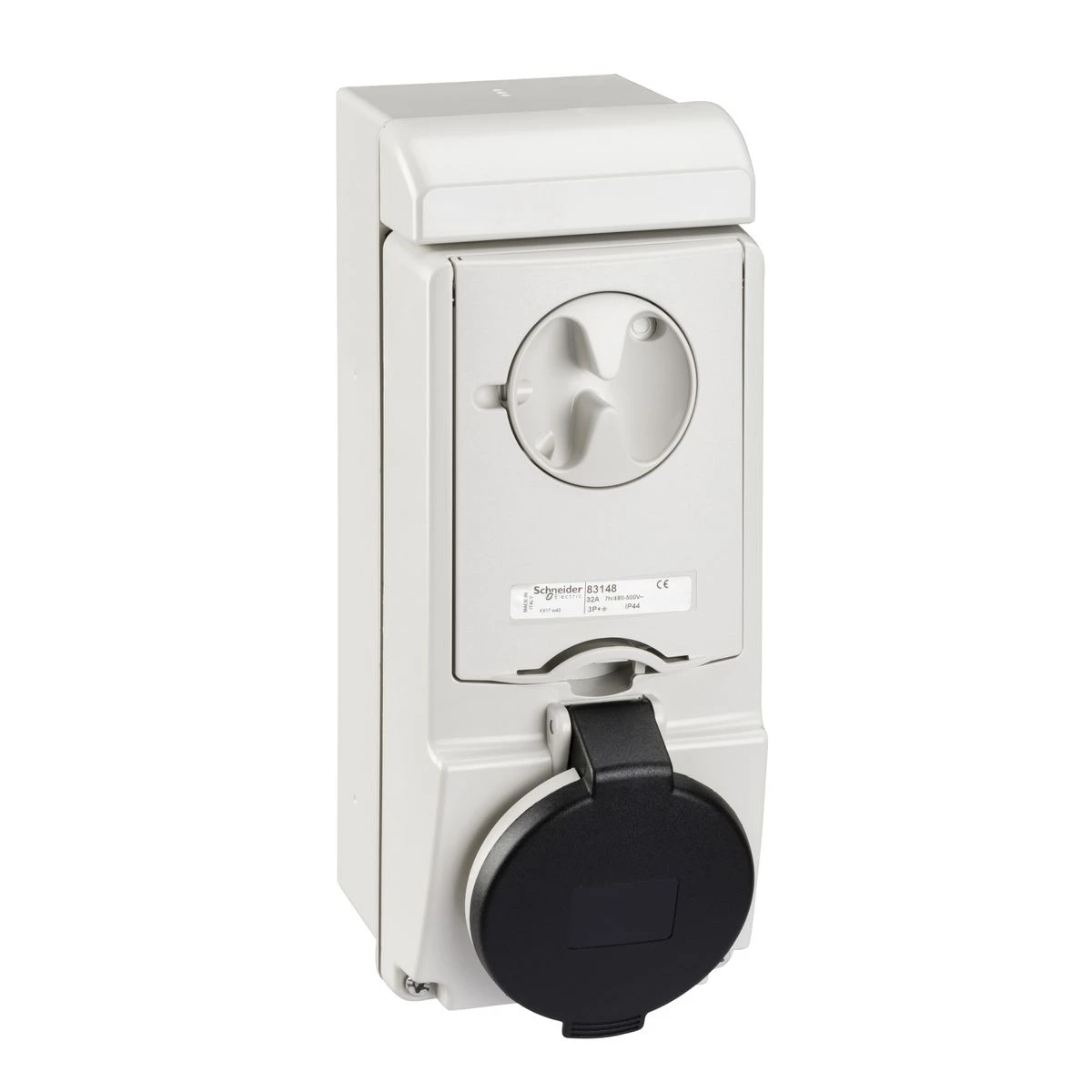

83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall - Schneider Electric

Expected in 2-4 weeks
83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall - Schneider Electric - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall - Schneider Electric - 0
83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall - Schneider Electric
89,44 € excl. VAT
110,90 € incl. VAT
Text About:
Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall - Schneider Electric
110,90 €
SPECIFICATIONS
Main
Device short name Unika socket
Outlet standard Industrial
Range PratiKa
Plug, socket category Low voltage
Complementary
[in] rated current 32 A
[ue] rated operational voltage 480...500 V
Base dimension 103 x 255 mm
Handle front plate colour 255 mm
Product or component type Interlocked socket
cable entry Cable gland
Connections - terminals Captive screws
Contacts material Sleeves: nickel plated brass
width (w) 103 mm
network frequency 50/60 Hz
Colour Grey (RAL 7035)
fuse size 10.3 x 38 mm
Fuse type Cylindrical
Ground lug clockwise position 7 h
Ik degree of protection IK09 conforming to EN 62262
Mounting mode Wall-mounted
Net weight 1.18 kg
depth 151 mm
Maximum cable cross section 10 mm²
Maximum cable outer diameter 25 mm
Network type AC
Plug, socket material Housing: self-extinguishing engineering polymer
thread type Pg 21
Voltage colour Black
Poles description 3P + E
Protection type Fuse
Environment
ip degree of protection IP44 conforming to IEC 60529
ambient air temperature for operation 35 °C ( 86400 s )
-25…40 °C
standards IEC 60309-1
IEC 60309-2
fire resistance 750 °C conforming to IEC 60695-2-11
relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
About this product

The 83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall is designed to cater to the obligations of specialized professionals, such as system integrators, wiremen, maintenance companies, and Industry suppliers. 83148 dispenses unmatched quality and gain for specialists in the power systems industry. This Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall and other Pratika LV Sockets And Plugs from Schneider Electric can be ordered at the unbeatable price and lead time through BALTELEC, an independent vendor fulfilling the needs of industry experts in their obtaining needs.

Engineers who have opted for Schneider Electric Pratika LV Sockets And Plugs have frequently praised the brand's reliability. It has been emphasized that the notable workmanship of 83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall extends to a multitude of applications. Its elite characteristics make it suitable to cater to varied requirements, ensuring the success of your industrial, tertiary, and automation projects.

BaltElec specializes in accommodating industrial and tertiary professionals’ needs. We get the distinct requirements and preferences of our customers in the field. By cooperating with our specialists, our customers gain access to the premier costs and inventory of first-rate products like 83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall from Schneider Electric at a value-for-money price. Professional buyers with Baltelec account get more savings and expedited requests handling.

Seize the moment and request 83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall at our reliable and efficient webshop. Don't delay in making this thoughtful selection that guarantees the greatest quality and meets the defined specifications of professionals like your organization.

If you face any questions or concerns about 83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall or any other Schneider Electric products, contact us or refer to our Knowledge base section below. We have provided answers to common uncertainties to advise you further in making an educated decision about industrial and tertiary electrical components.

Remember, 83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall from Schneider Electric is consistent, value-priced, and elite to other brands in the Pratika LV Sockets And Plugs category. Make it a part of your network immediately. Shop with confidence at Baltelec webstore, your consistent provider for all your professional electrical equipment and automation needs.

In our Baltelec.eu internet store you will identify Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall - 83148 worth 109.12 €, which will be a constant and new solution for your requirements. This product is created by the Schneider Electric brand using the current technologies and conforms to the uppermost standards of assurance and competence. We extend articles from the Pratika LV Sockets And Plugs category that associate endurance and effectiveness, which is an top-notch selection for various tasks. Not minding of whether you need machinery for small generation or for adept industrial application, Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall will be a dependable companion in your task.

Baltelec labors to make the purchasing process as uncomplicated and fast as accomplishable for our consumers. We offer detailed narratives and high-quality depictions of Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall so that you can make an conscious choice. A team of adepts is always ready to help you with any issues in the Pratika LV Sockets And Plugs section associated to the determining and use of materials. We are confident that Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall will meet your demands and become an important element of your gear for just 109.12 €.

Frequently Raised Questions about 83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall:

  • What are the advantages of ordering 83148 from BaltElec?

    When you buy Schneider Electric Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall from BALTELEC, you will get genuine quality Schneider Electric Pratika LV Sockets And Plugs products at the unbeatable prices and lead time. Moreover, our partnerstake pleasure in additional savings and preferred assistance.

  • 83148 is suitable for my project?

    To confirm that Schneider Electric Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall matches your technical requirements, we provide thorough information concerning product's specs, technical characteristics, and interoperability. You can access this information on the specific page of the product name. If you require further assistance, our customer service team is available to assist you in making an informed choice.

  • Which warranty coverage is offered for Schneider Electric 83148?

    BaltElec online store emphasizes the quality of the items we distribute. The default guarantee coverage for Schneider Electric Pratika LV Sockets And Plugs including 83148 - Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall is 1 year. Nevertheless, it depends depending on the particular item, category, and could be longer. You can find comprehensive warranty information on the Schneider Electric Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall dedicated page or by reaching out to our support team representatives.

  • Do you arrange international shipping for Schneider Electric Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall and other Schneider Electric products?

    Certainly. In addition to catering to Estonia, Latvia, Lithuania and other European Union countries, we provide worldwide shipping for Schneider Electric 83148. Please be aware that delivery options, fees, and delivery times can vary based on the destination. For bulk acquisitions, please consult Baltelec.eu sales team.

  • Do Schneider Electric MBC offered by Baltelec.eu comply with international norms for safety and reliability?

    Completely. All Schneider Electric items offered at BALTELEC online store adhere to global standards such as IEC 60898-1 and carry the CE certification. Such standards ensure that the products meet strict security, technological, reliability, and performance requirements.

  • Can BALTELEC offer guidance on integrating renewable energy solutions, such as solar energy systems or wind power converters, into my projects?

    Yes, sure!  Baltelec online store acknowledges the significance of clean energy integration within projects. Our team of experts can help you in choosing the right Schneider Electric products, to incorporate them into your renewable energy solutions}. We can offer advice on integrating solar energy systems, wind energy converters, and alternative eco-friendly options to optimize power generation and efficiency.

  • Do you have energy-efficient options available within the Pratika LV Sockets And Plugs category to promote energy conservation efforts?

    Absolutely! Baltelec website provides numerous energy-efficient solutions within the Pratika LV Sockets And Plugs category that are aligned with energy-saving goals. Our top-quality Schneider Electric products, like the 83148, are engineered with energy efficiency in mind. By integrating these products into your electrical system, you can enhance energy usage and minimize environmental impact. Additionally, we provide attractive pricing for our eco-friendly Schneider Electric products,, making them an economical choice for promoting sustainability.

  • Are 83148 sold by BaltElec e-shop authentic?

    Yes, we only provide original Schneider Electric products, including but not limited to Unika interlocked socket 32 A 3P + E 480...500 V AC IP44 wall. We procure our products solely through legitimate distribution channels to guarantee their authenticity and high quality.
