83111 - PratiKa industrial socket 16 A 3P + E 480...500 V AC IP44 - Schneider Electric

Expected in 2-4 weeks

12,03 € excl. VAT

14,68 € incl. VAT

Text About:

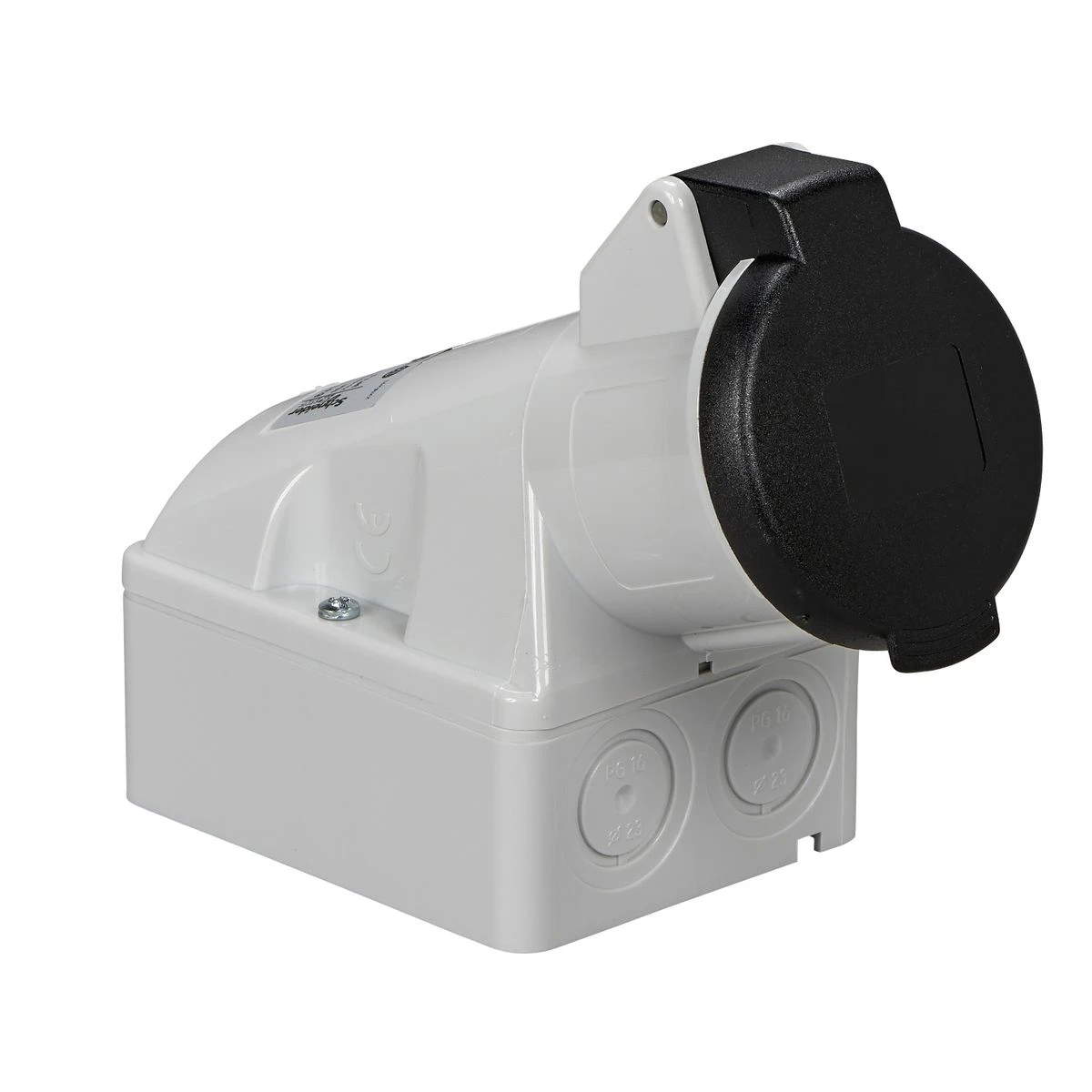

PratiKa industrial socket 16 A 3P + E 480...500 V AC IP44 - Schneider Electric

In cart

14,68 €

SPECIFICATIONS

Main

Device short name PratiKa socket

Outlet standard Industrial

Range PratiKa

Plug, socket category Low voltage

Complementary

[in] rated current 16 A

[ue] rated operational voltage 480...500 V

Base dimension 80 x 100 mm

Cable cross section 1…4 mm²

Handle front plate colour 100 mm

Product or component type Socket

Connections - terminals Captive screws, completely loosened

cable outer diameter 8…15 mm

Contacts material Pins: stainless steel
Sleeves: nickel plated brass
Springs: stainless steel

width (w) 80 mm

network frequency 50/60 Hz

Colour Grey (RAL 7035)

Ground lug clockwise position 7 h

Ik degree of protection IK08 conforming to EN 62262

Mounting mode Wall-mounted

Net weight 0.3 kg

depth 155 mm

Network type AC

Plug, socket material Housing: self-extinguishing engineering polymer

Plug, socket, control station shape Angled

Voltage colour Black

Poles description 3P + E

Environment

ip degree of protection IP44 conforming to IEC 60529

ambient air temperature for operation 35 °C ( 86400 s )

standards EN 60309-1
EN 60309-2

fire resistance 850 °C conforming to IEC 60695-2-11

relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
