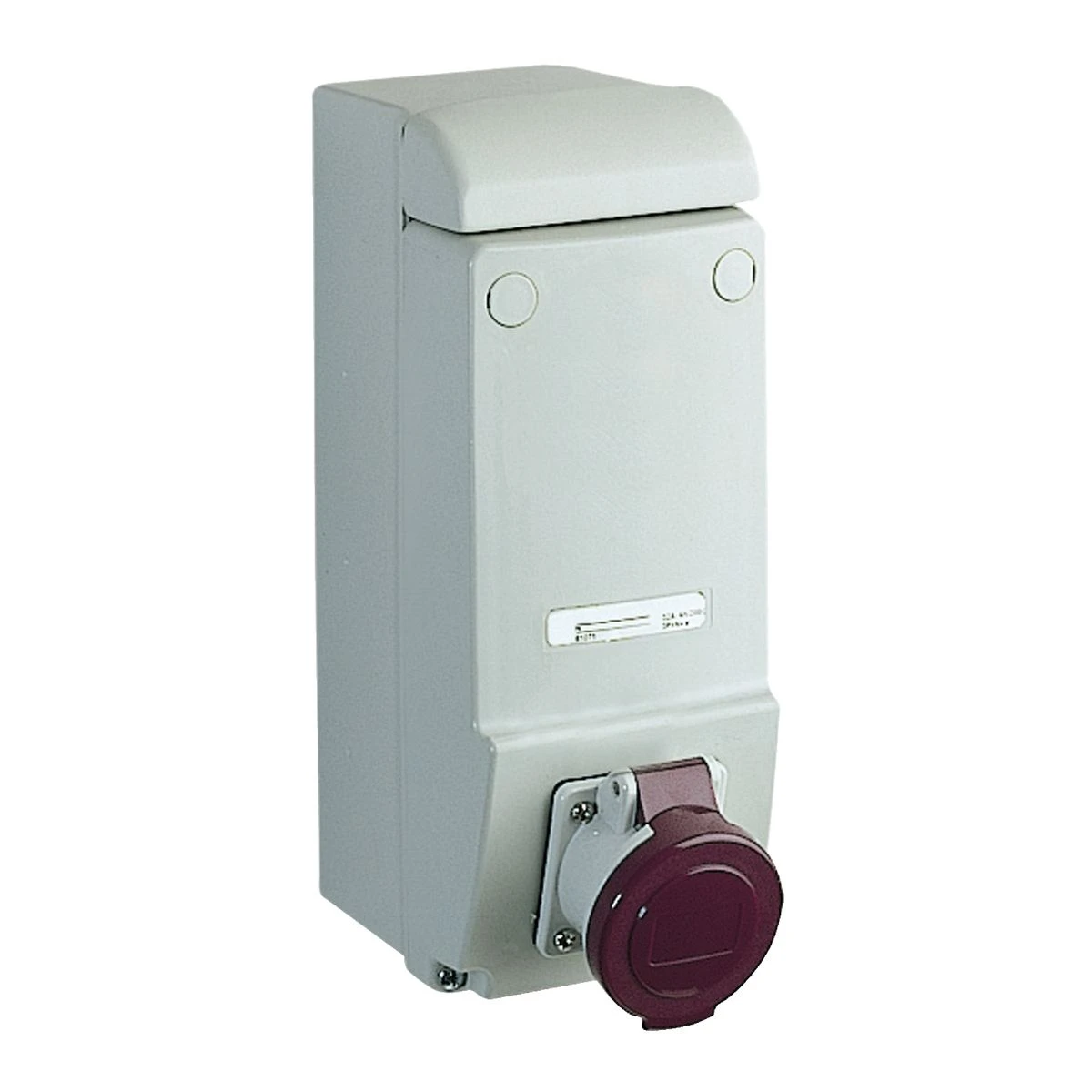

83026 - Industrial socket 16 A 2P 230 V AC IP 44 wall - Schneider Electric
Expected in 2-4 weeks
140,92 € excl. VAT
171,92 € incl. VAT
Text About:
Industrial socket 16 A 2P 230 V AC IP 44 wall - Schneider Electric
SPECIFICATIONS
Main
Device short name
PK Unika socket
Outlet standard
Industrial
Range
PratiKa
Plug, socket category
Extra-low voltage
Complementary
[in] rated current
16 A
[ue] rated operational voltage
230 V
Base dimension
103 x 240 mm
Handle front plate colour
240 mm
Product or component type
Interlocked socket
cable entry
Cable gland
Connections - terminals
Captive screws
Contacts material
Sleeves: nickel plated brass
output voltage
24 V
width (w)
103 mm
network frequency
50/60 Hz
Colour
Violet (RAL 7035)
fuse size
Without
Fuse type
Cylindrical
Ground lug clockwise position
Without
Ik degree of protection
IK09 conforming to EN 50102
transformer rated power in va
160 VA
depth
166 mm
Maximum cable cross section
6 mm²
Maximum cable outer diameter
25 mm
Network type
AC
Plug, socket material
Housing: self-extinguishing engineering polymer
thread type
Pg 21
Secondary keyway clockwise position
Without
Voltage colour
Violet
Poles description
2P
Environment
ip degree of protection
IP44 conforming to IEC 529
ambient air temperature for operation
35 °C ( 86400 s )
standards
IEC 309-2
IEC 529
IEC 742
EN 50102
IEC 309-1
IEC 695-2-1
IEC 529
IEC 742
EN 50102
IEC 309-1
IEC 695-2-1
fire resistance
750 °C conforming to IEC 60695-2-1
relative humidity
50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
70 % at 30 °C
90 % at 20 °C
