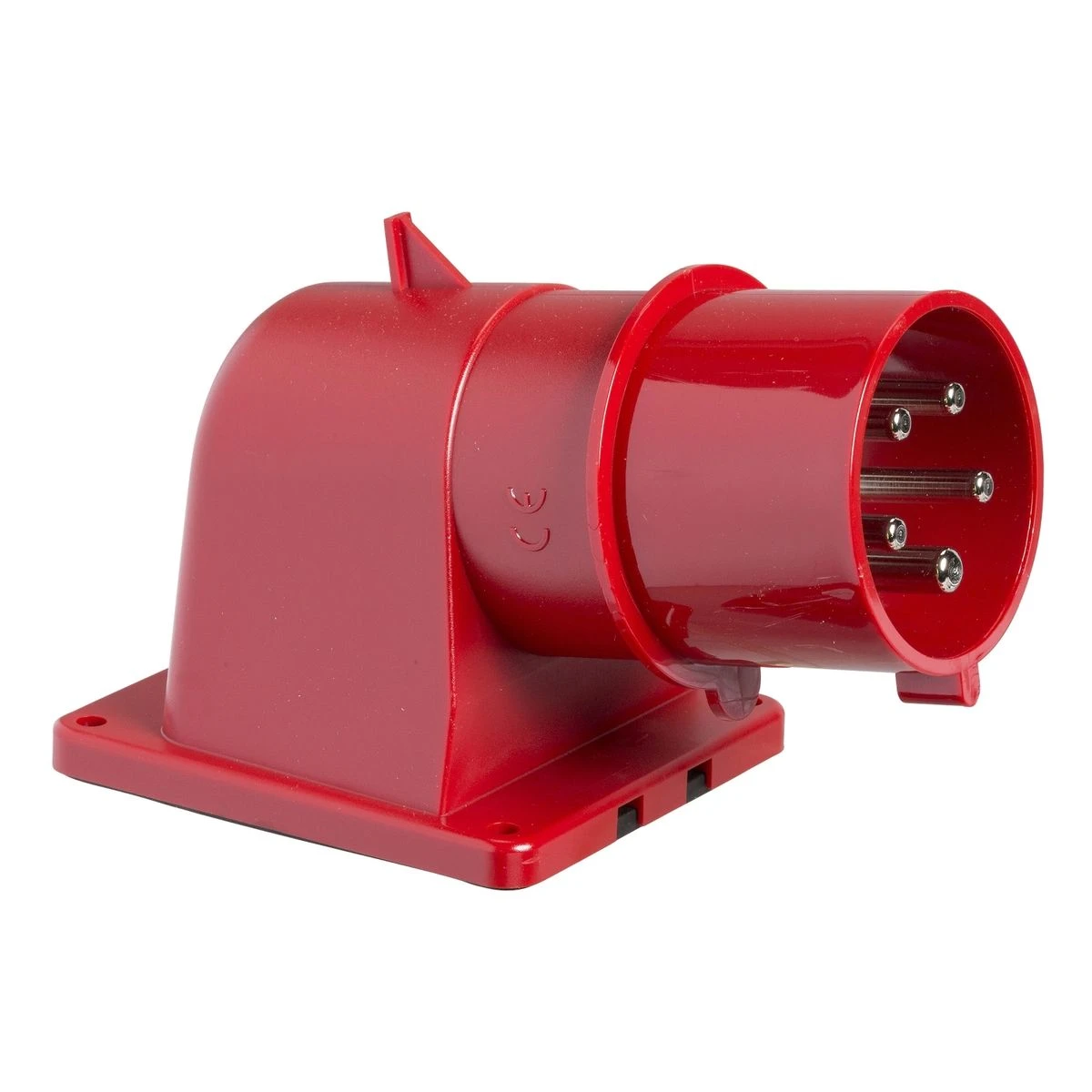

81820 - PratiKa industrial plug 32 A 3P + E 380...415 V AC IP44 - Schneider Electric

Expected in 2-4 weeks

11,12 € excl. VAT

13,57 € incl. VAT

Text About:

PratiKa industrial plug 32 A 3P + E 380...415 V AC IP44 - Schneider Electric

In cart

13,57 €

SPECIFICATIONS

Main

Device short name PratiKa plug

Outlet standard Industrial

Range PratiKa

Plug, socket category Low voltage

Complementary

[in] rated current 32 A

[ue] rated operational voltage 380...415 V

Base dimension 90 x 100 mm

Cable cross section 2.5…10 mm²

Handle front plate colour 159 mm

Product or component type Plug

Connections - terminals Captive screws

Contacts material Pins: nickel plated brass

width (w) 90 mm

network frequency 50/60 Hz

Colour Red

Ground lug clockwise position 6 h

Ik degree of protection IK08 conforming to EN 62262

Mounting mode Panel-mounted

Net weight 0.261 kg

depth 98 mm

Network type AC

Plug, socket material Self-extinguishing engineering polymer

Plug, socket, control station shape 90° angled

Voltage colour Red

Poles description 3P + E

Environment

ip degree of protection IP44 conforming to IEC 60529

operating altitude 2000 m

ambient air temperature for operation 35 °C ( 86400 s )
-25…40 °C

standards EN 60309-1
EN 60309-2

fire resistance 850 °C conforming to IEC 60695-2-1

relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
