Main
Device short name

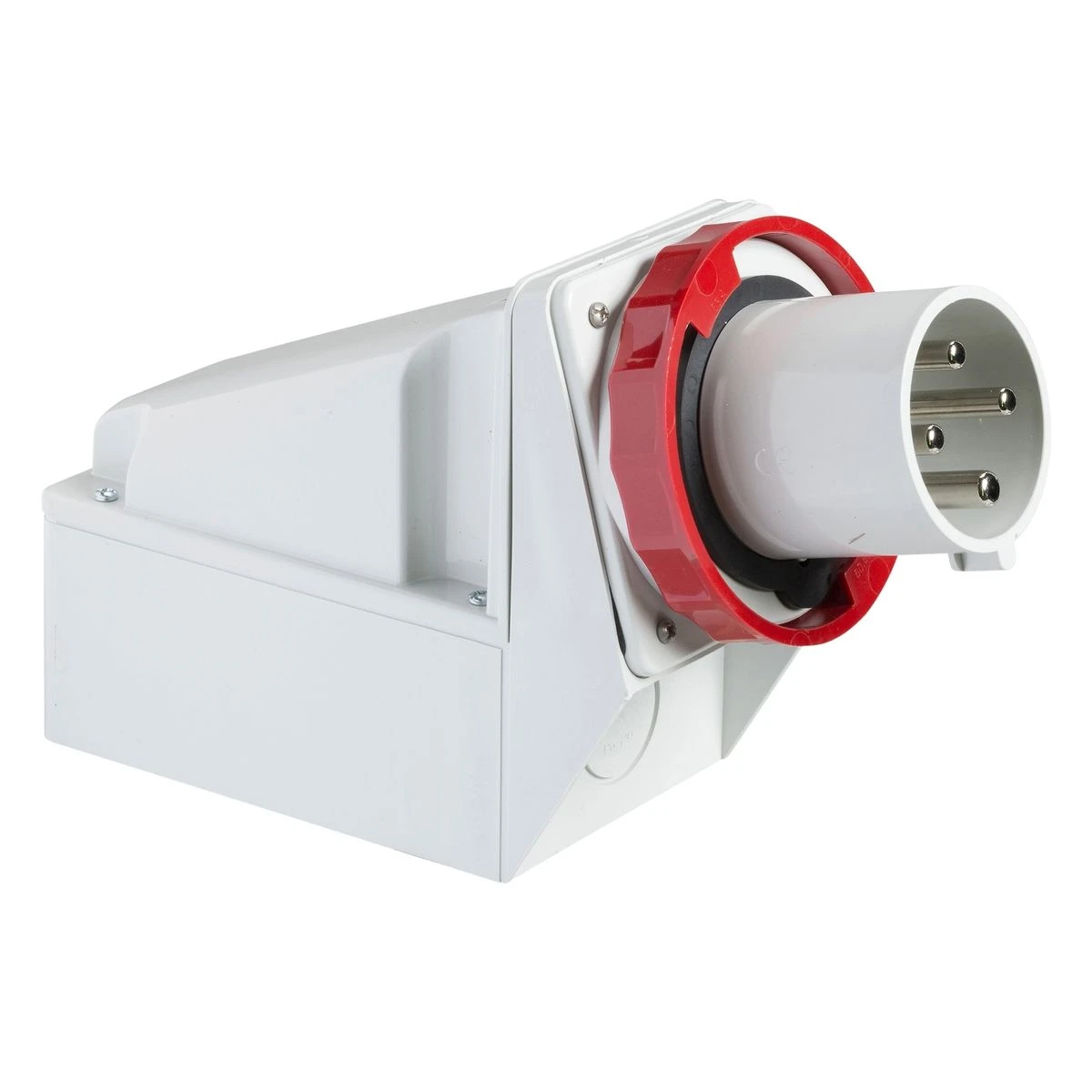

PratiKa plug
Outlet standard
Industrial
Range
PratiKa
Plug, socket category
Low voltage
Complementary
[in] rated current
63 A
[ue] rated operational voltage
380...415 V
Base dimension
104 x 162 mm
Cable cross section
6…25 mm²
Handle front plate colour
281 mm
Product or component type
Plug
cable entry
Cable gland
Connections - terminals
Captive screws
Contacts material
Pins: nickel plated brass
width (w)
104 mm
network frequency
50/60 Hz
Colour
Grey (RAL 7035)
Ground lug clockwise position
6 h
Ik degree of protection
IK08 conforming to EN 62262
Mounting mode
Wall-mounted
Net weight
1.043 kg
depth
180 mm
Network type
AC
Plug, socket material
Self-extinguishing engineering polymer
thread type
Pg 36
Plug, socket, control station shape
Angled
Voltage colour
Red
Poles description
3P + E
Environment
ip degree of protection
IP67 conforming to IEC 60529
operating altitude
2000 m
ambient air temperature for operation
35 °C ( 86400 s )
-25…40 °C
standards
EN 60309-2
EN 60309-1
fire resistance
850 °C conforming to IEC 60695-2-1
relative humidity
50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
