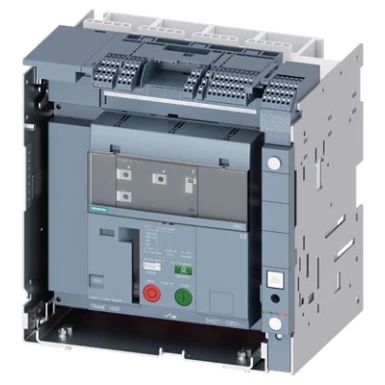

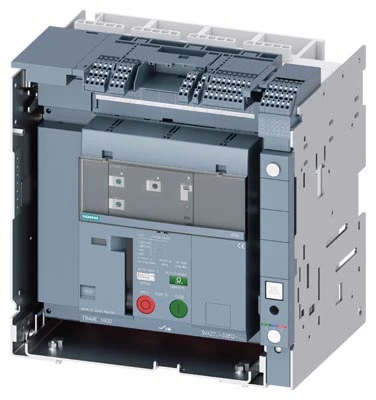

3VA2710-2AB42-4AA0 - 3VA27, with motor operator Ue AC/DC 220 ÷ 250 V, withdrawable design, In 1000 A, Icu 85 kA / 415 V, overcurrent release ETU320 (LI), Ir 400 ÷ 1000 A, Ii (1,5 ÷ 15)x In, 4-pole, rear horizontal connection, 4x AUX, S24, RTC, S21, PSS - OEZ

Expected in 2-4 weeks

3VA2710-2AB42-4AA0 - 3VA27, with motor operator Ue AC/DC 220 ÷ 250 V, withdrawable design, In 1000 A, Icu 85 kA / 415 V, overcurrent release ETU320 (LI), Ir 400 ÷ 1000 A, Ii (1,5 ÷ 15)x In, 4-pole, rear horizontal connection, 4x AUX, S24, RTC, S21, PSS - OEZ

4 492,30 € excl. VAT

5 480,61 € incl. VAT

Text About:

3VA27, with motor operator Ue AC/DC 220 ÷ 250 V, withdrawable design, In 1000 A, Icu 85 kA / 415 V, overcurrent release ETU320 (LI), Ir 400 ÷ 1000 A, Ii (1,5 ÷ 15)x In, 4-pole, rear horizontal connection, 4x AUX, S24, RTC, S21, PSS - OEZ

In cart

5 480,61 €

SPECIFICATIONS

Main

degree of protection IP20

Complementary

Ambient temperature max. 70 °C

Basic package 1 pcs

Control element type push-button

[in] rated current 1000 A

Ambient temperature min. -25 °C

Collated package - pcs

Max. reduced rated current 400 A

Protection from front side of the device IP20

Country of origin CZ

Depth (netto) 272 mm

Max. release current of independent instantaneous (short-circuit) release 24000 A

Handle front plate colour 363 mm

Min. reduced rated current 400 A

Min. release current of independent instantaneous (short-circuit) release 1200 A

Power losses / 1 pole 55 W

Rated frequency 50/60 Hz

Rated operating voltage AC 690 V

Rated operating voltage ac 690 V

mechanical endurance 10000 cycles

width (w) 348 mm

Rated short-circuit service breaking capacity / 415 v 85 kA

Rated short-circuit ultimate breaking capacity / 415 v 85 kA

Setting of instantaneous short-circuit release 1,5;2;3;4;6;8;10;12;15x In

Poles description 4

Environment

Al N

Electrical endurance 2000 cycles

Pck 5374

Customs tariff 85362090

Eccn EAR99
