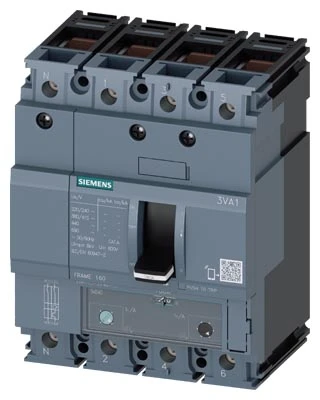

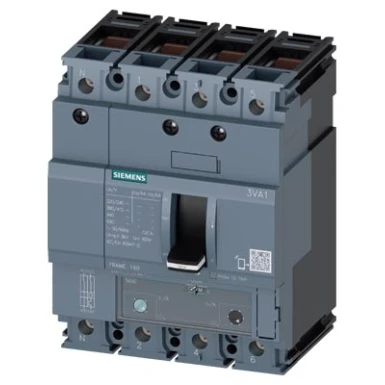

3VA1110-3EF46-0AA0 - 3VA11, In 100 A, Icu 25 kA / 415 V, overcurrent release TM240 (ATAM), Ir 70 ч 100 A, Ii (5 ч 10)x In, without N-pole protection, 4-pole, clamp terminals - OEZ

Expected in 2-4 weeks

3VA1110-3EF46-0AA0 - 3VA11, In 100 A, Icu 25 kA / 415 V, overcurrent release TM240 (ATAM), Ir 70 ч 100 A, Ii (5 ч 10)x In, without N-pole protection, 4-pole, clamp terminals - OEZ

194,49 € excl. VAT

237,28 € incl. VAT

Text About:

3VA11, In 100 A, Icu 25 kA / 415 V, overcurrent release TM240 (ATAM), Ir 70 ч 100 A, Ii (5 ч 10)x In, without N-pole protection, 4-pole, clamp terminals - OEZ

In cart

237,28 €

SPECIFICATIONS

Main

degree of protection IP40

Complementary

Ambient temperature max. 70 °C

Basic package 1 pcs

Control element type lever

[in] rated current 100 A

Ambient temperature min. -25 °C

Collated package - pcs

Max. reduced rated current 100 A

Protection from front side of the device IP40

Country of origin CZ

Depth (netto) 70 mm

Max. release current of independent instantaneous (short-circuit) release 1000 A

Handle front plate colour 130 mm

Min. reduced rated current 70 A

Min. release current of independent instantaneous (short-circuit) release 500 A

Power losses / 1 pole 8,33 W

Rated frequency 50/60 Hz

Rated operating voltage AC 690, DC 600 V

Rated operating voltage ac 690 V

mechanical endurance 20000 cycles

width (w) 101,6 mm

Rated short-circuit service breaking capacity / 415 v 25 kA

Rated short-circuit ultimate breaking capacity / 415 v 25 kA

Setting of instantaneous short-circuit release 5;6;7;8;9;10x In

Rated operating voltage dc 600 V

Poles description 4

Environment

Al N

Electrical endurance 8000 cycles

Pck 5375

Customs tariff 85362090

Eccn N
