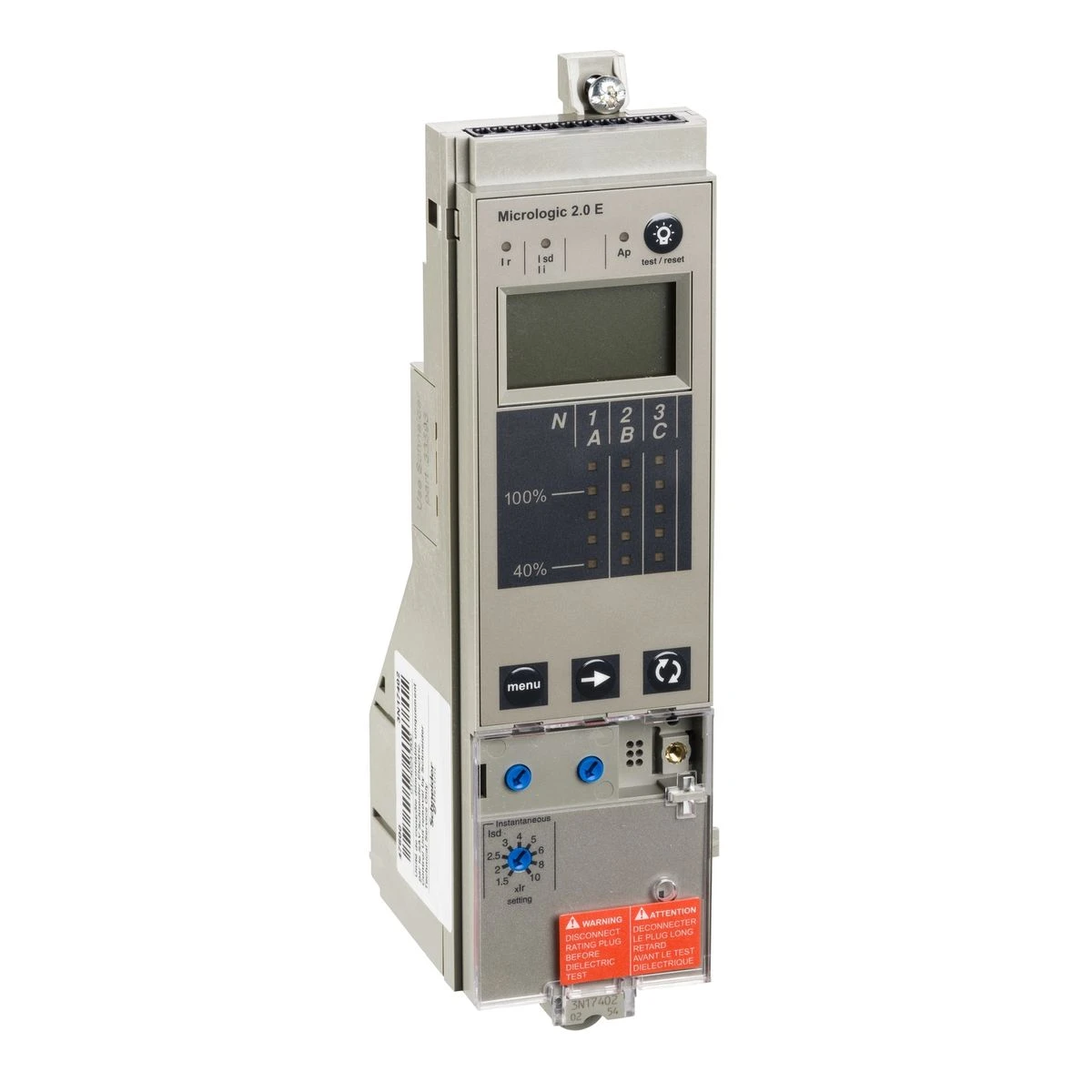

33535 - Trip unit MicroLogic 2.0 E, ComPact NS630b to NS3200 fixed, basic protections - Schneider Electric

Expected in 2-4 weeks

934,07 € excl. VAT

1 139,56 € incl. VAT

Text About:

Trip unit MicroLogic 2.0 E, ComPact NS630b to NS3200 fixed, basic protections - Schneider Electric

In cart

1 139,56 €

SPECIFICATIONS

Main

Range ComPact

circuit breaker mounting mode Fixed

Protected poles description 4t
3t
3t + N/2

Trip unit name Micrologic 2.0 E

Trip unit technology Electronic

Trip unit rating 630 A at 50 °C
800 A at 50 °C
1000 A at 50 °C
1250 A at 50 °C
1600 A at 50 °C
2000 A at 50 °C
2500 A at 50 °C
3200 A at 50 °C

Trip unit protection functions Basic protection

Complementary

[ii] instantaneous pick-up adjustment range 1.5...10 x Ir

range compatibility ComPact NS1600b...3200
ComPact NS630b...1600

[ir] long-time protection pick-up adjustment range 0.4...1 x In

Product or component type Trip unit

[tr] long-time delay adjustment range 0.7…16.6 s at 7.2 x Ir
0.7…24 s at 6 x Ir
12.5…600 s at 1.5 x Ir

Device application Distribution

type of measurement Energy meter

Communication of data Measurement readout
Protection and alarm settings

network frequency 50/60 Hz

thermal memory 20 mn

Local signalling 3 LEDs (red) for electrical fault
1 LED (red) for internal error

long-time pick-up adjustment type ir (thermal protection) Adjustable 9 settings

long-time protection delay adjustment type tr Adjustable 9 settings

Display type Digital display

Earth-leakage protection Without

Network type AC

instantaneous protection pick-up adjustment type ii Adjustable 9 settings

Poles description 3P
4P

Protection type for overload protection (long time)
for instantaneous short-circuit protection

Zone selective interlocking zsi Without

Environment

Ambient air temp for storage/transportation -40…85 °C

Range of product ComPact NS1600b...3200
ComPact NS630b...1600

ambient air temperature for operation -25…70 °C
