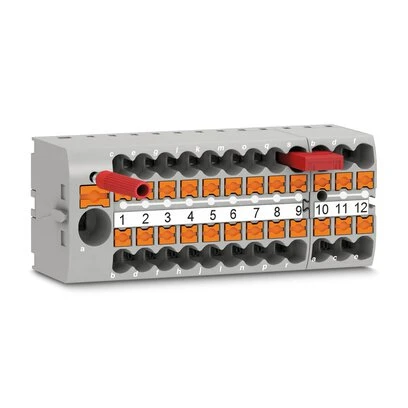

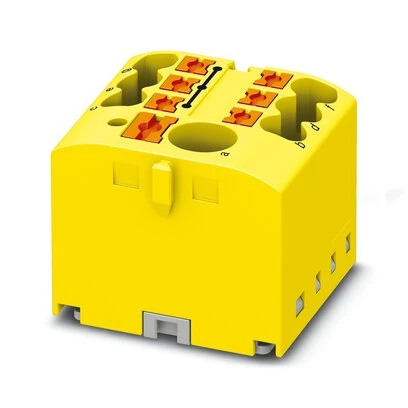

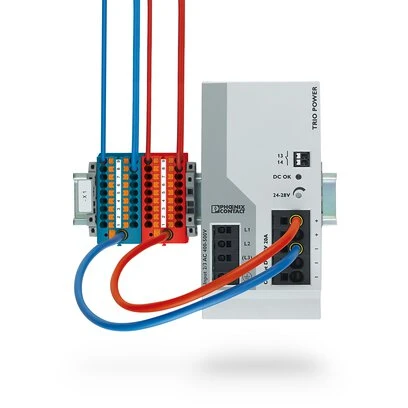

3273336 - PTFIX 6/6X2,5 YE - Phoenix Contact
Expected in 2-4 weeks
SPECIFICATIONS
Additional Information
notes on operation

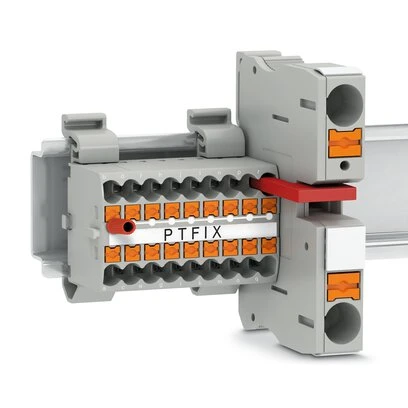

the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories
rated cross section awg
14
Main
calorimetric heat release nfpa 130 (astm e 1354)
28 MJ/kg
catalog page
Page 443 (C-1-2019)
flammability rating according to ul 94
V0
insulating material
PA
fire protection for rail vehicles (din en 45545-2) r22
HL 1 - HL 3
relative insulation material temperature index (elec., ul 746 b)
130 °C
fire protection for rail vehicles (din en 45545-2) r23
HL 1 - HL 3
gtin
4055626392363
number of rows
1
Product type
Distributor terminal block
fire protection for rail vehicles (din en 45545-2) r24
HL 1 - HL 3
item number
3273336
potentials
1
fire protection for rail vehicles (din en 45545-2) r26
HL 1 - HL 3
nominal cross section
6 mm²
packing unit
10 pc
product key
BEA122
insulating material group
I
weight per piece (excluding packing)
19.69 g
weight per piece (including packing)
20.01 g
smoke gas toxicity nfpa 130 (smp 800c)
passed
specific optical density of smoke nfpa 130 (astm e 662)
passed
static insulating material application in cold
-60 °C
surface flammability nfpa 130 (astm e 162)
passed
temperature index of insulation material (din en 60216-1 (vde 0304-21))
130 °C
Complementary
maximum power dissipation for nominal condition
0.77 W
open side panel
No

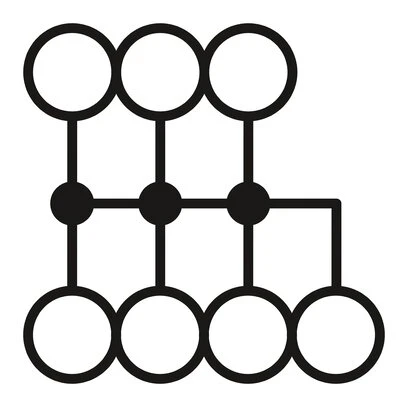

number of connections
7
rated surge voltage
6 kV
conductor cross section, flexible [awg]
26 ... 14 (converted acc. to IEC)
Country of origin
PL
length [l]
28.6 mm
2 conductors with the same cross section, flexible, with twin ferrule with plastic sleeve
0.5 mm² ... 1.5 mm²
conductor cross section, rigid [awg]
24 ... 12 (converted acc. to IEC)
Handle front plate colour
21.7 mm
connection in acc. with standard
IEC 60998-2-2
cross section awg
26 ... 12 (converted acc. to IEC)
conductor cross section flexible, with ferrule without plastic sleeve
0.5 mm² ... 2.5 mm²
flexible conductor cross section (ferrule with plastic sleeve)
0.34 mm² ... 2.5 mm²
nominal voltage
450 V
internal cylindrical gage
A3
number of connections per level
7
width (w)
25.6 mm
maximum total current
57 A (with 10 mm² conductor cross section)
Colour
yellow
stripping length
8 mm ... 10 mm
Minimum order quantity
10 pc
nominal current
24 A
service entrance
yes
frequency
f1 = 5 Hz to f2 = 250 Hz
Maximum load current
32 A (with 4 mm² conductor cross section)
Environment
acceleration
30g
Ambient air temp for storage/transportation
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient air temperature for installation
-5 °C ... 70 °C
ambient temperature (actuation)
-5 °C ... 70 °C
china rohs
Environmentally friendly use period: unlimited = EFUP-e
Customs tariff number
85369010
degree of pollution
3

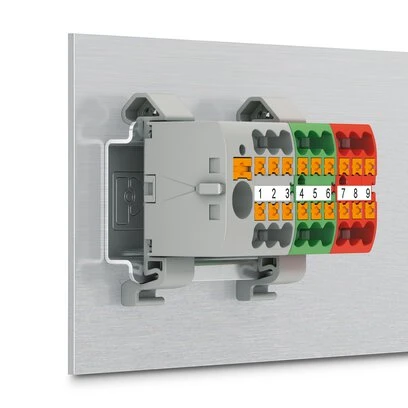

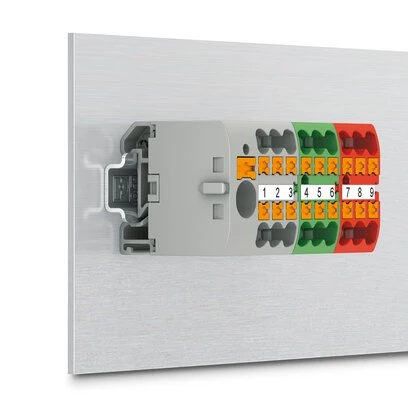

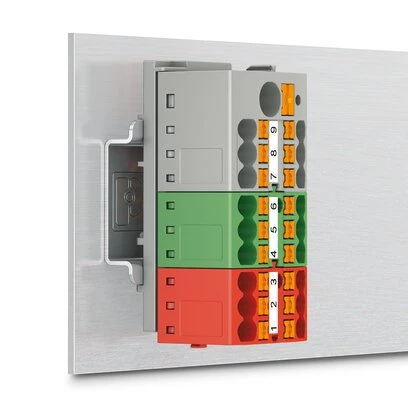

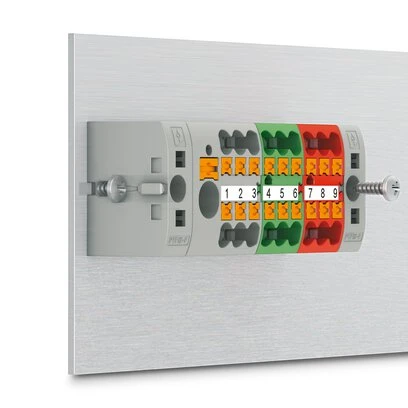

din rail/fixing support
NS 35/NS 15
eclass-11.0
27141120
Specifications - Environmental Product Compliance:
No hazardous substances above threshold values
ambient air temperature for operation
-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
ETIM - 8
EC000897
overvoltage category
III
result
Test passed
permissible humidity (storage/transport)
30 % ... 70 %
unspsc 21.0
39121400
asd level
6.12 (m/s²)²/Hz
time of exposure
30 s
number of shocks per direction
3
pulse shape
Half-sine
shock duration
18 ms
specification
DIN EN 50155 (VDE 0115-200):2008-03
spectrum
Service life test category 2, bogie-mounted
test directions
X-, Y- and Z-axis (pos. and neg.)
test duration per axis
5 h
