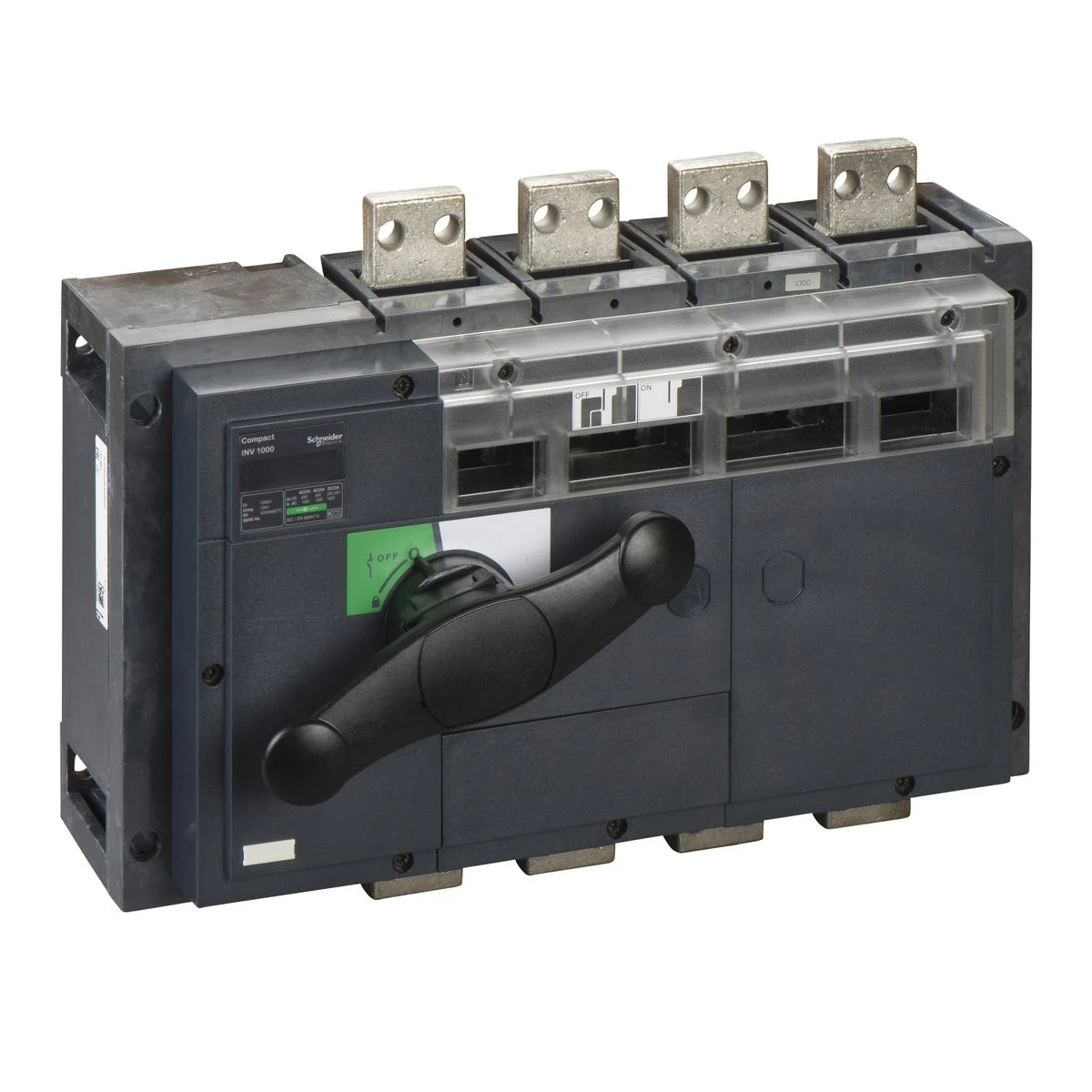

31361 - switch disconnector, Compact INV1000, visible break, 1000 A, standard version with black rotary handle, 4 poles - Schneider Electric

Expected in 2-4 weeks

1 110,90 € excl. VAT

1 355,29 € incl. VAT

Text About:

switch disconnector, Compact INV1000, visible break, 1000 A, standard version with black rotary handle, 4 poles - Schneider Electric

In cart

1 355,29 €

SPECIFICATIONS

Main

Range ComPact

Visible break Yes

Product Name ComPacT INS

[ui] rated insulation voltage 1000 V AC 50/60 Hz

Complementary

[icm] rated short circuit making capacity 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
75 kA switch-disconnector alone 690 V AC at 50/60 Hz

[ie] rated operational current AC-21A: 1000 A AC 50/60 Hz 220/240 V
AC-21A: 1000 A AC 50/60 Hz 380/415 V
AC-21A: 1000 A AC 50/60 Hz 440/480 V
AC-21A: 1000 A AC 50/60 Hz 480 V NEMA
AC-21A: 1000 A AC 50/60 Hz 500/525 V
AC-21A: 1000 A AC 50/60 Hz 660/690 V
AC-22A: 1000 A AC 50/60 Hz 220/240 V
AC-22A: 1000 A AC 50/60 Hz 380/415 V
AC-22A: 1000 A AC 50/60 Hz 440/480 V
AC-22A: 1000 A AC 50/60 Hz 480 V NEMA
AC-22A: 1000 A AC 50/60 Hz 500/525 V
AC-22A: 1000 A AC 50/60 Hz 660/690 V
AC-23A: 1000 A AC 50/60 Hz 220/240 V
AC-23A: 1000 A AC 50/60 Hz 380/415 V
AC-23A: 1000 A AC 50/60 Hz 440/480 V
AC-23A: 1000 A AC 50/60 Hz 480 V NEMA
AC-23A: 1000 A AC 50/60 Hz 500/525 V
AC-23A: 1000 A AC 50/60 Hz 660/690 V
DC-21A: 1000 A DC 125 V 2 poles in series
DC-22A: 1000 A DC 125 V 2 poles in series
DC-21A: 1000 A DC 250 V 4 poles in series
DC-22A: 1000 A DC 250 V 4 poles in series
DC-23B: 1000 A DC 125 V 2 poles in series
DC-23B: 1000 A DC 250 V 4 poles in series

[ue] rated operational voltage 690 V AC 50/60 Hz
250 V DC

[icw] rated short-time withstand current 10 kA during 20 s conforming to IEC 60947-3
20 kA during 3 s conforming to IEC 60947-3
35 kA during 1 s conforming to IEC 60947-3
42 kA during 0.8 s conforming to IEC 60947-3
50 kA during 0.5 s conforming to IEC 60947-3
8 kA during 30 s conforming to IEC 60947-3

[ith] conventional thermal current 1000 A at 60 °C

Control type Direct front rotary handle

Handle colour Black

intermittent duty class Class 120 - 60 %

Product certifications KEMA-KEUR

Connection pitch 70 mm

Handle front plate colour 300 mm

Product or component type Switch disconnector

[uimp] rated impulse withstand voltage 12 kV

Contact position indication Yes

width (w) 340 mm

network frequency 50/60 Hz

Ik degree of protection IK07 conforming to EN 50102

Mounting mode Fixed

maximum power AC-23: 315 kW at 220/240 V AC 50/60 Hz
AC-23: 560 kW at 380/400 V AC 50/60 Hz
AC-23: 630 kW at 415 V AC 50/60 Hz
AC-23: 710 kW at 500/525 V AC 50/60 Hz
AC-23: 900 kW at 660/690 V AC 50/60 Hz

Net weight 18 kg

Downside connection Front

Mounting support Rail
Plate

depth 146.5 mm

mechanical durability 3000 cycles

electrical durability AC-21A: 500 cycles 220/240 V AC 50/60 Hz
AC-21A: 500 cycles 380/415 V AC 50/60 Hz
AC-21A: 500 cycles 440/480 V AC 50/60 Hz
AC-21A: 500 cycles 500/525 V AC 50/60 Hz
AC-21A: 500 cycles 660/690 V AC 50/60 Hz
AC-22A: 500 cycles 220/240 V AC 50/60 Hz
AC-22A: 500 cycles 380/415 V AC 50/60 Hz
AC-22A: 500 cycles 440/480 V AC 50/60 Hz
AC-22A: 500 cycles 500/525 V AC 50/60 Hz
AC-22A: 500 cycles 660/690 V AC 50/60 Hz
AC-23A: 500 cycles 220/240 V AC 50/60 Hz
AC-23A: 500 cycles 380/415 V AC 50/60 Hz
AC-23A: 500 cycles 440/480 V AC 50/60 Hz
AC-23A: 500 cycles 500/525 V AC 50/60 Hz
AC-23A: 500 cycles 660/690 V AC 50/60 Hz
DC-21A: 500 cycles 125 V DC 2 poles in series
DC-22A: 500 cycles 125 V DC 2 poles in series
DC-23A: 500 cycles 125 V DC 2 poles in series
DC-21A: 500 cycles 250 V DC 4 poles in series
DC-22A: 500 cycles 250 V DC 4 poles in series
DC-23A: 500 cycles 250 V DC 4 poles in series

Network type DC
AC

Pollution degree 3

Rated duty Uninterrupted

Suitability for isolation Yes

Poles description 4P

Upside connection Front

Environment

Ambient air temp for storage/transportation -50…85 °C

ip degree of protection IP40 conforming to IEC 60529

ambient air temperature for operation -25…70 °C

standards IEC 60947-3
IEC 60947-1
