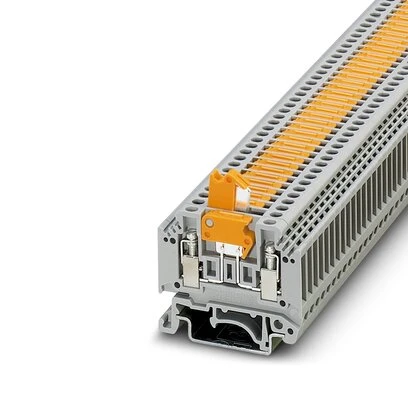

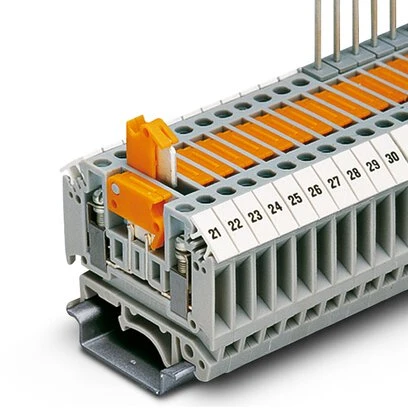

3101016 - MTK - Phoenix Contact
Expected in 2-4 weeks
SPECIFICATIONS
Main
calorimetric heat release nfpa 130 (astm e 1354)
27,5 MJ/kg
catalog page
Page 512 (C-1-2019)
flammability rating according to ul 94
V0
insulating material
PA
fire protection for rail vehicles (din en 45545-2) r22
HL 1 - HL 3
relative insulation material temperature index (elec., ul 746 b)
130 °C
fire protection for rail vehicles (din en 45545-2) r23
HL 1 - HL 3
gtin
4017918092573
number of rows
1

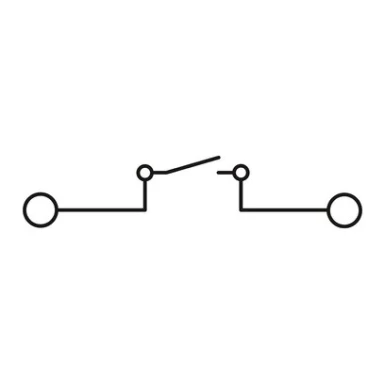

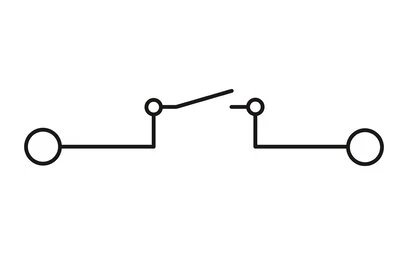

Product type
Disconnect terminal block
fire protection for rail vehicles (din en 45545-2) r24
HL 1 - HL 3
item number
3101016
potentials
1
fire protection for rail vehicles (din en 45545-2) r26
HL 1 - HL 3
nominal cross section
2.5 mm²
packing unit
50 pc
product key
BE1231
insulating material group
I
weight per piece (excluding packing)
8.9 g
weight per piece (including packing)
9.342 g
smoke gas toxicity nfpa 130 (smp 800c)
passed
specific optical density of smoke nfpa 130 (astm e 662)
passed
static insulating material application in cold
-60 °C
surface flammability nfpa 130 (astm e 162)
passed
temperature index of insulation material (din en 60216-1 (vde 0304-21))
125 °C
Complementary
2 conductors with same cross section, flexible
0.2 mm² ... 1.5 mm²
end cover width
1 mm
maximum power dissipation for nominal condition
0.77 W
open side panel
Yes
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.25 mm² ... 1.5 mm²
height ns 32
56.5 mm
height ns 35/7,5
51.5 mm
number of connections
2
rated surge voltage
6 kV
2 conductors with same cross section, solid
0.2 mm² ... 1.5 mm²
conductor cross section, flexible [awg]
24 ... 12 (converted acc. to IEC)
Country of origin
PL
height ns 35/15
59 mm
length [l]
46 mm
2 conductors with the same cross section, flexible, with twin ferrule with plastic sleeve
0.5 mm² ... 1.5 mm²
conductor cross section, rigid [awg]
0.2 mm² ... 4 mm²
Handle front plate colour
2.028 "
tightening torque
0.5 ... 0.6 Nm
connection in acc. with standard
IEC 60947-7-1
cross section awg
24 ... 12 (converted acc. to IEC)
conductor cross section flexible, with ferrule without plastic sleeve
0.25 mm² ... 2.5 mm²
flexible conductor cross section (ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm²
nominal voltage
400 V (up to 690 V for pollution degree II)
internal cylindrical gage
A3
number of connections per level
2
width (w)
5.2 mm
cross-section with insertion bridge, flexible
2.5 mm²
screw thread
M3
Colour
gray
cross-section with insertion bridge, rigid
4 mm²
stripping length
7 mm
Minimum order quantity
1 pc
nominal current
16 A (with 4 mm² conductor cross section)
Maximum load current
16 A (with 4 mm² conductor cross section)
Environment
Ambient air temp for storage/transportation
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient air temperature for installation
-5 °C ... 70 °C
ambient temperature (actuation)
-5 °C ... 70 °C
china rohs
Environmentally friendly use period: unlimited = EFUP-e
Customs tariff number
85369010
degree of pollution
3
eclass-11.0
27141126
Specifications - Environmental Product Compliance:
No hazardous substances above threshold values
ambient air temperature for operation
-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
eclass-12.0
27141126
ETIM - 8
EC000902
overvoltage category
III
permissible humidity (storage/transport)
30 % ... 70 %
unspsc 21.0
39121400
