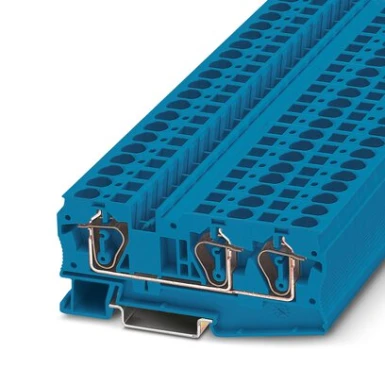

3036479 - ST 6-TWIN BU - Phoenix Contact

Pending restock
3036479 - ST 6-TWIN BU - Phoenix Contact - ST 6-TWIN BU - Phoenix Contact - 0
3036479 - ST 6-TWIN BU - Phoenix Contact - ST 6-TWIN BU - Phoenix Contact - 1
3036479 - ST 6-TWIN BU - Phoenix Contact
1,59 € excl. VAT
1,97 € incl. VAT
Text About:
ST 6-TWIN BU - Phoenix Contact
1,97 €
SPECIFICATIONS
Additional Information
- at bridging between non-adjacent terminal blocks 440 V
bridge data 35 A / 6 mm²
connection capacity awg 24 ... 10
- at cut-to-length bridging 275 V
connection capacity flexible 0.2 mm² ... 6 mm²
connection capacity rigid 0.2 mm² ... 10 mm²
identification  II 2 GD  Ex eb IIC Gb
ex temperature increase 40 K (39.9 A / 6 mm²)
output (Permanent)
for bridging with bridge 550 V
rated cross section awg 10
Main
catalog page Page 237 (C-1-2019)
flammability rating according to ul 94 V0
insulating material PA
fire protection for rail vehicles (din en 45545-2) r22 HL 1 - HL 3
relative insulation material temperature index (elec., ul 746 b) 130 °C
fire protection for rail vehicles (din en 45545-2) r23 HL 1 - HL 3
gtin 4017918886820
number of rows 1
Product type Multi-conductor terminal block
fire protection for rail vehicles (din en 45545-2) r24 HL 1 - HL 3
item number 3036479
potentials 1
Rated voltage 550 V
fire protection for rail vehicles (din en 45545-2) r26 HL 1 - HL 3
nominal cross section 6 mm²
packing unit 50 pc
product key BE2112
insulating material group I
weight per piece (excluding packing) 22.452 g
weight per piece (including packing) 22.452 g
smoke gas toxicity nfpa 130 (smp 800c) passed
specific optical density of smoke nfpa 130 (astm e 662) passed
static insulating material application in cold -60 °C
surface flammability nfpa 130 (astm e 162) passed
Complementary
end cover width 2.2 mm
maximum power dissipation for nominal condition 1.31 W
open side panel Yes
[in] rated current 36 A
height ns 35/7,5 43.5 mm
number of connections 3
rated surge voltage 8 kV
conductor cross section, flexible [awg] 24 ... 10 (converted acc. to IEC)
Country of origin PL
height ns 35/15 51 mm
length [l] 90.5 mm
2 conductors with the same cross section, flexible, with twin ferrule with plastic sleeve 0.5 mm² ... 1.5 mm²
conductor cross section, rigid [awg] 0.2 mm² ... 10 mm²
connection in acc. with standard IEC 60947-7-1
cross section awg 24 ... 8 (converted acc. to IEC)
Rated insulation voltage 500 V
conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² ... 6 mm²
flexible conductor cross section (ferrule with plastic sleeve) 0.25 mm² ... 6 mm²
nominal voltage 1000 V
internal cylindrical gage A5
number of connections per level 3
width (w) 8.2 mm
Colour blue
stripping length 12 mm
Minimum order quantity 50 pc
nominal current 41 A
contact resistance 0.68 mΩ
frequency f1 = 5 Hz to f2 = 250 Hz
Maximum load current 46 A
Environment
acceleration 30g
Ambient air temp for storage/transportation -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient air temperature for installation -5 °C ... 70 °C
ambient temperature (actuation) -5 °C ... 70 °C
china rohs Environmentally friendly use period: unlimited = EFUP-e
Customs tariff number 85369010
degree of pollution 3
din rail/fixing support NS 35
eclass-11.0 27141120
requirement temperature-rise test Increase in temperature ≤ 45 K
Specifications - Environmental Product Compliance: No hazardous substances above threshold values
ambient air temperature for operation -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
ETIM - 8 EC000897
overvoltage category III
result Test passed
revolutions 135
operating temperature range -60 °C ... 110 °C
rotation speed 10 rpm
short-time withstand current 10 mm² 1.2 kA
short-time withstand current 6 mm² 0.72 kA
test force setpoint 5 N
test voltage setpoint 2.2 kV
permissible humidity (storage/transport) 30 % ... 70 %
unspsc 21.0 39121400
asd level 11.83 (m/s²)²/Hz
time of exposure 30 s
number of shocks per direction 3
pulse shape Half-sine
shock duration 18 ms
specification DIN EN 50155 (VDE 0115-200):2008-03
spectrum Service life test category 2, bogie-mounted
temperature cycles 192
test directions X-, Y- and Z-axis (pos. and neg.)
test duration per axis 5 h
About this product

The 3036479 - ST 6-TWIN BU is developed to cover the desires of technical experts, such as electrical contractors, electrical technicians, facility management firms, and equipment creators. 3036479 grants outstanding quality and merit for contractors in the electrical and automation industry. This ST 6-TWIN BU and other Terminal Blocks, Cable Ends from Phoenix Contact can be bought at the most favorable cost and shipping time through BaltElec website, a trustworthy vendor aiding professionals in their procurement needs.

Contractors who have opted for Phoenix Contact Terminal Blocks, Cable Ends have invariably commended the creator's stability. It has been specified that the superlative workmanship of 3036479 - ST 6-TWIN BU extends to a array of use. Its first-rate aspects make it right choice to suit a variety of needs, ensuring your industrial, tertiary and automation projects success.

Our team dedicates in providing for industrial and tertiary professionals’ needs. We know the distinct criteria and preferences of our clients in the industry. By working with BALTELEC, our customers receive access to the top rates and supply timeline of top-tier products like 3036479 - ST 6-TWIN BU from Phoenix Contact at a competitive price. Our registered accounts enjoy further discounts and first-class attention.

Don't wait and secure 3036479 - ST 6-TWIN BU at our risk-free and efficient digital marketplace. Don't delay in making this smart resolution that warrants the supreme quality and matches the distinct standards of clients like your firm.

If you face any problems or concerns about 3036479 - ST 6-TWIN BU or any other Phoenix Contact products, connect with us or refer to our Support section section below. We have brought together answers to standard matters to guide you further in making an well-informed decision about industrial and tertiary electrical components.

Remember, 3036479 - ST 6-TWIN BU from Phoenix Contact is reliable, reasonable, and superior to its rivals in the Terminal Blocks, Cable Ends category. Make it a part of your inventory promptly. Snap up at BALTELEC, your preferred supplier for all your Phoenix Contact.

In our Baltelec.eu digital store you will spot ST 6-TWIN BU - 3036479 worth 1.93 €, which will be a safe and modern solution for your needs. This product is developed by the Phoenix Contact brand using the modern technologies and meets the leading standards of defense and performance. We extend products from the Terminal Blocks, Cable Ends category that mix durability and effectiveness, which is an fine option for various applications. Notwithstanding of whether you necessitate machinery for small manufacturing or for competent industrial purpose, ST 6-TWIN BU will be a secure adjunct in your assignment.

Baltelec works to make the securing process as manageable and fast as workable for our clients. We offer detailed depictions and high-quality depictions of ST 6-TWIN BU so that you can make an educated choice. A team of professionals is always ready to help you with any concerns in the Terminal Blocks, Cable Ends section relevant to the electing and use of merchandise. We are assured that ST 6-TWIN BU will meet your demands and become an key element of your apparatus for just 1.93 €.
