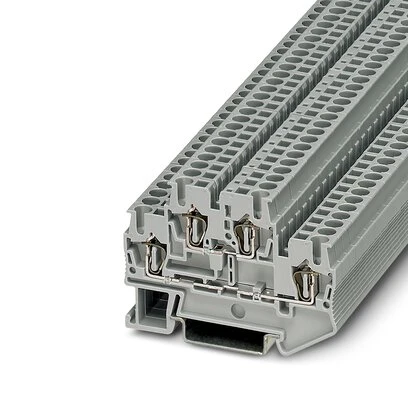

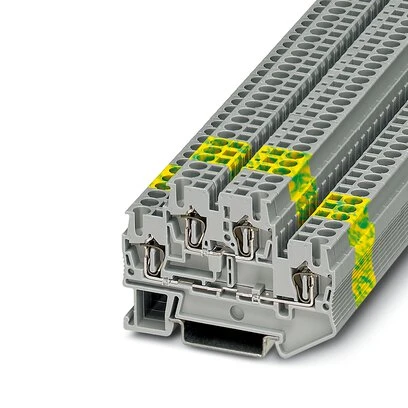

3031270 - STTB 2,5 - Phoenix Contact

Pending restock
3031270 - STTB 2,5 - Phoenix Contact - STTB 2,5 - Phoenix Contact - 0
3031270 - STTB 2,5 - Phoenix Contact - STTB 2,5 - Phoenix Contact - 1
3031270 - STTB 2,5 - Phoenix Contact - STTB 2,5 - Phoenix Contact - 2
3031270 - STTB 2,5 - Phoenix Contact
1,04 € excl. VAT
1,29 € incl. VAT
Text About:
STTB 2,5 - Phoenix Contact
1,29 €
SPECIFICATIONS
Additional Information
- at bridging between non-adjacent terminal blocks 352 V
bridge data 17 A / 2.5 mm²
connection capacity awg 28 ... 14
- at cut-to-length bridging 220 V
connection capacity flexible 0.08 mm² ... 2.5 mm²
connection capacity rigid 0.08 mm² ... 4 mm²
identification  II 2 GD  Ex eb IIC Gb
ex temperature increase 40 K (21.9 A / 2.5 mm²)
output (Permanent)
for bridging with bridge 440 V
rated cross section awg 14
Main
calorimetric heat release nfpa 130 (astm e 1354) 27,5 MJ/kg
catalog page Page 212 (C-1-2019)
flammability rating according to ul 94 V0
insulating material PA
fire protection for rail vehicles (din en 45545-2) r22 HL 1 - HL 3
relative insulation material temperature index (elec., ul 746 b) 130 °C
fire protection for rail vehicles (din en 45545-2) r23 HL 1 - HL 3
gtin 4017918186814
number of rows 2
Product type Multi-level terminal block
fire protection for rail vehicles (din en 45545-2) r24 HL 1 - HL 3
item number 3031270
potentials 2
Rated voltage 440 V
fire protection for rail vehicles (din en 45545-2) r26 HL 1 - HL 3
nominal cross section 2.5 mm²
packing unit 50 pc
product key BE2114
insulating material group I
weight per piece (excluding packing) 9.839 g
weight per piece (including packing) 10.495 g
smoke gas toxicity nfpa 130 (smp 800c) passed
specific optical density of smoke nfpa 130 (astm e 662) passed
static insulating material application in cold -60 °C
surface flammability nfpa 130 (astm e 162) passed
temperature index of insulation material (din en 60216-1 (vde 0304-21)) 125 °C
Complementary
end cover width 2.2 mm
maximum power dissipation for nominal condition 0.77 W
open side panel Yes
[in] rated current 19.5 A
height ns 35/7,5 47.5 mm
number of connections 4
rated surge voltage 6 kV
conductor cross section, flexible [awg] 28 ... 14 (converted acc. to IEC)
Country of origin DE
height ns 35/15 55 mm
length [l] 67.5 mm
2 conductors with the same cross section, flexible, with twin ferrule with plastic sleeve 0.5 mm²
conductor cross section, rigid [awg] 0.08 mm² ... 4 mm²
Handle front plate colour 1.87 "
connection in acc. with standard IEC 60947-7-1
cross section awg 28 ... 12 (converted acc. to IEC)
Rated insulation voltage 400 V
conductor cross section flexible, with ferrule without plastic sleeve 0.14 mm² ... 2.5 mm²
flexible conductor cross section (ferrule with plastic sleeve) 0.14 mm² ... 2.5 mm²
nominal voltage 500 V
internal cylindrical gage A3
number of connections per level 2
width (w) 5.2 mm
Colour gray
stripping length 8 mm ... 10 mm
Minimum order quantity 1 pc
nominal current 22 A
contact resistance 0.83 mΩ
frequency f1 = 5 Hz to f2 = 250 Hz
Maximum load current 23.5 A
Environment
acceleration 30g
Ambient air temp for storage/transportation -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient air temperature for installation -5 °C ... 70 °C
ambient temperature (actuation) -5 °C ... 70 °C
china rohs Environmentally friendly use period: unlimited = EFUP-e
Customs tariff number 85369010
degree of pollution 3
din rail/fixing support NS 32/NS 35
eclass-11.0 27141120
requirement temperature-rise test Increase in temperature ≤ 45 K
Specifications - Environmental Product Compliance: No hazardous substances above threshold values
ambient air temperature for operation -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
ETIM - 8 EC000897
overvoltage category III
result Test passed
revolutions 135
operating temperature range -60 °C ... 110 °C
rotation speed 10 (+/- 2) rpm
test force setpoint 1 N
test voltage setpoint 1.89 kV
permissible humidity (storage/transport) 30 % ... 70 %
unspsc 21.0 39121400
asd level 6.12 (m/s²)²/Hz
time of exposure 30 s
number of shocks per direction 3
pulse shape Half-sine
shock duration 18 ms
specification DIN EN 50155 (VDE 0115-200):2008-03
spectrum Service life test category 2, bogie-mounted
temperature cycles 192
test directions X-, Y- and Z-axis (pos. and neg.)
test duration per axis 5 h
About this product

The 3031270 - STTB 2,5 is produced to cover the requirements of industry specialists, such as panel manufacturers, electric engineers, facility management firms, and OEMs. 3031270 yields outstanding durability and worth for engineers in the electrical and automation industry. This STTB 2,5 and other Terminal Blocks, Cable Ends from Phoenix Contact are accessible at the most favorable cost and shipping time through BaltElec website, a distinguished purveyor catering to consultants in their provision needs.

Professionals who have chosen Phoenix Contact Terminal Blocks, Cable Ends have continuously admired the creator's resilience. It has been indicated that the impressive performance of 3031270 - STTB 2,5 extends to a array of deployments. Its exceptional qualities make it great selection to satisfy a wide array of needs, securing success in your industrial, tertiary, and automation endeavors.

BaltElec team commits in fulfilling industrial and tertiary professionals’ needs. We understand the specific demands and anticipations of our stakeholders in the field. By collaborating with our specialists, our partners secure access to the best price and availability of high-quality products like 3031270 - STTB 2,5 from Phoenix Contact at a value-for-money price. Registered users receive extra discounts and top-tier service.

Move quickly and order 3031270 - STTB 2,5 at our dependable and user-friendly platform. Don't delay in making this intelligent pick that ensures the superior quality and meets the personalized expectations of purchasers like your team.

If there are any matters or concerns about 3031270 - STTB 2,5 or any other Phoenix Contact products, email us or refer to our Information center section below. We have consolidated answers to typical queries to back you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, 3031270 - STTB 2,5 from Phoenix Contact is safe, cost-effective, and top-notch to its counterparts in the Terminal Blocks, Cable Ends category. Feel free to make it a part of your installation immediately. Shop with confidence at BaltElec, your esteemed seller for all your Phoenix Contact.

In our Baltelec.eu dot-com store you will spot STTB 2,5 - 3031270 worth 1.27 €, which will be a dependable and state-of-the-art solution for your requirements. This merchandise is invented by the Phoenix Contact brand using the up-to-the-minute technologies and fulfills the highest standards of security and efficacy. We furnish goods from the Terminal Blocks, Cable Ends category that blend endurance and utility, which is an premium possibility for various intents. Notwithstanding of whether you desire tools for small construction or for professional industrial operation, STTB 2,5 will be a trustworthy adjunct in your job.

Baltelec strives to make the procuring process as straightforward and fast as accomplishable for our clients. We offer detailed outlines and high-quality photos of STTB 2,5 so that you can make an enlightened choice. A team of professionals is always ready to help you with any issues in the Terminal Blocks, Cable Ends section related to the deciding and use of equipment. We are sure that STTB 2,5 will meet your requirements and become an important element of your machinery for just 1.27 €.

Frequently Asked Questions about 3031270:

  • What are the benefits of ordering 3031270 from BaltElec?

    When you buy Phoenix Contact 3031270 from Baltelec online store, you will get authentic quality Phoenix Contact Terminal Blocks, Cable Ends products at the best prices and delivery schedule. Additionally, loyal buyerstake pleasure in additional savings and preferred assistance.

  • Can Baltelec consult if 3031270 suits for my contract?

    To verify that 3031270 - STTB 2,5 is appropriate for your use case, we offer comprehensive details concerning product's specifications, technical characteristics, and compatibility. You can find this information on the specific page of the item name. If you require further assistance, our customer support representative is prepared to help you in reaching an well-informed choice.

  • Which warranty coverage is provided for 3031270 - STTB 2,5?

    Baltelec.eu team stands for the excellence of the items we offer. The regular warranty coverage for Phoenix Contact Terminal Blocks, Cable Ends including 3031270 - STTB 2,5 is 1 year. However, it is subject depending on the individual product, category, and may even be extended. You can discover comprehensive warranty details on the Phoenix Contact STTB 2,5 product page or by contacting our customer service team.

  • Can you provide worldwide shipping for 3031270 including other Phoenix Contact items?

    Yes. Apart from catering to Estonia, Latvia, Lithuania and other European Union countries, we provide international shipping for Phoenix Contact STTB 2,5. Please be aware that delivery options, costs, and delivery schedule can differ depending on the shipping location. In the case of volume purchases, feel free to reach out to BALTELEC sales representatives.

  • Do Phoenix Contact MBC provided by BALTELEC comply with global standards for safety and reliability?

    Completely. All Phoenix Contact products available at BALTELEC online store conform to international norms such as IEC 60898-1 standard and carry the CE certification. Such standards guarantee that the products meet strict security, technical, reliability, and functional requirements.

  • Can BALTELEC offer assistance on integrating renewable energy solutions, such as solar energy systems or wind power converters, into my projects?

    Absolutely!  Baltelec website recognizes the significance of renewable energy incorporation within projects. Our group of experts can help you in picking the suitable Phoenix Contact items, to incorporate them into your renewable energy projects}. We can provide recommendations on integrating solar power systems, wind power converters, and additional eco-friendly options to optimize energy generation and efficiency.

  • Are there eco-friendly options available within the Terminal Blocks, Cable Ends category to support green energy initiatives?

    Certainly! BaltElec offers a wide range of energy-efficient solutions within the Terminal Blocks, Cable Ends category that are aligned with environmental sustainability objectives. Our brand's Phoenix Contact products, including the STTB 2,5, are crafted with energy efficiency in mind. By incorporating these products into your electrical system, you can maximize energy usage and reduce environmental impact. Additionally, we offer competitive pricing for our energy-efficient Phoenix Contact products,, making them an cost-effective choice for promoting sustainability.

  • Is STTB 2,5 offered by BaltElec e-shop authentic?

    Absolutely, we exclusively offer authentic Phoenix Contact products, such as STTB 2,5. We obtain our products exclusively through official distribution channels to ensure their legitimacy and excellent performance.
