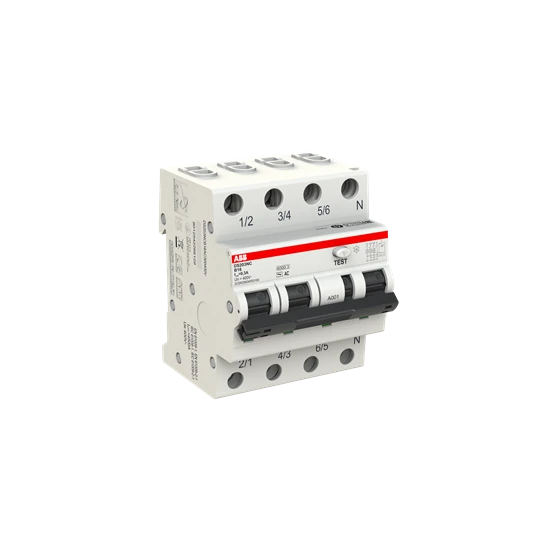

2CSR256040R3165 - DS203NC B16 AC300 - ABB

Expected in 2-4 weeks

2CSR256040R3165 - DS203NC B16 AC300 - ABB - DS203NC B16 AC300 - ABB - 1

2CSR256040R3165 - DS203NC B16 AC300 - ABB - DS203NC B16 AC300 - ABB - 2

2CSR256040R3165 - DS203NC B16 AC300 - ABB

262,00 € excl. VAT

319,64 € incl. VAT

Text About:

DS203NC B16 AC300 - ABB

In cart

319,64 €

SPECIFICATIONS

Additional Information

Connecting capacity Busbar 10 mm²
Rigid 25 ... 25 mm²
Flexible 25 ... 25 mm²

curve B

Data sheet, technical information 2CSC423030B0201

Eclass V11.0 : 27142207

Package level 1 depth / length 0.073 m

Operating characteristic Instantaneous

Product net depth / length 0.069
m

Rohs status Following EU Directive 2011/65/EU

Weee category 5. Small Equipment (No External Dimension More Than 50 cm)

Main

Number of protected poles 3

degree of protection IP2X

sensitivity to earth leakage 300 mA

Complementary

Accessories available Yes

Ambient air temperature Operation -25...55 °C

Ccc certificate 2021980307001650

Cn8 85363010

Declaration of conformity - ce 9AKK106713A5597

Package level 1 gross weight 0.530 kg

Product net weight 0.480
kg

[in] rated current 16 A

Package level 1 height 0.096 m

Product net width 0.071
m

Country of origin Italy (IT)

Package level 1 units box 1 piece

Package level 1 width 0.076 m

Environmental information refer to RoHS information

Instructions and manuals 9AKK106713A8790

mechanical endurance 20000 cycle

Position of neutral terminals Right

Minimum order quantity 1 piece

Options provided None

Input voltage type AC

Power supply connection Arbitrary

Object classification code F

Rated conditional short-circuit current (inc) 10 kA

frequency 50/60 Hz

Network type AC type

Package level 1 ean 8012542266129

Rated cross-section 4 - Multi-Wired 1...25 mm²
1 - Solid-Core 25...25 mm²

Pollution degree 2

Product net height 0.085
m

Rated short-circuit capacity (230 / 400 V AC) 6 kA

Rated frequency (f) 50 … 60 Hz

Rated impulse withstand voltage (uimp) 4 kV

Rated insulation voltage (ui) 500 V

Rated service short-circuit breaking capacity, in % of icu (ics) 6 kA

Rated voltage (ur) 400-415 V AC

Power loss 10 W

Rated operational voltage 400 … 415 V AC

Reach declaration 9AKK108467A9482

Poles description 4

Rated ultimate short-circuit breaking capacity (icu) 10 kA

Environment

Built-in depth (t2) 69 mm

Customs tariff number 85363010

Electrical endurance 10000 cycle

Energy limiting class 3

Release type B

ETIM - 8 EC000905 - Earth leakage circuit breaker

overvoltage category III

standards IEC 61009-1
IEC 61009-2-1
EN 61009-1
EN 61009-2-1

Etim 7 EC000905 - Earth leakage circuit breaker

Width in number of modular spacings 4

Maximum surge current 0.25 kA

Earthing switch type Undelayed

Leakage current type AC

Weee b2c / b2b Business To Consumer

Rohs information 9AKK106713A5597
