2CSR255180R1104 - DS201 C10 A30 - ABB

Expected in 2-4 weeks

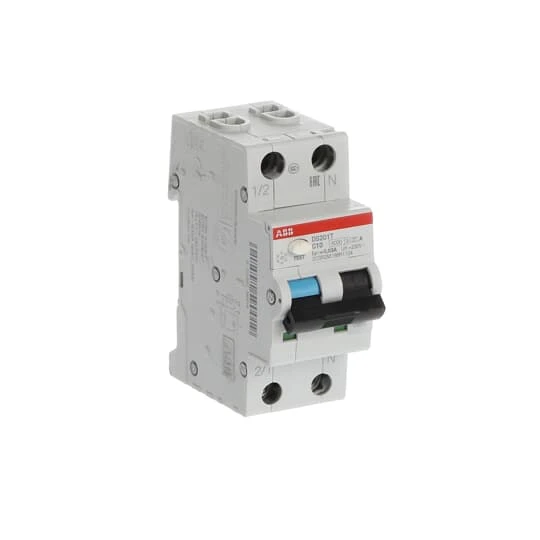

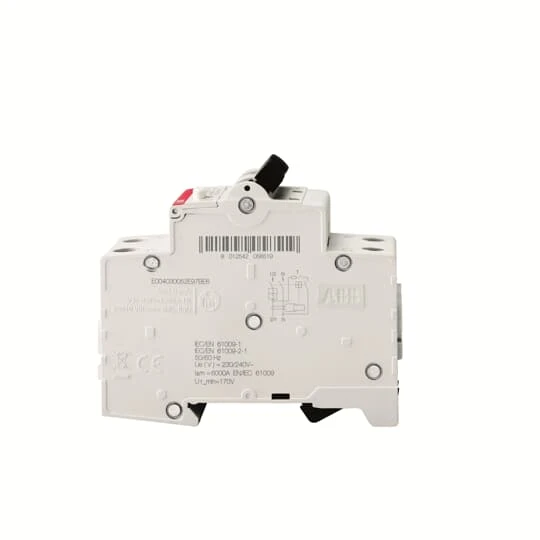

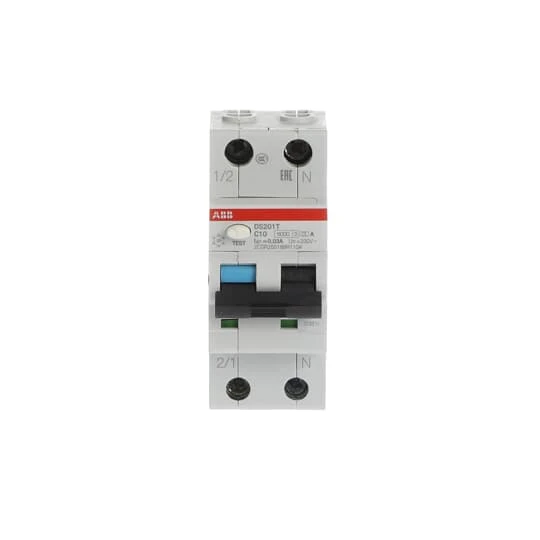

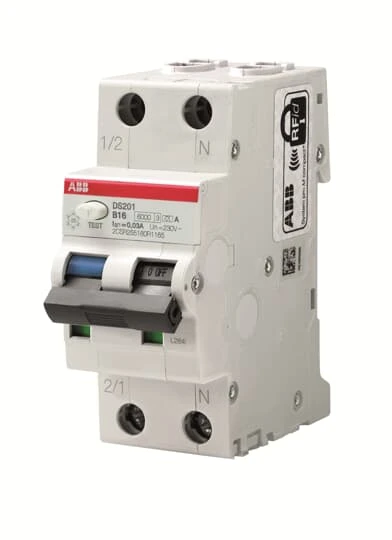

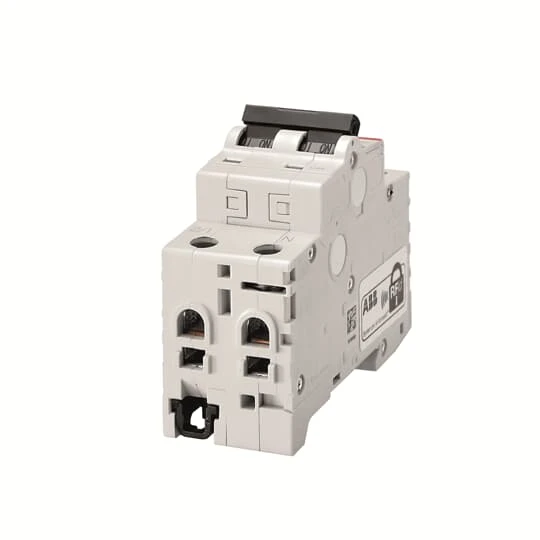

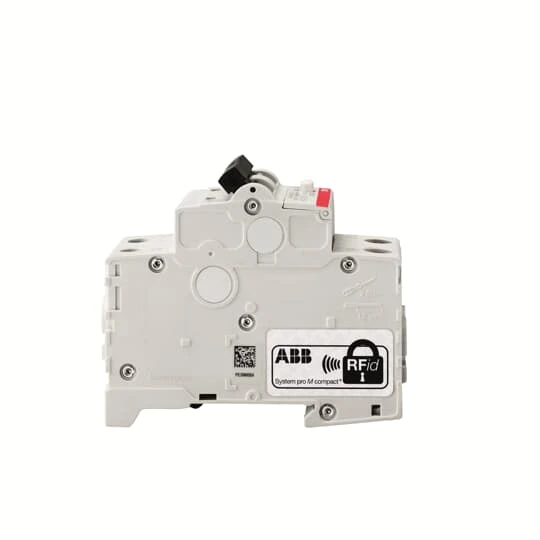

2CSR255180R1104 - DS201 C10 A30 - ABB - DS201 C10 A30 - ABB - 0
2CSR255180R1104 - DS201 C10 A30 - ABB - DS201 C10 A30 - ABB - 1
2CSR255180R1104 - DS201 C10 A30 - ABB - DS201 C10 A30 - ABB - 2
2CSR255180R1104 - DS201 C10 A30 - ABB - DS201 C10 A30 - ABB - 3
2CSR255180R1104 - DS201 C10 A30 - ABB - DS201 C10 A30 - ABB - 4
2CSR255180R1104 - DS201 C10 A30 - ABB - DS201 C10 A30 - ABB - 5
2CSR255180R1104 - DS201 C10 A30 - ABB
52,22 € excl. VAT
63,71 € incl. VAT
Text About:
DS201 C10 A30 - ABB
63,71 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 ... 10 mm²
Stranded 0.75 ... 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
curve C
Data sheet, technical information 9AKK107492A6187
E-number (sweden) 2100423
Eclass V11.0 : 27142207
Package level 1 depth / length 80 mm
Operating characteristic Instantaneous
Product net depth / length 0.069
m
Rohs status Following EU Directive 2011/65/EU
Resistance to vibrations acc 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Sev certificate 9AKK107680A1558


9AKK107680A1560
Main
Terminal type Screw Terminals
Number of protected poles 1
Mounting type on DIN rail EN 60715 (35mm) by means of mounting clip
degree of protection Terminals IP20
Housing IP40
sensitivity to earth leakage 30 mA
Complementary
Accessories available Yes
Accessory type Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device
Actuator type Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions
Ambient air temperature Operation -25...55 °C
Ccc certificate 9AKK107492A6067
Cn8 85363010
Declaration of conformity - ce 9AKK106713A5588
Package level 1 gross weight 225 g
Product net weight 0.200
kg
[in] rated current 10 A
Package level 1 height 106 mm
Product net width 0.035
m
[ics] rated service breaking capacity 7.5 kA
Cb certificate 9AKK107492A6060
Country of origin Italy (IT)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units box 1 piece
Package level 1 width 40 mm
tightening torque 2.8 N·m
Package level 2 depth / length 80 mm
Package level 2 ean 8012542573517
Contact position indication Red ON / Green OFF
Environmental information 2CSC422002K2701
Package level 2 gross weight 1125 g
Package level 2 height 106 mm
Package level 2 units box 5 piece
Dnv gl certificate 9AKK107680A3457


9AKK107680A3456
Instructions and manuals 9AKK107492A6006
mechanical endurance 20000 cycle
Package level 2 width 200 mm
Position of neutral terminals Right
fault indication Blue flag on toggle
Minimum order quantity 1 piece
Number of modular spacings per din rail 2
Input voltage type AC
Power supply connection Arbitrary
wire stripping length 12 mm
Object classification code F
Rated conditional short-circuit current (inc) 10 kA
frequency 50/60 Hz
Network type A type
Package level 1 ean 8012542737810
Pollution degree 2
Product net height 0.085
m
Rated short-circuit capacity 6 kA
mounting position Any
Rated frequency (f) 50 … 60 Hz
Primary rated impulse withstand voltage 4 kV
Rated insulation voltage (ui) 500 V
Rated voltage (ur) 230 V
Power loss 1.8 W
Rated residual breaking capacity (iδm) EN 61009-1 6000 A
IEC 61009-1 6000 A
Rated operational voltage 230 / 240 V AC
Reach declaration 9AKK108467A9482
Poles description 2
Resistance to shock acc 25g 2 shocks 13 ms
Test voltage (ut) 170 ... 264 V
Öve certificate 9AKK107492A6085
Rated ultimate short-circuit breaking capacity (icu) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85363010
EAC certificate 9AKK107492A6071


9AKK107991A7755
Electrical endurance 10000 cycle
Energy limiting class 3
Eplan catalog tree Electrical engineering / Protection devices / Ground fault current circuit breaker
Housing type Insulation group I - II, RAL 7035
Release type C
Cable size 25 mm²
Eplan macro 9AKK107680A0597
ETIM - 8 EC000905 - Earth leakage circuit breaker
Gost certificate 9AKK107992A1640
overvoltage category III
Rmrs certificate 9AKK107680A3454


9AKK107680A3455
standards IEC/EN 61009-1, IEC/EN 61009-2-1
Etim 7 EC000905 - Earth leakage circuit breaker
Width in number of modular spacings 2
Reference ambient air temperature 30 °C
Leakage current type A
Weee b2c / b2b Business To Consumer
E-number (finland) 3211154
Rohs information 9AKK106713A5588
Kema certificate 9AKK107492A6076
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
dielectric test voltage 2 kV
Vde certificate 9AKK107492A6092
About this product

The 2CSR255180R1104 - DS201 C10 A30 is engineered to respond to the expectations of sector experts, such as switchboard fabricators, electricians, management services, and original manufacturers. 2CSR255180R1104 dispenses extraordinary performance and value for specialists in the electrical and automation industry. This DS201 C10 A30 and other DS201 from ABB can be ordered at the finest pricing and shipping time through baltelec.eu, a distinguished dealer supporting experts in their procurement needs.

Engineers who have purchased ABB DS201 have continuously applauded the producer's reliability. It has been highlighted that the notable performance of 2CSR255180R1104 - DS201 C10 A30 extends to a variety of purposes. Its first-rate aspects make it fitting to cater to varied requirements, assuring the success of your industrial, tertiary, and automation ventures.

Our company devotes in serving industrial and tertiary professionals’ needs. We appreciate the special specifications and requirements of our patrons in the industry. By joining forces with our professionals, your organization receive access to the leading costs and stock of premium products like 2CSR255180R1104 - DS201 C10 A30 from ABB at a value-for-money price. Account holders receive special savings and priority service.

Make a move and purchase 2CSR255180R1104 - DS201 C10 A30 at our protected and hassle-free platform. Don't delay in making this shrewd selection that validates the finest quality and fulfills the targeted standards of vendors like your outfit.

When you have any doubts or concerns about 2CSR255180R1104 - DS201 C10 A30 or any other ABB products, communicate with us or refer to our Knowledge base section below. We have provided answers to frequent questions to facilitate you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, 2CSR255180R1104 - DS201 C10 A30 from ABB is trustworthy, budget-friendly, and top-notch to its counterparts in the DS201 category. Don't hesitate to make it a part of your arrangement straight away. Get at Baltelec e-shop, your preferred supplier for all your professional electrical equipment and automation needs.

In our Baltelec.eu online store you will come across DS201 C10 A30 - 2CSR255180R1104 worth 63.71 €, which will be a sure and up-to-date solution for your wants. This article is produced by the ABB brand using the most recent technologies and obeys the uppermost standards of well-being and efficacy. We give objects from the DS201 category that amalgamate resilience and effectiveness, which is an fine selection for various operations. In defiance of whether you crave devices for small construction or for experienced industrial utilization, DS201 C10 A30 will be a trustworthy adjunct in your task.

Baltelec endeavors to make the securing process as smooth and fast as accomplishable for our purchasers. We offer detailed summaries and high-quality pictures of DS201 C10 A30 so that you can make an briefed choice. A team of professionals is always ready to help you with any doubts in the DS201 section connected to the determining and use of wares. We are guaranteed that DS201 C10 A30 will meet your prospects and become an imperative element of your setup for just 63.71 €.

Frequently Asked Questions about ABB DS201 C10 A30:
