2CSR255180R1017 - DS201 K1 A30 - ABB

Expected in 2-4 weeks

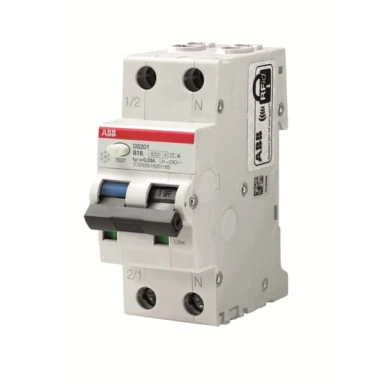

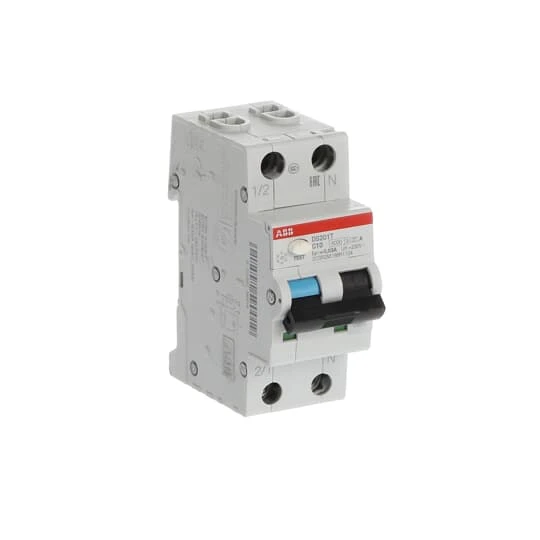

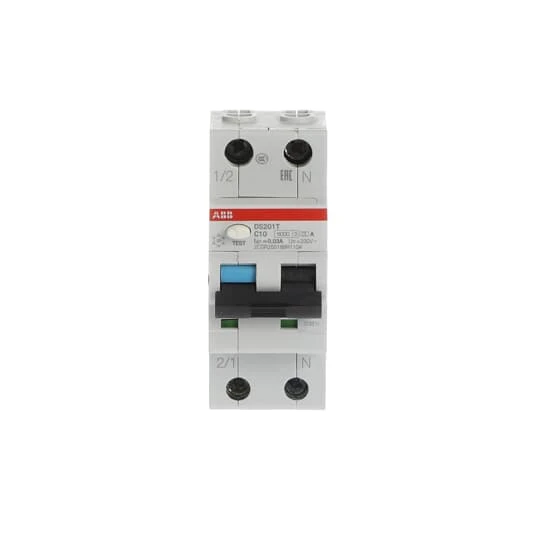

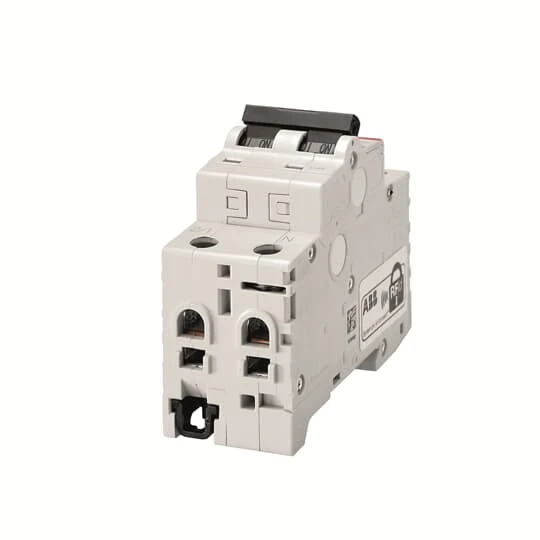

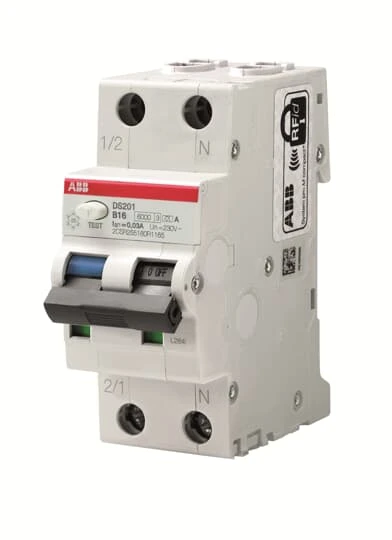

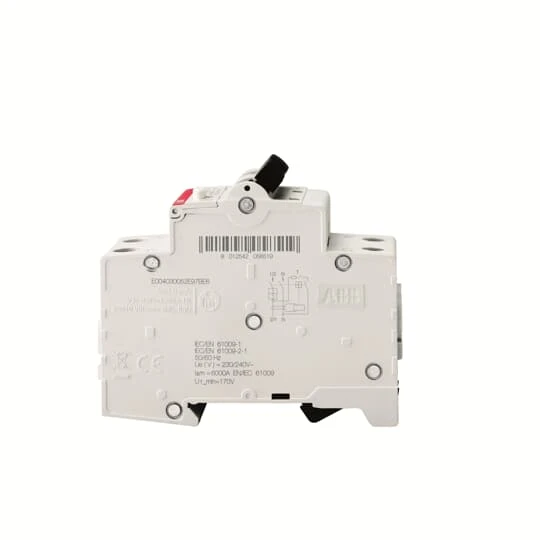

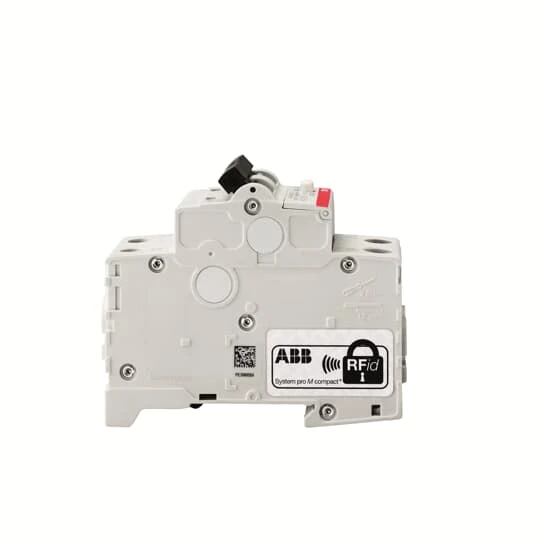

2CSR255180R1017 - DS201 K1 A30 - ABB - DS201 K1 A30 - ABB - 0
2CSR255180R1017 - DS201 K1 A30 - ABB - DS201 K1 A30 - ABB - 1
2CSR255180R1017 - DS201 K1 A30 - ABB - DS201 K1 A30 - ABB - 2
2CSR255180R1017 - DS201 K1 A30 - ABB - DS201 K1 A30 - ABB - 3
2CSR255180R1017 - DS201 K1 A30 - ABB - DS201 K1 A30 - ABB - 4
2CSR255180R1017 - DS201 K1 A30 - ABB - DS201 K1 A30 - ABB - 5
2CSR255180R1017 - DS201 K1 A30 - ABB
121,06 € excl. VAT
147,69 € incl. VAT
Text About:
DS201 K1 A30 - ABB
147,69 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 ... 10 mm²
Stranded 0.75 ... 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
curve K
Data sheet, technical information 9AKK107492A6187
E-number (sweden) 2100529
Eclass V11.0 : 27142207
Package level 1 depth / length 80 mm
Operating characteristic Instantaneous
Product net depth / length 0.069
m
Rohs status Following EU Directive 2011/65/EU
Resistance to vibrations acc 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
Terminal type Screw Terminals
Number of protected poles 1
Mounting type on DIN rail EN 60715 (35mm) by means of mounting clip
degree of protection Terminals IP20
Housing IP40
sensitivity to earth leakage 30 mA
Complementary
Accessories available Yes
Accessory type Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device
Actuator type Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions
Ambient air temperature Operation -25...55 °C
Cn8 85363010
Declaration of conformity - ce 9AKK106713A5588
Package level 1 gross weight 225 g
Product net weight 0.200
kg
[in] rated current 1 A
Package level 1 height 106 mm
Product net width 0.035
m
[ics] rated service breaking capacity 7.5 kA
Cb certificate 9AKK107492A6060
Country of origin Italy (IT)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units box 1 piece
Package level 1 width 40 mm
tightening torque 2.8 N·m
Package level 2 depth / length 80 mm
Package level 2 ean 8012542038214
Contact position indication Red ON / Green OFF
Environmental information 2CSC422002K2701
Package level 2 gross weight 1125 g
Package level 2 height 106 mm
Package level 2 units box 5 piece
Instructions and manuals 9AKK107492A6006
mechanical endurance 20000 cycle
Package level 2 width 200 mm
Position of neutral terminals Right
fault indication Blue flag on toggle
Minimum order quantity 1 piece
Number of modular spacings per din rail 2
Input voltage type AC
Power supply connection Arbitrary
wire stripping length 12 mm
Object classification code F
Rated conditional short-circuit current (inc) 10 kA
frequency 50/60 Hz
Network type A type
Package level 1 ean 8012542295310
Rated cross-section 1 - Solid-Core 0.75-25 mm²
4 - Multi-Wired 0.75-16 mm²
Pollution degree 2
Product net height 0.085
m
Rated short-circuit capacity 6 kA
mounting position Any
Rated frequency (f) 50 … 60 Hz
Primary rated impulse withstand voltage 4 kV
Rated impulse withstand voltage (uimp) 4 kV
Rated insulation voltage (ui) 500 V
Rated service short-circuit breaking capacity, in % of icu (ics) 6 kA
Rated voltage (ur) 230 V
Power loss 1.4 W
Rated residual breaking capacity (iδm) EN 61009-1 6000 A
IEC 61009-1 6000 A
Rated operational voltage 230 / 240 V AC
Reach declaration 9AKK108467A9482
Poles description 2
Resistance to shock acc 25g 2 shocks 13 ms
Test voltage (ut) 170 ... 264 V
Öve certificate 9AKK107492A6085
Rated ultimate short-circuit breaking capacity (icu) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85363010
Electrical endurance 10000 cycle
Energy limiting class 3
Eplan catalog tree Electrical engineering / Protection devices / Ground fault current circuit breaker
Housing type Insulation group I - II, RAL 7035
Release type K
Cable size 25 mm²
Eplan macro 9AKK107680A0597
ETIM - 8 EC000905 - Earth leakage circuit breaker
overvoltage category III
standards IEC/EN 61009-1, IEC/EN 61009-2-1
Etim 7 EC000905 - Earth leakage circuit breaker
Width in number of modular spacings 2
Reference ambient air temperature 20 °C
Earthing switch type Undelayed
Leakage current type A
Weee b2c / b2b Business To Consumer
E-number (finland) 3211177
Rohs information 9AKK106713A5588
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
dielectric test voltage 2 kV
About this product

The 2CSR255180R1017 - DS201 K1 A30 is developed to accommodate the needs of sector experts, such as panel manufacturers, electrical technicians, upkeep firms, and Original Equipment manufacturers. 2CSR255180R1017 affords remarkable standards and beneficence for technicians in the electrical engineering industry. This DS201 K1 A30 and other DS201 from ABB can be acquired at the most affordable rate and lead time through BALTELEC.EU, a well-regarded merchant supporting engineers in their purchasing needs.

Customers who have opted for ABB DS201 have commonly extolled the maker's durability. It has been indicated that the notable operation of 2CSR255180R1017 - DS201 K1 A30 extends to a broad spectrum of utilizations. Its first-rate elements make it suitable for multiple purposes, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our company devotes in accommodating industrial and tertiary professionals’ needs. We appreciate the specific specifications and demands of our stakeholders in the realm. By working with our specialists, your business obtain access to the superior price lists and availability of superior products like 2CSR255180R1017 - DS201 K1 A30 from ABB at an affordable price. Authorized buyers enjoy exclusive discounts and exclusive assistance.

Seize the moment and purchase 2CSR255180R1017 - DS201 K1 A30 at our verified and easy-to-use virtual storefront. Don't delay in making this shrewd action that certifies the finest quality and matches the unique necessities of professionals like your team.

Should you have any concerns or concerns about 2CSR255180R1017 - DS201 K1 A30 or any other ABB products, contact us or refer to our FAQs section below. We have amassed answers to regular queries to assist you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, 2CSR255180R1017 - DS201 K1 A30 from ABB is reliable, affordable, and better to other producers in the DS201 category. Make it a part of your installation immediately. Acquire at Baltelec e-shop, your steady distributor for all your professional electrical equipment and automation needs.

In our Baltelec.eu cyber store you will identify DS201 K1 A30 - 2CSR255180R1017 worth 147.69 €, which will be a constant and current solution for your wants. This merchandise is designed by the ABB brand using the latest technologies and meets the uppermost standards of assurance and capacity. We supply things from the DS201 category that mix resilience and functionality, which is an excellent selection for various functions. Despite of whether you require apparatus for small manufacturing or for expert industrial operation, DS201 K1 A30 will be a secure facilitator in your endeavor.

Baltelec endeavors to make the purchasing process as effortless and fast as accomplishable for our clients. We offer detailed depictions and high-quality photos of DS201 K1 A30 so that you can make an advised choice. A team of professionals is always ready to help you with any questions in the DS201 section connected to the picking and use of materials. We are positive that DS201 K1 A30 will meet your standards and become an indispensable element of your tools for just 147.69 €.

Common Queries about 2CSR255180R1017:

  • What are the advantages of buying ABB 2CSR255180R1017 from BALTELEC?

    When ordering 2CSR255180R1017 from Baltelec website, you will obtain authentic quality ABB DS201 products at the finest pricing and delivery schedule. Furthermore, loyal buyersget additional savings and preferred assistance.

  • How can I determine if ABB DS201 K1 A30 is appropriate for my contract?

    To verify that 2CSR255180R1017 - DS201 K1 A30 is appropriate for your application, we provide detailed information concerning product's technical specifications, features, and compatibility. You can find this information on the product page of the item model. If you seek additional help, our customer service team is prepared to help you in making an well-informed decision.

  • What warranty coverage is provided for ABB DS201 K1 A30?

    BALTELEC stands for the reliability of the products we sell. The default warranty coverage for ABB DS201 including ABB 2CSR255180R1017 is 12 months. Nonetheless, it is subject depending on the individual product, product category, and may even be longer. You can locate specific warranty information on the 2CSR255180R1017 - DS201 K1 A30 dedicated page or by contacting our support team representatives.

  • Do you provide international shipping for 2CSR255180R1017 - DS201 K1 A30 as well as other ABB items?

    Certainly. In addition to catering to Estonia, Latvia, Lithuania and other European Union countries, we provide worldwide shipping for 2CSR255180R1017 - DS201 K1 A30. Please keep in mind that delivery options, fees, and shipping times can differ based on the shipping location. For volume requests, kindly contact BaltElec sales staff.

  • Do ABB MBC provided by BaltElec meet global standards for security and quality?

    Yes. All ABB products provided at Baltelec.eu online store adhere to international norms such as IEC 60898-1 standard and carry the CE certification. These standards ensure that the products meet strict security, technological, dependability, and performance criteria.

  • Can BaltElec offer support on incorporating renewable energy solutions, such as solar power systems or wind power converters, into my projects?

    Absolutely!  Baltelec website acknowledges the importance of renewable energy integration within community. Our group of professionals can help you in choosing the appropriate ABB products, to integrate them into your renewable energy solutions}. We can provide guidance on integrating solar power systems, wind power converters, and additional eco-friendly options to optimize power generation and efficiency.

  • Do you have eco-friendly options available within the DS201 category to support energy conservation efforts?

    Absolutely! Baltelec website provides various energy-efficient solutions within the DS201 category that align with energy-saving goals. Our top-quality ABB products, such as the 2CSR255180R1017 - DS201 K1 A30, are designed with environmental friendliness in mind. By integrating these products into your electrical system, you can maximize energy usage and reduce environmental impact. Additionally, we provide attractive pricing for our energy-efficient ABB products,, making them an cost-effective choice for advocating sustainability.

  • Is DS201 K1 A30 offered by BALTELEC genuine?

    Yes, we exclusively provide original ABB products, such as DS201 K1 A30. We procure our products solely through authorized distribution channels to guarantee their legitimacy and high standards.
