2CSR255080R3405 - DS201 B40 AC300 - ABB

Expected in 2-4 weeks

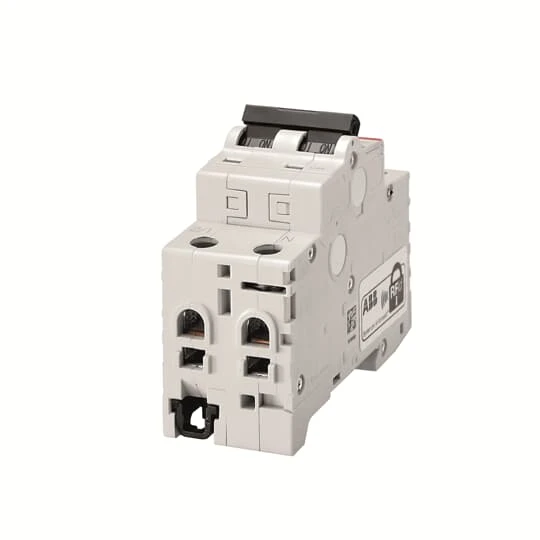

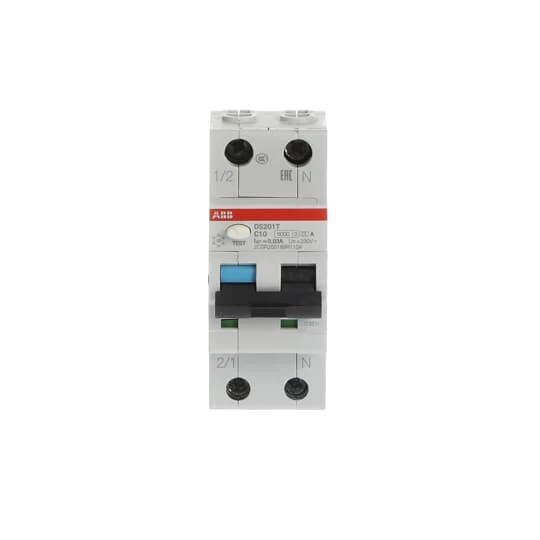

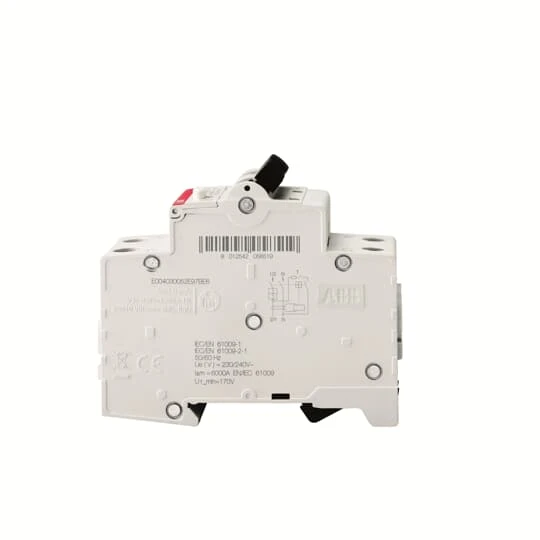

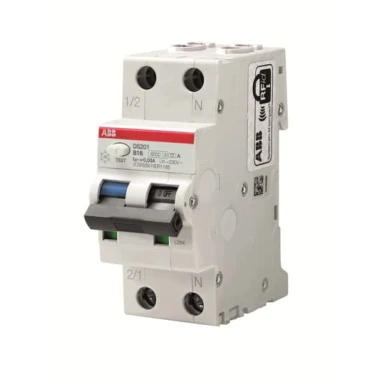

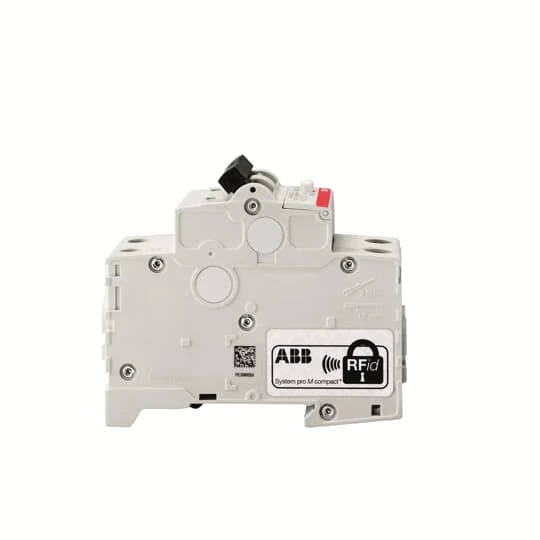

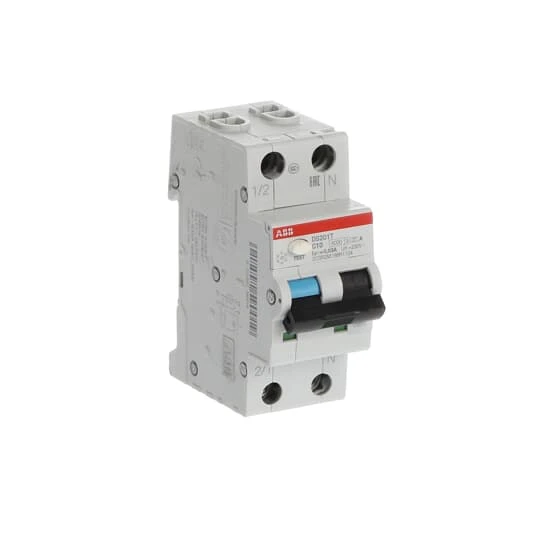

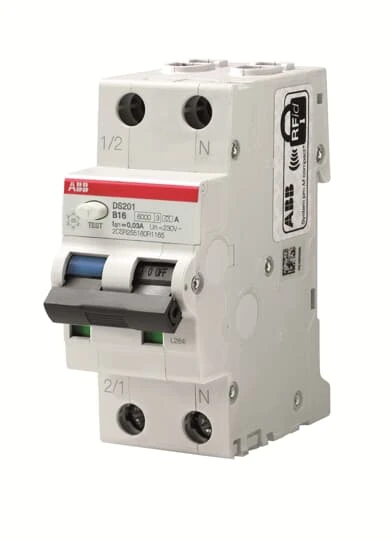

2CSR255080R3405 - DS201 B40 AC300 - ABB - DS201 B40 AC300 - ABB - 0
2CSR255080R3405 - DS201 B40 AC300 - ABB - DS201 B40 AC300 - ABB - 1
2CSR255080R3405 - DS201 B40 AC300 - ABB - DS201 B40 AC300 - ABB - 2
2CSR255080R3405 - DS201 B40 AC300 - ABB - DS201 B40 AC300 - ABB - 3
2CSR255080R3405 - DS201 B40 AC300 - ABB - DS201 B40 AC300 - ABB - 4
2CSR255080R3405 - DS201 B40 AC300 - ABB - DS201 B40 AC300 - ABB - 5
2CSR255080R3405 - DS201 B40 AC300 - ABB
64,66 € excl. VAT
78,88 € incl. VAT
Text About:
DS201 B40 AC300 - ABB
78,88 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 ... 10 mm²
Stranded 0.75 ... 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
curve B
Data sheet, technical information 9AKK107492A6187
Eclass V11.0 : 27142207
Package level 1 depth / length 80 mm
Operating characteristic Instantaneous
Product net depth / length 0.069
m
Rohs status Following EU Directive 2011/65/EU
Resistance to vibrations acc 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
Terminal type Screw Terminals
Number of protected poles 1
Mounting type on DIN rail EN 60715 (35mm) by means of mounting clip
degree of protection Terminals IP20
Housing IP40
sensitivity to earth leakage 300 mA
Complementary
Accessories available Yes
Accessory type Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device
Actuator type Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions
Ambient air temperature Operation -25...55 °C
Ccc certificate 9AKK107492A6067
Cn8 85363030
Declaration of conformity - ce 9AKK106713A5588
Package level 1 gross weight 225 g
Product net weight 0.200
kg
[in] rated current 40 A
Package level 1 height 106 mm
Product net width 0.035
m
[ics] rated service breaking capacity 7.5 kA
Cb certificate 9AKK107492A6060
Country of origin Italy (IT)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units box 1 piece
Package level 1 width 40 mm
tightening torque 2.8 N·m
Package level 2 depth / length 80 mm
Package level 2 ean 8012542595915
Contact position indication Red ON / Green OFF
Environmental information 2CSC422002K2701
Package level 2 gross weight 1125 g
Package level 2 height 106 mm
Package level 2 units box 5 piece
Dnv gl certificate 9AKK107680A3457


9AKK107680A3456
Instructions and manuals 9AKK107492A6006
mechanical endurance 20000 cycle
Package level 2 width 200 mm
Position of neutral terminals Right
fault indication Blue flag on toggle
Minimum order quantity 1 piece
Number of modular spacings per din rail 2
Input voltage type AC
Power supply connection Arbitrary
wire stripping length 12 mm
Object classification code F
Rated conditional short-circuit current (inc) 10 kA
frequency 50/60 Hz
Network type AC type
Package level 1 ean 8012542066019
Pollution degree 2
Product net height 0.085
m
Rated short-circuit capacity 6 kA
mounting position Any
Rated frequency (f) 50 … 60 Hz
Primary rated impulse withstand voltage 4 kV
Rated insulation voltage (ui) 500 V
Rated voltage (ur) 230 V
Power loss 5.0 W
Rated residual breaking capacity (iδm) EN 61009-1 6000 A
IEC 61009-1 4500 A
Rated operational voltage 230 / 240 V AC
Reach declaration 9AKK108467A9482
Poles description 2
Resistance to shock acc 25g 2 shocks 13 ms
Test voltage (ut) 110 ... 264 V
Öve certificate 9AKK107492A6085
Rated ultimate short-circuit breaking capacity (icu) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85363030
EAC certificate 9AKK107492A6071


9AKK107991A7755
Electrical endurance 10000 cycle
Energy limiting class 3
Eplan catalog tree Electrical engineering / Protection devices / Ground fault current circuit breaker
Housing type Insulation group I - II, RAL 7035
Release type B
Cable size 25 mm²
Eplan macro 9AKK107680A0597
ETIM - 8 EC000905 - Earth leakage circuit breaker
Gost certificate 9AKK107992A1640
overvoltage category III
Rmrs certificate 9AKK107680A3454


9AKK107680A3455
standards IEC/EN 61009-1, IEC/EN 61009-2-1
Etim 7 EC000905 - Earth leakage circuit breaker
Width in number of modular spacings 2
Maximum surge current 0 kA
Reference ambient air temperature 30 °C
Leakage current type AC
Weee b2c / b2b Business To Consumer
Rohs information 9AKK106713A5588
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
dielectric test voltage 2 kV
About this product

The 2CSR255080R3405 - DS201 B40 AC300 is developed to cater to the requirements of professional purchasers, such as switchboard fabricators, electricians, maintenance companies, and manufacturing originators. 2CSR255080R3405 offers exceptional excellence and gain for consultants in the automation and control industry. This DS201 B40 AC300 and other DS201 from ABB are in stock at the lowest cost and lead time through BALTELEC, a dependable provider assisting consultants in their collection needs.

Consumers who have purchased ABB DS201 have persistently acclaimed the brand's dependability. It has been remarked that the outstanding competence of 2CSR255080R3405 - DS201 B40 AC300 extends to a extensive scope of deployments. Its exceptional aspects make it great selection for diverse needs, ensuring the success of your industrial, tertiary, and automation projects.

Our company commits in meeting industrial and tertiary professionals’ needs. We recognize the customized specifications and expectations of our partners in the domain. By partnering with our company, your team obtain access to the optimal fees and stock of superior products like 2CSR255080R3405 - DS201 B40 AC300 from ABB at an affordable price. Our registered accounts benefit from exclusive discounts and dedicated support.

Seize the moment and acquire 2CSR255080R3405 - DS201 B40 AC300 at our certified and efficient e-commerce site. Don't delay in making this thoughtful resolution that affirms the utmost quality and matches the special standards of users like your outfit.

In case you have any uncertainties or concerns about 2CSR255080R3405 - DS201 B40 AC300 or any other ABB products, drop us a line or refer to our Common Questions section below. We have assembled answers to regular matters to guide you further in making an considered decision about industrial and tertiary electrical components.

Remember, 2CSR255080R3405 - DS201 B40 AC300 from ABB is sure, budget-friendly, and top-notch to market challengers in the DS201 category. Feel free to make it a part of your inventory without delay. Take advantage of at baltele.eu, your reliable source for all your DS201.

In our Baltelec.eu cyber store you will discover DS201 B40 AC300 - 2CSR255080R3405 worth 78.88 €, which will be a dependable and up-to-date solution for your desires. This product is constructed by the ABB brand using the up-to-the-minute technologies and complies with the optimal standards of well-being and capacity. We provide produce from the DS201 category that amalgamate endurance and efficacy, which is an first-rate pick for various applications. Not minding of whether you require appliances for small fabrication or for adept industrial implementation, DS201 B40 AC300 will be a safe assistant in your undertaking.

Baltelec labors to make the buying process as accessible and fast as accomplishable for our customers. We offer detailed outlines and high-quality illustrations of DS201 B40 AC300 so that you can make an well-informed choice. A team of professionals is always ready to help you with any inquiries in the DS201 section affiliated to the opting and use of merchandise. We are positive that DS201 B40 AC300 will meet your hopes and become an vital element of your tools for just 78.88 €.

FAQ about 2CSR255080R3405:

  • What are the advantages of buying 2CSR255080R3405 - DS201 B40 AC300 from BALTELEC?

    When buying 2CSR255080R3405 from BALTELEC, you obtain genuine high-quality ABB DS201 products at the best prices and delivery period. Additionally, our buyersenjoy further discounts and expedited requests handling.

  • 2CSR255080R3405 suits for my technical requirements?

    To ensure that ABB DS201 B40 AC300 is appropriate for your use case, we offer detailed details pertaining to product's specs, technical characteristics, and compatibility. You can find this data on the specific page of the item model. If you require additional help, our customer support representative is prepared to help you in making an well-informed decision.

  • Which guarantee coverage is provided for 2CSR255080R3405?

    BALTELEC emphasizes the reliability of the items we deliver. The standard warranty coverage for ABB DS201 including 2CSR255080R3405 is 12 months. Nevertheless, it varies depending on the particular product, category, and may even be longer. You can discover comprehensive warranty details on the 2CSR255080R3405 - DS201 B40 AC300 dedicated page or by reaching out to our support team team.

  • Can you provide international shipping for 2CSR255080R3405 - DS201 B40 AC300 and other ABB items?

    Yes. Besides catering to Estonia, Latvia, Lithuania and other European Union countries, we offer international shipping for 2CSR255080R3405 - DS201 B40 AC300. Please note that delivery options, fees, and delivery times may vary based on the destination. For volume requests, feel free to reach out to BaltElec sales staff.

  • Do ABB MBC provided by BALTELEC comply with global norms for safety and reliability?

    Certainly. All ABB items available at BALTELEC web store meet global standards such as IEC 60898-1 standard and carry the CE mark. Such norms guarantee that the items fulfill stringent security, technological, reliability, and performance criteria.

  • Can BaltElec offer support on incorporating renewable energy solutions, such as solar power systems or wind energy converters, into my projects?

    Definitely!  Baltelec.eu website recognizes the relevance of renewable energy incorporation within community. Our team of experts can assist you in picking the right ABB items, to incorporate them into your renewable energy solutions}. We can offer recommendations on combining solar energy systems, wind power converters, and other eco-friendly options to maximize power generation and efficiency.

  • Are there eco-friendly options available within the DS201 category to support energy conservation efforts?

    Certainly! Baltelec website offers various eco-friendly solutions within the DS201 category that are in line with environmental sustainability objectives. Our ABB products, like the 2CSR255080R3405 - DS201 B40 AC300, are crafted with environmental friendliness in mind. By using these products into your electrical system, you can optimize energy usage and lower environmental impact. Additionally, we present competitive pricing for our energy-efficient ABB products,, making them an cost-effective choice for promoting sustainability.

  • Is DS201 B40 AC300 sold by BALTELEC genuine?

    Indeed, we solely sell authentic ABB products, such as DS201 B40 AC300. We procure our products exclusively through authorized distribution channels to assure their legitimacy and superior performance.
