2CSR255080R1065 - DS201 B6 AC30 - ABB

Expected in 2-4 weeks

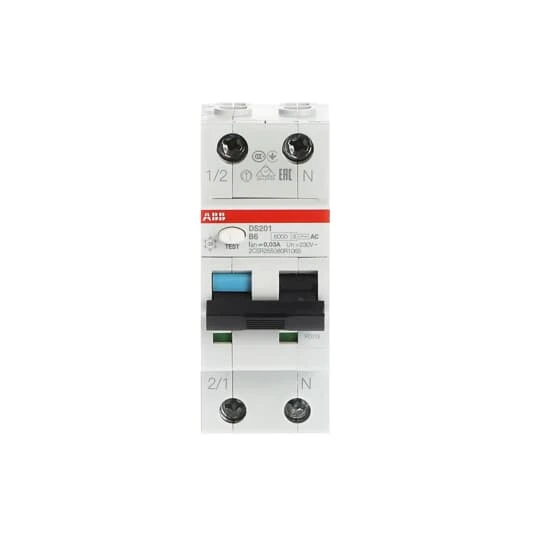

2CSR255080R1065 - DS201 B6 AC30 - ABB - DS201 B6 AC30 - ABB - 0

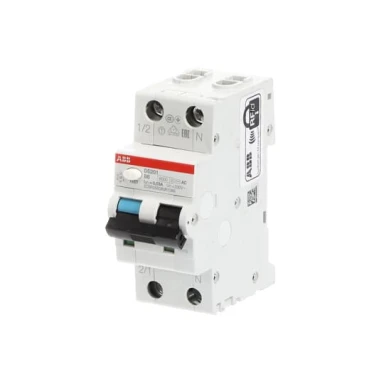

2CSR255080R1065 - DS201 B6 AC30 - ABB - DS201 B6 AC30 - ABB - 1

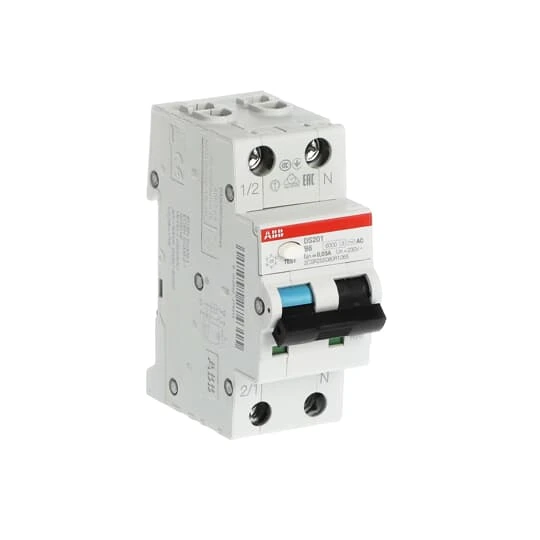

2CSR255080R1065 - DS201 B6 AC30 - ABB - DS201 B6 AC30 - ABB - 2
2CSR255080R1065 - DS201 B6 AC30 - ABB
59,06 € excl. VAT
72,05 € incl. VAT
Text About:
DS201 B6 AC30 - ABB
72,05 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 ... 10 mm²
Stranded 0.75 ... 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
curve B
Data sheet, technical information 9AKK107492A6187
Eclass V11.0 : 27142207
Package level 1 depth / length 80 mm
Operating characteristic Instantaneous
Product net depth / length 0.069
m
Rohs status Following EU Directive 2011/65/EU
Resistance to vibrations acc 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
Terminal type Screw Terminals
Number of protected poles 1
Mounting type on DIN rail EN 60715 (35mm) by means of mounting clip
degree of protection Terminals IP20
Housing IP40
sensitivity to earth leakage 30 mA
Complementary
Accessories available Yes
Accessory type Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device
Actuator type Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions
Ambient air temperature Operation -25...55 °C
Ccc certificate 9AKK107492A6067
Cn8 85363010
Declaration of conformity - ce 9AKK106713A5588
Package level 1 gross weight 225 g
Product net weight 0.200
kg
[in] rated current 6 A
Package level 1 height 106 mm
Product net width 0.035
m
[ics] rated service breaking capacity 7.5 kA
Cb certificate 9AKK107492A6060
Country of origin Italy (IT)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units box 1 piece
Package level 1 width 40 mm
tightening torque 2.8 N·m
Package level 2 depth / length 80 mm
Package level 2 ean 8012542599012
Contact position indication Red ON / Green OFF
Environmental information 2CSC422002K2701
Package level 2 gross weight 1125 g
Package level 2 height 106 mm
Package level 2 units box 5 piece
Dnv gl certificate 9AKK107680A3457


9AKK107680A3456
Instructions and manuals 9AKK107492A6006
mechanical endurance 20000 cycle
Package level 2 width 200 mm
Position of neutral terminals Right
fault indication Blue flag on toggle
Minimum order quantity 1 piece
Number of modular spacings per din rail 2
Input voltage type AC
Power supply connection Arbitrary
wire stripping length 12 mm
Object classification code F
Rated conditional short-circuit current (inc) 10 kA
frequency 50/60 Hz
Network type AC type
Package level 1 ean 8012542274315
Pollution degree 2
Product net height 0.085
m
Rated short-circuit capacity 6 kA
mounting position Any
Rated frequency (f) 50 … 60 Hz
Primary rated impulse withstand voltage 4 kV
Rated insulation voltage (ui) 500 V
Rated voltage (ur) 230 V
Power loss 2.4 W
Rated residual breaking capacity (iδm) EN 61009-1 6000 A
IEC 61009-1 6000 A
Rated operational voltage 230 / 240 V AC
Reach declaration 9AKK108467A9482
Poles description 2
Resistance to shock acc 25g 2 shocks 13 ms
Test voltage (ut) 170 ... 264 V
Öve certificate 9AKK107492A6085
Rated ultimate short-circuit breaking capacity (icu) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85363010
EAC certificate 9AKK107492A6071


9AKK107991A7755
Electrical endurance 10000 cycle
Energy limiting class 3
Eplan catalog tree Electrical engineering / Protection devices / Ground fault current circuit breaker
Housing type Insulation group I - II, RAL 7035
Release type B
Cable size 25 mm²
Eplan macro 9AKK107680A0597
ETIM - 8 EC000905 - Earth leakage circuit breaker
Gost certificate 9AKK107992A1640
overvoltage category III
Rmrs certificate 9AKK107680A3454


9AKK107680A3455
standards IEC/EN 61009-1, IEC/EN 61009-2-1
Etim 7 EC000905 - Earth leakage circuit breaker
Width in number of modular spacings 2
Maximum surge current 0 kA
Reference ambient air temperature 30 °C
Leakage current type AC
Weee b2c / b2b Business To Consumer
Rohs information 9AKK106713A5588
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
dielectric test voltage 2 kV
About this product

The 2CSR255080R1065 - DS201 B6 AC30 is formulated to accommodate the conditions of professional buyers, such as switchgear manufacturers, electric engineers, facility management firms, and Industry suppliers. 2CSR255080R1065 dispenses first-rate durability and profit for consultants in the power management industry. This DS201 B6 AC30 and other DS201 from ABB can be bought the best price and delivery period through BALTELEC, a well-known provider assisting tradesmen in their obtaining needs.

Consumers who have acquired ABB DS201 have steadily commended the maker's durability. It has been remarked that the extraordinary efficiency of 2CSR255080R1065 - DS201 B6 AC30 extends to a assortment of purposes. Its first-rate aspects make it right choice for assorted uses, ensuring your industrial, tertiary and automation projects success.

BALTELEC devotes in addressing industrial and tertiary professionals’ needs. We recognize the special demands and standards of our stakeholders in the domain. By collaborating with us, your company get access to the best price and delivery schedule of top-tier products like 2CSR255080R1065 - DS201 B6 AC30 from ABB at a budget-friendly price. Authorized buyers take advantage of more savings and dedicated support.

Move quickly and order 2CSR255080R1065 - DS201 B6 AC30 at our well-established and accessible digital marketplace. Don't delay in making this sensible option that guarantees the utmost quality and meets the individual specifications of buyers like your group.

If there are any worries or concerns about 2CSR255080R1065 - DS201 B6 AC30 or any other ABB products, reach out to us or refer to our FAQ section section below. We have put together answers to usual concerns to advise you further in making an smart decision about industrial and tertiary electrical components.

Remember, 2CSR255080R1065 - DS201 B6 AC30 from ABB is steady, economical, and top-notch to other brands in the DS201 category. Make it a part of your infrastructure promptly. Snap up at baltele.eu, your esteemed seller for all your ABB.

In our Baltelec.eu virtual store you will find DS201 B6 AC30 - 2CSR255080R1065 worth 72.05 €, which will be a sure and modern solution for your necessities. This commodity is invented by the ABB brand using the modern technologies and aligns with the top standards of assurance and efficiency. We supply merchandise from the DS201 category that associate toughness and utility, which is an superior choice for various operations. In defiance of whether you necessitate devices for small generation or for adept industrial utilization, DS201 B6 AC30 will be a dependable companion in your job.

Baltelec efforts to make the securing process as smooth and fast as accomplishable for our users. We offer detailed descriptions and high-quality snapshots of DS201 B6 AC30 so that you can make an advised choice. A team of virtuosos is always ready to help you with any doubts in the DS201 section related to the preferment and use of merchandise. We are positive that DS201 B6 AC30 will meet your anticipations and become an essential element of your tools for just 72.05 €.
