2CSR253101R1104 - DS203 A-C10/0,03 - ABB

Expected in 2-4 weeks

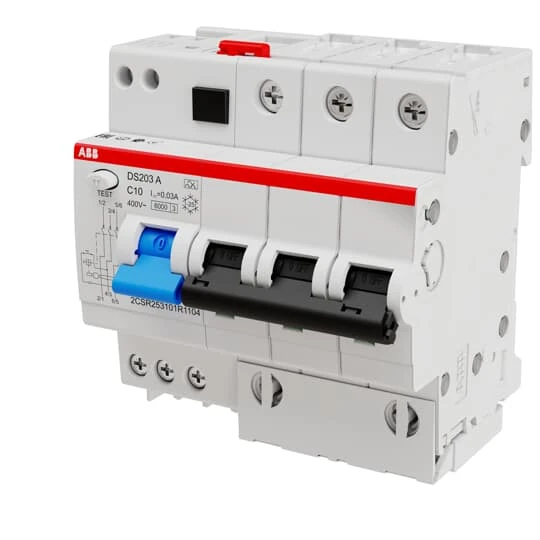

2CSR253101R1104 - DS203 A-C10/0,03 - ABB - DS203 A-C10/0,03 - ABB - 1

2CSR253101R1104 - DS203 A-C10/0,03 - ABB - DS203 A-C10/0,03 - ABB - 2

2CSR253101R1104 - DS203 A-C10/0,03 - ABB

130,88 € excl. VAT

159,67 € incl. VAT

Text About:

DS203 A-C10/0,03 - ABB

In cart

159,67 €

SPECIFICATIONS

Additional Information

Connecting capacity Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²

curve C

Data sheet, technical information 9AKK107991A8329

Eclass V11.0 : 27400618

Package level 1 depth / length 100 mm

Operating characteristic Instantaneous

Product net depth / length 69
mm

Rohs status Following EU Directive 2011/65/EU

Resistance to vibrations acc 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz

Weee category 5. Small Equipment (No External Dimension More Than 50 cm)

Main

Number of protected poles 3

sensitivity to earth leakage 30 mA

Complementary

Accessories available Yes

Ambient air temperature Operation -25 ... +55 °C
Storage -40 ... +70 °C

Cn8 85363030

Declaration of conformity - ce 9AKK106713A5607

Package level 1 gross weight 0.655 kg

Product net weight 0.610
kg

[in] rated current 10 A

Package level 1 height 105 mm

Product net width 87
mm

[ics] rated service breaking capacity 6 kA

Country of origin Italy (IT)

Package level 1 units box 1 piece

Package level 1 width 80 mm

Number of earth leakage circuit breakers (elcbs) 1

Environmental information Refer to RoHS

Instructions and manuals 9AKK107045A1451

Minimum order quantity 1 piece

Options provided None

Power supply connection Arbitrary

Object classification code F

Network type A type

Package level 1 ean 8012542861607

Product net height 0.093
m

Rated short-circuit capacity (400 V AC) 6 kA

Rated frequency (f) 50 … 60 Hz

Rated voltage (ur) 400 V AC

Power loss 4.4 W

Rated operational voltage 400 V AC

Reach declaration 9AKK108467A9482

Poles description 3

Resistance to shock acc 25g 2 shocks 13 ms

Rated ultimate short-circuit breaking capacity (icu) (400 V AC) 10 kA

Environment

Customs tariff number 85363030

Electrical endurance 10000 cycle

Release type C

ETIM - 8 EC002281 - Distributor assembly with combination RCCB/MCB

standards IEC/EN 60947-2
IEC/EN 61009-1

Etim 7 EC002281 - Distributor assembly with combination RCCB/MCB

Weee b2c / b2b Business To Consumer

Rohs information 9AKK106713A5607
