2CSR252140R3064 - DS202C C6 A300 - ABB

Expected in 2-4 weeks

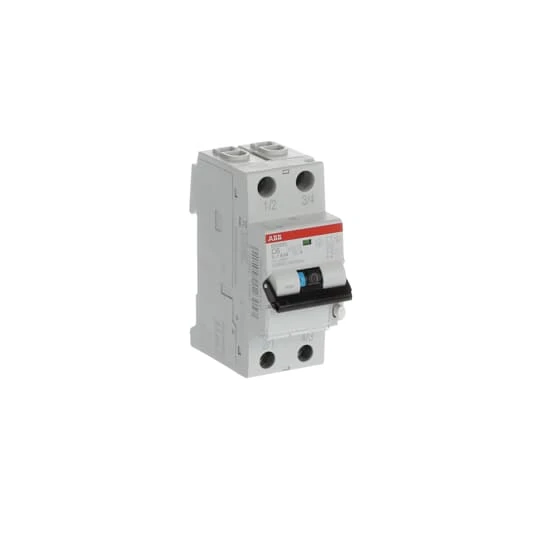

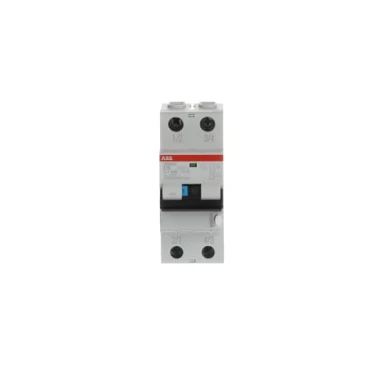

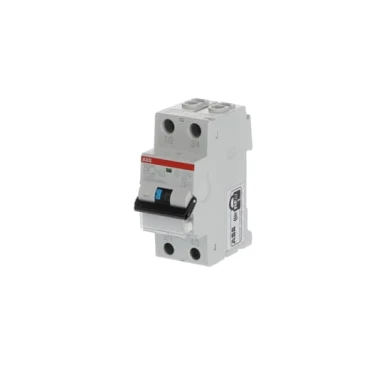

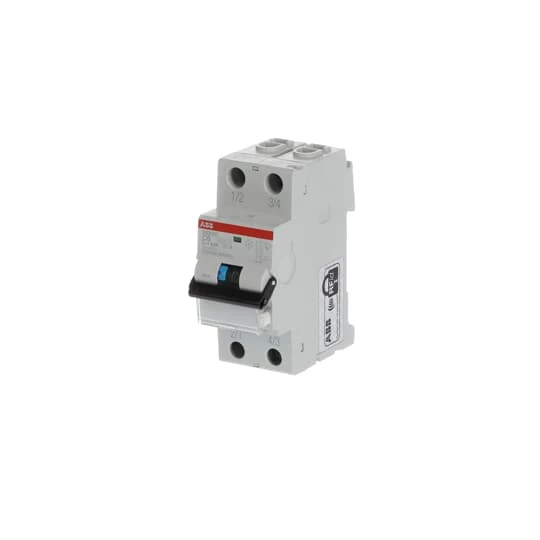

2CSR252140R3064 - DS202C C6 A300 - ABB - DS202C C6 A300 - ABB - 0
2CSR252140R3064 - DS202C C6 A300 - ABB - DS202C C6 A300 - ABB - 1
2CSR252140R3064 - DS202C C6 A300 - ABB - DS202C C6 A300 - ABB - 2
2CSR252140R3064 - DS202C C6 A300 - ABB
75,18 € excl. VAT
91,72 € incl. VAT
Text About:
DS202C C6 A300 - ABB
91,72 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 mm²
Rigid 25 ... 25 mm²
Flexible 25 ... 25 mm²
curve C
Data sheet, technical information 9AKK107991A8329
Eclass V11.0 : 27142207
Package level 1 depth / length 80 mm
Operating characteristic Instantaneous
Product net depth / length 0.069
m
Rohs status Following EU Directive 2011/65/EU
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
Number of protected poles 2
degree of protection IP2X
sensitivity to earth leakage 300 mA
Complementary
Accessories available Yes
Ambient air temperature Operation -25...55 °C
Cn8 85363010
Declaration of conformity - ce 9AKK106713A5589
Package level 1 gross weight 0.225 kg
Product net weight 0.239
kg
[in] rated current 6 A
Package level 1 height 40 mm
Product net width 0.035
m
Country of origin Italy (IT)
Package level 1 units box 1 piece
Package level 1 width 106 mm
Package level 2 depth / length 0.080 m
Package level 2 ean 8012542123064
Environmental information 9AKK107680A8583
Package level 2 gross weight 1.125 kg
Package level 2 height 0.106 m
Package level 2 units box 5 piece
Instructions and manuals 9AKK106354A0766
mechanical endurance 20000 cycle
Package level 2 width 0.200 m
Position of neutral terminals Right
Left
Minimum order quantity 1 piece
Options provided None
Input voltage type AC
Power supply connection Arbitrary
Object classification code F
Rated conditional short-circuit current (inc) 10 kA
frequency 50/60 Hz
Network type A type
Package level 1 ean 8012542123057
Rated cross-section 4 - Multi-Wired 1...25 mm²
1 - Solid-Core 25...25 mm²
Pollution degree 2
Product net height 0.085
m
Rated short-circuit capacity 6 kA
Rated frequency (f) 50 … 60 Hz
Rated impulse withstand voltage (uimp) 4 kV
Rated insulation voltage (ui) 500 V
Rated service short-circuit breaking capacity, in % of icu (ics) 6 kA
Rated voltage (ur) 230-240 V AC
Replacement product id (new) 2CSR752140R3064
Power loss 4.4 W
Rated operational voltage 230 / 240 V AC
Poles description 2
Rated ultimate short-circuit breaking capacity (icu) 10 kA
Short-circuit current rating (sccr) 0.3 A
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85363010
Electrical endurance 10000 cycle
Energy limiting class 3
Release type C
ETIM - 8 EC000905 - Earth leakage circuit breaker
overvoltage category III
standards IEC 61009-1
IEC 61009-2-1
EN 61009-1
EN 61009-2-1
Etim 7 EC000905 - Earth leakage circuit breaker
Width in number of modular spacings 2
Maximum surge current 0.25 kA
Earthing switch type Undelayed
Leakage current type A
Weee b2c / b2b Business To Consumer
Rohs information 2CSC422002K2701
About this product

The 2CSR252140R3064 - DS202C C6 A300 is developed to satisfy the obligations of industry specialists, such as switchgear manufacturers, electrical technicians, upkeep firms, and OEMs. 2CSR252140R3064 delivers exceptional quality and advantages for experts in the electrical and automation industry. This DS202C C6 A300 and other DS202C from ABB are in stock the best price and distribution time through BaltElec website, an independent dealer serving industry experts in their provision needs.

Technicians who have chosen ABB DS202C have continuously lauded the manufacturer’s durability. It has been pointed out that the outstanding competence of 2CSR252140R3064 - DS202C C6 A300 extends to a broad spectrum of scenarios. Its top-notch qualities make it suitable for wide-ranging specifications, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our team commits in accommodating industrial and tertiary professionals’ needs. We understand the individual demands and anticipations of our consumers in the field. By cooperating with us, your enterprise secure access to the finest fees and stock of high-quality products like 2CSR252140R3064 - DS202C C6 A300 from ABB at the most competitive price. Registered users enjoy added discounts and exclusive assistance.

Seize the moment and get 2CSR252140R3064 - DS202C C6 A300 at our well-established and user-friendly web store. Don't delay in making this smart investment that secures the ultimate quality and addresses the specific expectations of purchasers like yourselves.

When you have any doubts or concerns about 2CSR252140R3064 - DS202C C6 A300 or any other ABB products, message us or refer to our FAQs section below. We have compiled answers to routine requests for information to assist you further in making an wise decision about industrial and tertiary electrical components.

Remember, 2CSR252140R3064 - DS202C C6 A300 from ABB is unfailing, economical, and excellent to other producers in the DS202C category. Feel free to make it a part of your apparatus this moment. Get at baltele.eu, your respected merchant for all your DS202C.

In our Baltelec.eu electronic store you will identify DS202C C6 A300 - 2CSR252140R3064 worth 91.72 €, which will be a constant and fashionable solution for your demands. This merchandise is developed by the ABB brand using the most recent technologies and conforms to the leading standards of guarding and efficiency. We propose products from the DS202C category that unite endurance and usability, which is an top-notch preference for various operations. Regardless of whether you necessitate hardware for small output or for proficient industrial application, DS202C C6 A300 will be a steadfast facilitator in your assignment.

Baltelec endeavors to make the purchasing process as simple and fast as achievable for our clients. We offer detailed outlines and high-quality portrayals of DS202C C6 A300 so that you can make an versed choice. A team of experts is always ready to help you with any wonder in the DS202C section involved to the opting and use of products. We are affirmed that DS202C C6 A300 will meet your hopes and become an necessary element of your kit for just 91.72 €.
