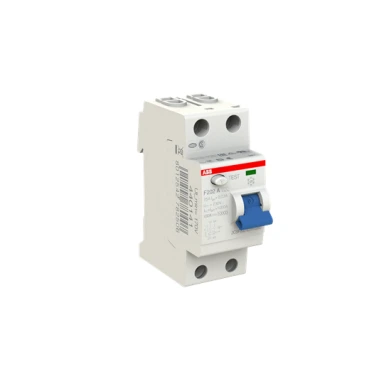

2CSF202101R1250 - F202 A-25/0,03 - ABB

Expected in 2-4 weeks
2CSF202101R1250 - F202 A-25/0,03 - ABB - F202 A-25/0,03 - ABB - 0
2CSF202101R1250 - F202 A-25/0,03 - ABB - F202 A-25/0,03 - ABB - 1
2CSF202101R1250 - F202 A-25/0,03 - ABB - F202 A-25/0,03 - ABB - 2
2CSF202101R1250 - F202 A-25/0,03 - ABB
51,41 € excl. VAT
63,75 € incl. VAT
Text About:
F202 A-25/0,03 - ABB
63,75 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 mm²
Rigid 25 ... 25 mm²
Flexible 25 ... 25 mm²
Data sheet, technical information 9AKK107991A8329
E-number (sweden) 2160114
Eclass V11.0 : 27142201
Package level 1 depth / length 94 mm
Operating characteristic Instantaneous
Product net depth / length 0.069
m
Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Resistance to vibrations acc 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
Mounting type DIN rail
degree of protection IP2X
sensitivity to earth leakage 30 mA
Complementary
Accessories available Yes
Ambient air temperature Operation -25...55 °C
Cn8 85363030
Declaration of conformity - ce 9AKK106713A5602
Package level 1 gross weight 0.235 kg
Product net weight 0.200
kg
[in] rated current 25 A
Package level 1 height 41 mm
Product net width 0.035
m
[ics] rated service breaking capacity 1 kA
Country of origin Italy (IT)
Package level 1 units box 1 piece
Package level 1 width 80 mm
Package level 2 depth / length 240 mm
Package level 2 ean 8012542782513
Environmental information Refer to RoHS
Package level 2 gross weight 1350 g
Package level 2 height 85 mm
Package level 2 units box 6 piece
Instructions and manuals 9AKK107991A6127
Package level 2 width 96 mm
Maximum operating voltage ul/csa 277 V AC
Minimum order quantity 1 piece
Options provided None
Input voltage type AC
Power supply connection Arbitrary
Object classification code F
Rated conditional short-circuit current (inc) 10 kA
Network type A type
Package level 1 ean 8012542782506
Rated cross-section 4 - Multi-Wired 0...25 mm²
1 - Solid-Core 25...25 mm²
Pollution degree 2
Product net height 0.085
m
Rated frequency (f) 50 … 60 Hz
Rated impulse withstand voltage (uimp) 4 kV
Rated insulation voltage (ui) 500 V
Rated voltage (ur) 230 V
Power loss at Rated Operating Conditions per Pole 1 W
Rated operational voltage 230 V
Reach declaration 9AKK108467A9482
Poles description 2
Resistance to shock acc 25g 2 shocks 13 ms
Short-circuit current rating (sccr) 30 mA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85363030
Electrical endurance 10000 cycle
Eplan catalog tree Electrical engineering / Protection devices / Ground fault current circuit breaker
Environmental product declaration - epd 9AKK108467A3700
ETIM - 8 EC000003 - Residual current circuit breaker (RCCB)
standards IEC/EN 61008
UL 1053
Etim 7 EC000003 - Residual current circuit breaker (RCCB)
Width in number of modular spacings 2
Eplan function definition Ground fault current circuit-breaker / Ground fault current circuit breakers, 4 connection points / Ground fault current circuit breaker, two-pole 1/2 2/1 3/4 4/3
Leakage current type A
Weee b2c / b2b Business To Consumer
E-number (finland) 3259225
Rohs information 9AKK106713A5602
About this product

The 2CSF202101R1250 - F202 A-25/0,03 is designed to serve the wants of specialized professionals, such as electrical contractors, electric engineers, facility management firms, and OEMs. 2CSF202101R1250 yields outstanding standards and value for consultants in the electrical and automation industry. This F202 A-25/0,03 and other F202 from ABB are accessible the best price and turnaround time through BALTELEC website, a well-regarded reseller assisting practitioners in their purchasing needs.

Customers who have secured ABB F202 have steadily admired the producer's reliability. It has been stated that the superlative energy-efficiency of 2CSF202101R1250 - F202 A-25/0,03 extends to a array of operations. Its ideal aspects make it great selection for various requirements, securing success in your industrial, tertiary, and automation endeavors.

Our experts centers in meeting industrial and tertiary professionals’ needs. We appreciate the individual needs and demands of our consumers in the market. By cooperating with our team, your team gain access to the superior costs and inventory of high-quality products like 2CSF202101R1250 - F202 A-25/0,03 from ABB at cost-effective price. Baltelec account members benefit from exclusive discounts and first-class attention.

Begin today and grab 2CSF202101R1250 - F202 A-25/0,03 at our verified and streamlined online store. Don't delay in making this savvy action that assures the superior quality and adheres to the customized specifications of buyers like your business.

Should there be any problems or concerns about 2CSF202101R1250 - F202 A-25/0,03 or any other ABB products, contact us or refer to our Knowledge base section below. We have assembled answers to popular inquiries to benefit you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, 2CSF202101R1250 - F202 A-25/0,03 from ABB is trustworthy, wallet-friendly, and excellent to opposing companies in the F202 category. Make it a part of your configuration instantly. Order at BALTELEC, your faithful dealer for all your F202.

In our Baltelec.eu electronic store you will identify F202 A-25/0,03 - 2CSF202101R1250 worth 62.72 €, which will be a constant and cutting-edge solution for your expectations. This commodity is fabricated by the ABB brand using the up-to-the-minute technologies and conforms to the pinnacle standards of well-being and capacity. We extend articles from the F202 category that associate toughness and workability, which is an top-notch option for various purposes. Despite of whether you desire instruments for small fabrication or for experienced industrial use, F202 A-25/0,03 will be a constant assistant in your occupation.

Baltelec strives to make the purchasing process as uncomplicated and fast as achievable for our patrons. We offer detailed summaries and high-quality snapshots of F202 A-25/0,03 so that you can make an versed choice. A team of professionals is always ready to help you with any questions in the F202 section tied to the deciding and use of items. We are affirmed that F202 A-25/0,03 will meet your wishes and become an essential element of your device for just 62.72 €.

Customer Queries about ABB F202 A-25/0,03:
