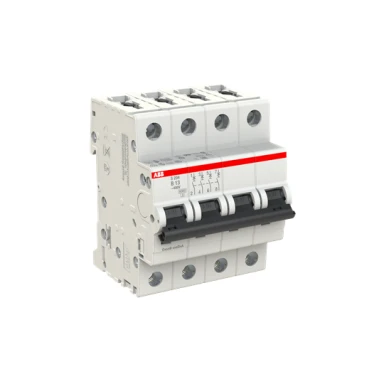

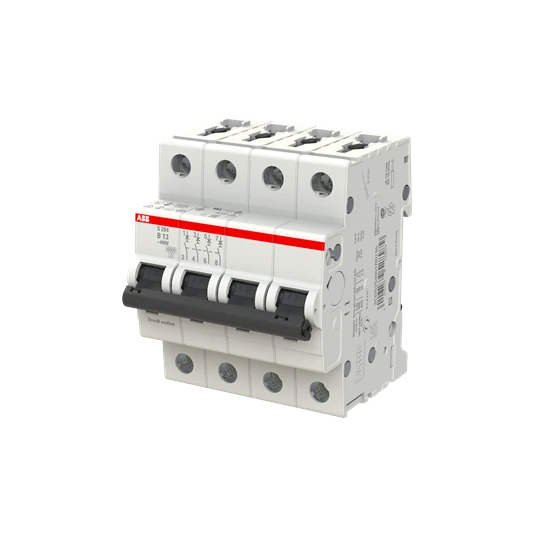

2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker - ABB

Expected in 2-4 weeks
2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker - ABB - S204-B 13 Miniature Circuit Breaker - ABB - 0
2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker - ABB - S204-B 13 Miniature Circuit Breaker - ABB - 1
2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker - ABB - S204-B 13 Miniature Circuit Breaker - ABB - 2
2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker - ABB - S204-B 13 Miniature Circuit Breaker - ABB - 3
2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker - ABB - S204-B 13 Miniature Circuit Breaker - ABB - 4
2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker - ABB
24,42 € excl. VAT
30,28 € incl. VAT
Text About:
S204-B 13 Miniature Circuit Breaker - ABB
30,28 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 / 10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
curve B
Data sheet, technical information 9AKK107991A8329
Eclass V11.0 : 27141901
Package level 1 depth / length 78 mm
Product net depth / length 69
mm
Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Resistance to vibrations acc 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
product range S200
Terminal type Screw Terminals
Number of protected poles 4
i²t at switch-on 9AKK107992A5102
Mounting type DIN-Rail
degree of protection IP20
Enclosure with Cover IP40
Complementary
Accessories available Yes
Actuator marking I / O
Ambient air temperature Operation -25 ... +55 °C
Storage -40 ... +70 °C
Cn8 8536 20 10
Declaration of conformity - ce 2CDK403001D0607
Package level 1 gross weight 0.51 kg
Product net weight 0.5
kg
[in] rated current 13 A
Actuator material Insulation Group II, Black, Sealable
Package level 1 height 80 mm
Product net width 70
mm
[ics] rated service breaking capacity (230 V AC) 15 kA
(400 V AC) 7.5 kA
(440 V AC) 7.5 kA
Country of origin Germany (DE)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units carton 1 piece
Connecting capacity ul/csa Busbar 18-8 AWG
Conductor 18-4 AWG
Package level 1 width 92 mm
tightening torque 2.8 N·m
dimension 2CDC022007F0010
Package level 2 depth / length 395 mm
Package level 2 ean 4016779974776
Contact position indication Red ON / Green OFF
Environmental information 2CDK400030D0201
Package level 2 gross weight 11.92 kg
Package level 2 height 210 mm
Idea granular category code (igcc) 4897 >> Miniature circuit breakers
Operational voltage Maximum (Incl. Tolerance) 440 V AC
Minimum 12 V AC
Minimum 12 V DC
Package level 2 units carton 24 piece
Instructions and manuals 2CDS207104P0002
mechanical endurance 20000 cycle
Package level 2 width 275 mm
Maximum operating voltage ul/csa 110 V DC
480Y/277 V AC
Minimum order quantity 1 piece
Input voltage type AC/DC
Power supply connection Arbitrary
wire stripping length 12.5 mm
Object classification code F
Rated conditional short-circuit current (inc) (230 V) 20 kA
(400 V) 20 kA
frequency 50 Hz
Package level 1 ean 4016779610698
Housing material Insulation Group II, RAL 7035
Offered with extended lifetime Product Durability - Achieved
Pollution degree 3
Product net height 88
mm
Rated short-circuit capacity (AC) 6 kA
(DC) 6 kA
(400 V AC) 6 kA
mounting position any
Rated frequency (f) 50 / 60 Hz
Rated impulse withstand voltage (uimp) 4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Mounting on din rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Rated insulation voltage (ui) acc. to IEC/EN 60664-1 440 V
Power loss 9.2 W
at Rated Operating Conditions per Pole 2.3 W
Rated operational voltage acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 440 V AC
Reach declaration 9AKK107492A1906
Poles description 4
Recommended screw driver Pozidriv 2
Resistance to shock acc 25g / 2 shocks / 13 ms
Tightening torque ul/csa 18 in·lb
Sustainable material content 0 %
Rated ultimate short-circuit breaking capacity (icu) (230 V AC) 20 kA
(400 V AC) 10 kA
(440 V AC) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85362010
Electrical endurance 20000 AC cycle
Energy limiting class 3
Eplan catalog tree Electrical engineering / Protection devices / General
Certification agency EN
IEC
UL
Environmental product declaration - epd 9AKK108467A7832
Eplan graphical macro 9AKK106713A7632
Eplan macro 9AKK106713A7622
ETIM - 8 EC000042 - Miniature circuit breaker (MCB)
overvoltage category III
standards IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
Circular design principles recyclability rate Design for Closing Resource Loops - Standard EN45555 - 90 %
Declaration of conformity - ukca 9AKK108467A5053
Etim 7 EC000042 - Miniature circuit breaker (MCB)
Pole net weight 0.125 kg
Width in number of modular spacings 4
Eplan function definition Circuit breaker / Quadruple circuit-breaker / Quadruple circuit-breaker 1_2_3_4_5_6_7_8
Reference ambient air temperature 30 °C
Scip e6800e55-46b1-49a3-881b-0f66d0e903ad Germany (DE)
Weee b2c / b2b Business To Business
Offered with takeback services Take Back for Recycling - Achieved
Rohs information 2CDK403001D0607
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
Unspsc 39121603
Installation size acc. to DIN 43880 1
dielectric test voltage 50/60 Hz, 1 min: 2 kV
Interrupting rating acc (277 V AC) 6 kA
(480Y / 277 V AC) 6 kA
(240 V) 10 kA
About this product

The 2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker is engineered to fulfill the needs of trade buyers, such as electrical contractors, cable technicians, facility upkeep providers, and primary equipment suppliers. 2CDS254001R0135 affords exceptional performance and benefits for developers in the electrical engineering industry. This S204-B 13 Miniature Circuit Breaker and other S204 from ABB are on offer at the unbeatable price and shipment duration through baltelec.eu, a distinguished distributor supporting tradesmen in their supply needs.

Contractors who have bought ABB S204 have persistently approved the creator's robustness. It has been remarked that the exceptional productivity of 2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker extends to a spectrum of use. Its high-end components make it appropriate to meet diverse demands, securing success in your industrial, tertiary, and automation endeavors.

BALTELEC focuses in addressing industrial and tertiary professionals’ needs. We recognize the specific requirements and requirements of our patrons in the market. By joining forces with our experts, your business gain access to the best fees and delivery schedule of the top-of-the-line products like 2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker from ABB at an affordable price. Registered users get extra discounts and premium support.

Act now and grab 2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker at our reliable and efficient web store. Don't delay in making this intelligent move that confirms the ultimate quality and matches the specific standards of traders like your organization.

If you encounter any inquiries or concerns about 2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker or any other ABB products, get in touch with us or refer to our FAQ section section below. We have amassed answers to standard problems to guide you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, 2CDS254001R0135 - S204-B 13 Miniature Circuit Breaker from ABB is unfailing, cost-effective, and first-rate to other brands in the S204 category. Make it a part of your solution instantly. Shop with confidence at Baltelec webstore, your preferred supplier for all your ABB.

In our Baltelec.eu dot-com store you will spot S204-B 13 Miniature Circuit Breaker - 2CDS254001R0135 worth 29.79 €, which will be a constant and innovative solution for your desires. This article is invented by the ABB brand using the up-to-the-minute technologies and fulfills the optimal standards of guarding and performance. We supply produce from the S204 category that fuse endurance and workability, which is an superb selection for various applications. Irrespective of whether you demand devices for small creation or for experienced industrial purpose, S204-B 13 Miniature Circuit Breaker will be a dependable assistant in your task.

Baltelec aims to make the procuring process as convenient and fast as achievable for our consumers. We offer detailed depictions and high-quality visuals of S204-B 13 Miniature Circuit Breaker so that you can make an knowledgeable choice. A team of pros is always ready to help you with any matter in the S204 section involved to the preferment and use of merchandise. We are affirmed that S204-B 13 Miniature Circuit Breaker will meet your criteria and become an crucial element of your kit for just 29.79 €.

Popular Questions about ABB S204-B 13 Miniature Circuit Breaker:
