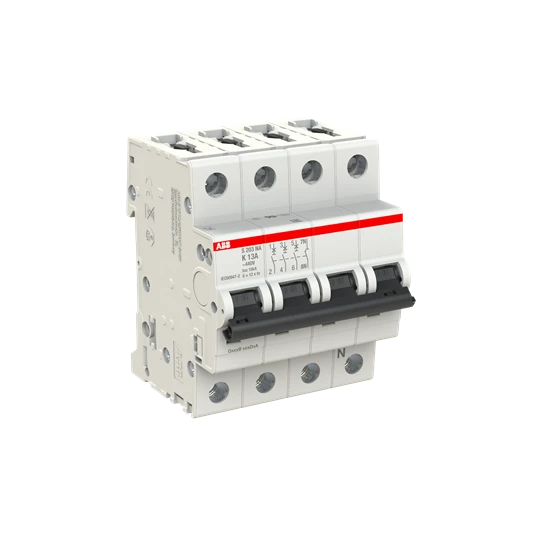

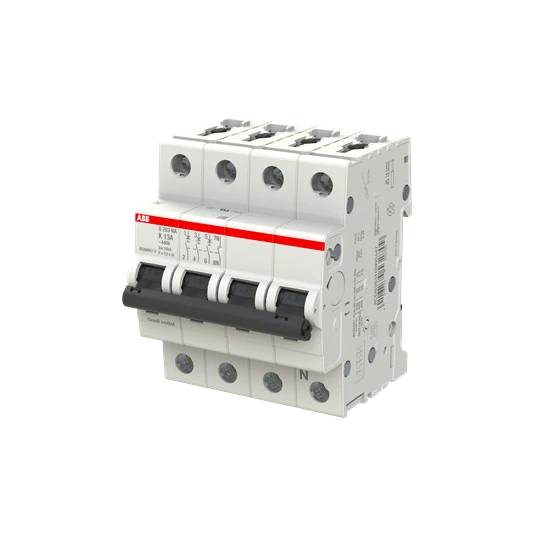

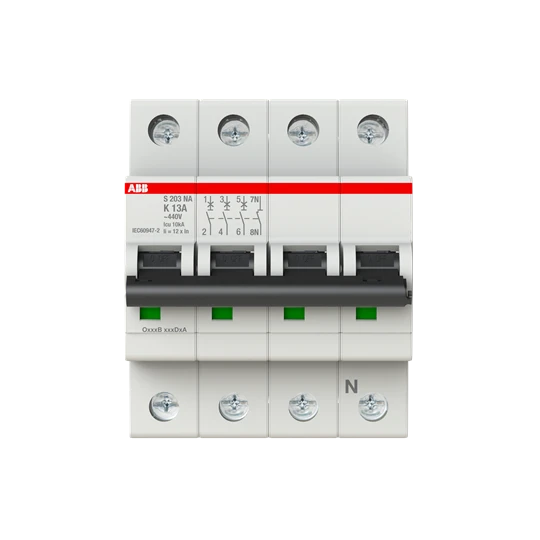

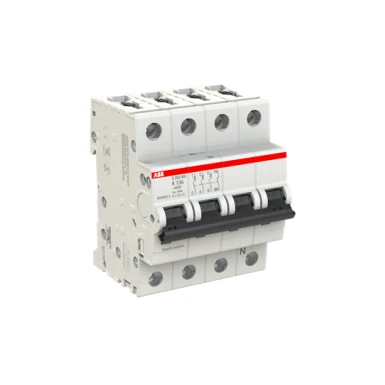

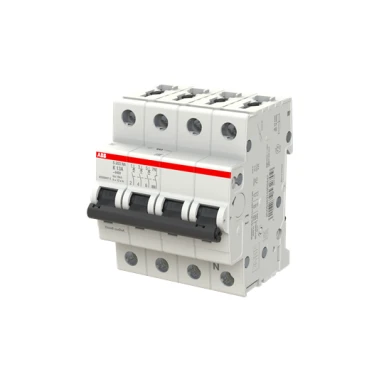

2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker - ABB

Expected in 2-4 weeks
2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker - ABB - S203-K 13 NA Miniature Circuit Breaker - ABB - 0
2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker - ABB - S203-K 13 NA Miniature Circuit Breaker - ABB - 1
2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker - ABB - S203-K 13 NA Miniature Circuit Breaker - ABB - 2
2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker - ABB - S203-K 13 NA Miniature Circuit Breaker - ABB - 3
2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker - ABB - S203-K 13 NA Miniature Circuit Breaker - ABB - 4
2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker - ABB
33,82 € excl. VAT
41,94 € incl. VAT
Text About:
S203-K 13 NA Miniature Circuit Breaker - ABB
41,94 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 / 10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
curve K
Data sheet, technical information 9AKK107991A8329
Eclass V11.0 : 27141901
Package level 1 depth / length 78 mm
Product net depth / length 69
mm
Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Resistance to vibrations acc 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
product range S200
Terminal type Screw Terminals
Number of protected poles 3
i²t at switch-on 9AKK107992A5103
Mounting type DIN-Rail
degree of protection IP20
Enclosure with Cover IP40
Complementary
Accessories available Yes
Actuator marking I / O
Ambient air temperature Operation -25 ... +55 °C
Storage -40 ... +70 °C
Cn8 8536 20 10
Declaration of conformity - ce 2CDK403001D0607
Package level 1 gross weight 0.53 kg
Product net weight 0.5
kg
[in] rated current 13 A
Actuator material Insulation Group II, Black, Sealable
Package level 1 height 80 mm
Product net width 70
mm
[ics] rated service breaking capacity (230 V AC) 15 kA
(400 V AC) 7.5 kA
(440 V AC) 7.5 kA
Country of origin Germany (DE)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units carton 1 piece
Connecting capacity ul/csa Busbar 18-8 AWG
Conductor 18-4 AWG
Package level 1 width 92 mm
tightening torque 2.8 N·m
dimension 2CDC022007F0010
Package level 2 depth / length 395 mm
Package level 2 ean 4016779974325
Contact position indication Red ON / Green OFF
Environmental information 2CDK400030D0201
Package level 2 gross weight 11.92 kg
Package level 2 height 210 mm
Idea granular category code (igcc) 4897 >> Miniature circuit breakers
Operational voltage Maximum (Incl. Tolerance) 440 V AC
Package level 2 units carton 24 piece
Instructions and manuals 2CDS207104P0002
mechanical endurance 20000 cycle
Package level 2 width 275 mm
Maximum operating voltage ul/csa 110 V DC
480Y / 277 V AC
Position of neutral terminals Right
Minimum order quantity 1 piece
Input voltage type AC/DC
Power supply connection Arbitrary
wire stripping length 12.5 mm
Object classification code F
Rated conditional short-circuit current (inc) (230 V) 20 kA
(400 V) 10 kA
frequency 50 Hz
Package level 1 ean 4016779610261
Housing material Insulation Group II, RAL 7035
Offered with extended lifetime Product Durability - Achieved
Pollution degree 3
Product net height 88
mm
Rated short-circuit capacity (AC) 6 kA
(DC) 6 kA
(400 V AC) 6 kA
mounting position any
Rated frequency (f) 50 / 60 Hz
Rated impulse withstand voltage (uimp) 4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Mounting on din rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Rated insulation voltage (ui) acc. to IEC/EN 60664-1 440 V
Power loss 5.6 W
at Rated Operating Conditions per Pole 1.4 W
Rated operational voltage acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 440 V AC
Reach declaration 9AKK107492A1906
Poles description 3+N
Recommended screw driver Pozidriv 2
Resistance to shock acc 25g / 2 shocks / 13 ms
Tightening torque ul/csa 18 in·lb
Sustainable material content 0 %
Rated ultimate short-circuit breaking capacity (icu) (230 V AC) 20 kA
(400 V AC) 10 kA
(440 V AC) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85362010
Electrical endurance 20000 AC cycle
Eplan catalog tree Electrical engineering / Protection devices / General
Certification agency EN
IEC
UL
Environmental product declaration - epd 9AKK108467A7832
Eplan graphical macro 9AKK106713A7632
Eplan macro 9AKK106713A7622
ETIM - 8 EC000042 - Miniature circuit breaker (MCB)
overvoltage category III
standards IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
Circular design principles recyclability rate Design for Closing Resource Loops - Standard EN45555 - 90 %
Declaration of conformity - ukca 9AKK108467A5053
Etim 7 EC000042 - Miniature circuit breaker (MCB)
Pole net weight 0.125 kg
Width in number of modular spacings 4
Eplan function definition NO contact / NO contact, 2 connection points / NO contact, leading 7N_8N
Circuit breaker / Triple circuit breaker / Triple circuit breaker 1_2_3_4_5_6
Weee b2c / b2b Business To Business
Offered with takeback services Take Back for Recycling - Achieved
Rohs information 2CDK403001D0607
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
Unspsc 39121603
Installation size acc. to DIN 43880 1
dielectric test voltage 50/60 Hz, 1 min: 2 kV
Interrupting rating acc (110 V DC) 10 kA
(277 V AC) 6 kA
(480Y / 277 V AC) 6 kA
About this product

The 2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker is fashioned to accommodate the obligations of industry experts, such as control panel builders, electricians, service providers, and original producers. 2CDS253103R0447 provides extraordinary robustness and profit for engineers in the electrical and automation industry. This S203-K 13 NA Miniature Circuit Breaker and other S203 from ABB can be bought at the finest pricing and fulfillment period through BALTELEC website, a trustworthy vendor supplying specialists in their provision needs.

Consumers who have secured ABB S203 have consistently applauded the producer's trustworthiness. It has been specified that the exceptional performance of 2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker extends to a wide range of utilizations. Its top-notch elements make it fitting to meet diverse demands, assuring the success of your industrial, tertiary, and automation ventures.

Our company concentrates in meeting industrial and tertiary professionals’ needs. We recognize the unique standards and anticipations of our consumers in the niche. By joining forces with our experts, your enterprise acquire access to the superior price lists and delivery schedule of excellent products like 2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker from ABB at a budget-friendly price. Professional buyers with Baltelec account receive special savings and dedicated support.

Take action and order 2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker at our certified and hassle-free website. Don't delay in making this intelligent choice that assures the top quality and achieves the specific demands of traders like your enterprise.

Should there be any issues or concerns about 2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker or any other ABB products, communicate with us or refer to our Information center section below. We have compiled answers to regular queries to serve you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, 2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker from ABB is reliable, reasonable, and elite to its competitors in the S203 category. Make it a part of your installation at once. Purchase at BaltElec, your steady distributor for all your professional electrical equipment and automation needs.

In our Baltelec.eu dot-com store you will come across S203-K 13 NA Miniature Circuit Breaker - 2CDS253103R0447 worth 41.27 €, which will be a sure and innovative solution for your wants. This commodity is engineered by the ABB brand using the most recent technologies and adheres to the uppermost standards of safety and capacity. We propose objects from the S203 category that combine strength and effectiveness, which is an outstanding election for various roles. Despite of whether you seek hardware for small production or for skilled industrial operation, S203-K 13 NA Miniature Circuit Breaker will be a reliable associate in your task.

Baltelec aims to make the purchasing process as uncomplicated and fast as attainable for our patrons. We offer detailed reports and high-quality illustrations of S203-K 13 NA Miniature Circuit Breaker so that you can make an well-informed choice. A team of authorities is always ready to help you with any wonder in the S203 section connected to the opting and use of wares. We are convinced that S203-K 13 NA Miniature Circuit Breaker will meet your expectations and become an necessary element of your apparatus for just 41.27 €.

Popular Questions about ABB S203-K 13 NA Miniature Circuit Breaker:

  • Why should I order ABB S203-K 13 NA Miniature Circuit Breaker from BALTELEC?

    When purchasing 2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker from Baltelec website, you receive original quality ABB S203 products at the most favorable cost and turnaround time. Moreover, our partnersget further discounts and preferred assistance.

  • What is the way to find out if 2CDS253103R0447 is the right choice for my needs?

    To confirm that ABB 2CDS253103R0447 is appropriate for your drawings, we provide comprehensive information concerning product's technical specifications, technical characteristics, and in some cases 3D models as well. You can access this data on the specific page of the device model. If you seek more guidance, our customer support team is prepared to help you in reaching an well-informed decision.

  • What warranty coverage is provided for ABB 2CDS253103R0447?

    Baltelec team emphasizes the quality of the items we offer. The default guarantee coverage for ABB S203 including 2CDS253103R0447 - S203-K 13 NA Miniature Circuit Breaker is 12 months. However, it depends based on the particular item, product category, and may even be extended. You can locate comprehensive warranty information on the ABB S203-K 13 NA Miniature Circuit Breaker product page or by reaching out to our customer support team.

  • Can you arrange international shipping for ABB S203-K 13 NA Miniature Circuit Breaker as well as other ABB items?

    Absolutely. In addition to catering to Estonia, Latvia, Lithuania and other European Union countries, we offer international shipping for ABB S203-K 13 NA Miniature Circuit Breaker. Please note that shipping options, fees, and shipping times might differ based on the shipping location. In the case of complex acquisitions, feel free to reach out to BALTELEC sales team.

  • Do ABB MBC offered by BALTELEC comply with global norms for security and quality?

    Yes. All ABB products available at Baltelec.eu online store meet international norms such as IEC 60898-1 standard and carry the CE certification. Such norms guarantee that the items fulfill stringent security, technological, dependability, and performance criteria.

  • Can BALTELEC offer assistance on incorporating renewable energy solutions, such as solar energy systems or wind energy converters, into my projects?

    Yes, sure!  Baltelec.eu website recognizes the importance of renewable energy incorporation within projects. Our group of specialists can assist you in selecting the appropriate ABB items, to incorporate them into your renewable energy solutions}. We can provide recommendations on combining solar energy systems, wind power converters, and alternative eco-friendly options to maximize power generation and effectiveness.

  • Do you have eco-friendly options offered within the S203 category to encourage green energy initiatives?

    Definitely!Yes! BaltElec offers a wide range of energy-efficient solutions within the S203 category that align with environmental sustainability objectives. Our ABB products, such as the 2CDS253103R0447, are designed with energy conservation in mind. By using these products into your electrical system, you can maximize energy usage and reduce environmental impact. Additionally, we offer affordable pricing for our energy-efficient ABB products,, making them an economical choice for advocating sustainability.

  • Are 2CDS253103R0447 available by Baltelec.eu legitimate?

    Absolutely, we only provide authentic ABB products, such as S203-K 13 NA Miniature Circuit Breaker. We source our products only through official distribution channels to guarantee their authenticity and superior quality.
