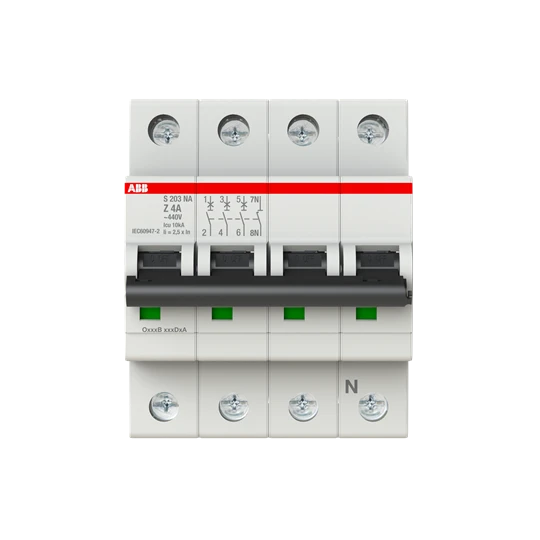

2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker - ABB

Expected in 2-4 weeks
2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker - ABB - S203-Z 4 NA Miniature Circuit Breaker - ABB - 0
2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker - ABB - S203-Z 4 NA Miniature Circuit Breaker - ABB - 1
2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker - ABB - S203-Z 4 NA Miniature Circuit Breaker - ABB - 2
2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker - ABB - S203-Z 4 NA Miniature Circuit Breaker - ABB - 3
2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker - ABB - S203-Z 4 NA Miniature Circuit Breaker - ABB - 4
2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker - ABB
43,12 € excl. VAT
53,47 € incl. VAT
Text About:
S203-Z 4 NA Miniature Circuit Breaker - ABB
53,47 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 / 10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
curve Z
Data sheet, technical information 9AKK107991A8329
Eclass V11.0 : 27141901
Package level 1 depth / length 78 mm
Product net depth / length 69
mm
Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Resistance to vibrations acc 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
product range S200
Terminal type Screw Terminals
Number of protected poles 3
i²t at switch-on 9AKK107992A5104
Mounting type DIN-Rail
degree of protection IP20
Enclosure with Cover IP40
Complementary
Accessories available Yes
Actuator marking I / O
Ambient air temperature Operation -25 ... +55 °C
Storage -40 ... +70 °C
Cn8 8536 20 10
Declaration of conformity - ce 2CDK403001D0607
Package level 1 gross weight 0.53 kg
Product net weight 0.52
kg
[in] rated current 4 A
Actuator material Insulation Group II, Black, Sealable
Package level 1 height 80 mm
Product net width 70
mm
[ics] rated service breaking capacity (230 V AC) 15 kA
(400 V AC) 7.5 kA
(440 V AC) 7.5 kA
Country of origin Germany (DE)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units carton 1 piece
Connecting capacity ul/csa Busbar 18-8 AWG
Conductor 18-4 AWG
Package level 1 width 92 mm
tightening torque 2.8 N·m
dimension 2CDC022007F0010
Package level 2 depth / length 395 mm
Package level 2 ean 4016779974226
Contact position indication Red ON / Green OFF
Environmental information 2CDK400030D0201
Package level 2 gross weight 11.92 kg
Package level 2 height 210 mm
Idea granular category code (igcc) 4897 >> Miniature circuit breakers
Operational voltage Maximum (Incl. Tolerance) 440 V AC
Package level 2 units carton 24 piece
Instructions and manuals 2CDS207104P0002
mechanical endurance 20000 cycle
Package level 2 width 275 mm
Maximum operating voltage ul/csa 110 V DC
480Y / 277 V AC
Position of neutral terminals Right
Minimum order quantity 1 piece
Input voltage type AC/DC
Power supply connection Arbitrary
wire stripping length 12.5 mm
Object classification code F
Rated conditional short-circuit current (inc) (230 V) 20 kA
(400 V) 10 kA
frequency 50 Hz
Package level 1 ean 4016779610162
Housing material Insulation Group II, RAL 7035
Offered with extended lifetime Product Durability - Achieved
Pollution degree 3
Product net height 88
mm
Rated short-circuit capacity (AC) 6 kA
(DC) 6 kA
(400 V AC) 6 kA
mounting position any
Rated frequency (f) 50 / 60 Hz
Rated impulse withstand voltage (uimp) 4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Mounting on din rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Rated insulation voltage (ui) acc. to IEC/EN 60664-1 440 V
Power loss 9.6 W
at Rated Operating Conditions per Pole 2.4 W
Rated operational voltage acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 440 V AC
Reach declaration 9AKK107492A1906
Poles description 3+N
Recommended screw driver Pozidriv 2
Resistance to shock acc 25g / 2 shocks / 13 ms
Tightening torque ul/csa 18 in·lb
Sustainable material content 0 %
Rated ultimate short-circuit breaking capacity (icu) (230 V AC) 20 kA
(400 V AC) 10 kA
(440 V AC) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85362010
Electrical endurance 20000 AC cycle
Eplan catalog tree Electrical engineering / Protection devices / General
Certification agency EN
IEC
UL
Environmental product declaration - epd 9AKK108467A7832
Eplan graphical macro 9AKK106713A7632
Eplan macro 9AKK106713A7622
ETIM - 8 EC000042 - Miniature circuit breaker (MCB)
overvoltage category III
standards IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
Circular design principles recyclability rate Design for Closing Resource Loops - Standard EN45555 - 90 %
Declaration of conformity - ukca 9AKK108467A5053
Etim 7 EC000042 - Miniature circuit breaker (MCB)
Pole net weight 0.125 kg
Width in number of modular spacings 4
Eplan function definition NO contact / NO contact, 2 connection points / NO contact, leading 7N_8N
Circuit breaker / Triple circuit breaker / Triple circuit breaker 1_2_3_4_5_6
Weee b2c / b2b Business To Business
E-number (finland) 3210752
Offered with takeback services Take Back for Recycling - Achieved
Rohs information 2CDK403001D0607
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
Unspsc 39121603
Installation size acc. to DIN 43880 1
dielectric test voltage 50/60 Hz, 1 min: 2 kV
Interrupting rating acc (110 V DC) 10 kA
(277 V AC) 6 kA
(480Y / 277 V AC) 6 kA
About this product

The 2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker is produced to match the expectations of sector experts, such as circuit designers, cable technicians, service providers, and Original Equipment manufacturers. 2CDS253103R0338 dispenses superior durability and beneficence for experts in the power engineering industry. This S203-Z 4 NA Miniature Circuit Breaker and other S203 from ABB are on offer at the finest pricing and shipment duration through BALTELEC online store, a reputable provider fulfilling the needs of engineers in their provision needs.

Consumers who have secured ABB S203 have continuously complimented the brand's solidity. It has been noted that the exceptional functionality of 2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker extends to a extensive scope of scenarios. Its premium qualities make it fitting to satisfy a wide array of needs. Your developed solution will excel in quality, energy-efficiency and price.

Our experts devotes in meeting industrial and tertiary professionals’ needs. We know the individual needs and preferences of our consumers in the industry. By aligning with BALTELEC, your organization receive access to the top costs and lead time of the top-of-the-line products like 2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker from ABB at a reasonable price. Registered users appreciate extra discounts and preferred assistance.

Act now and order 2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker at our certified and streamlined web store. Don't delay in making this sensible choice that warrants the top quality and caters to the unique criteria of professionals like you.

If you encounter any questions or concerns about 2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker or any other ABB products, connect with us or refer to our Frequently Asked Questions section below. We have compiled answers to routine questions to assist you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, 2CDS253103R0338 - S203-Z 4 NA Miniature Circuit Breaker from ABB is reliable, affordable, and high-quality to other producers in the S203 category. Don't hesitate to make it a part of your configuration right now. Purchase at BaltElec, your esteemed seller for all your S203.

In our Baltelec.eu electronic store you will uncover S203-Z 4 NA Miniature Circuit Breaker - 2CDS253103R0338 worth 52.61 €, which will be a trustworthy and fashionable solution for your requirements. This item is invented by the ABB brand using the newest technologies and fulfills the highest standards of protection and performance. We furnish merchandise from the S203 category that merge strength and functionality, which is an top-notch selection for various uses. In defiance of whether you need instruments for small production or for experienced industrial implementation, S203-Z 4 NA Miniature Circuit Breaker will be a steadfast helper in your work.

Baltelec endeavors to make the securing process as straightforward and fast as achievable for our buyers. We offer detailed explanations and high-quality depictions of S203-Z 4 NA Miniature Circuit Breaker so that you can make an informed choice. A team of professionals is always ready to help you with any matter in the S203 section linked to the preferment and use of merchandise. We are confident that S203-Z 4 NA Miniature Circuit Breaker will meet your anticipations and become an needed element of your machinery for just 52.61 €.
