2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker - ABB

Expected in 2-4 weeks

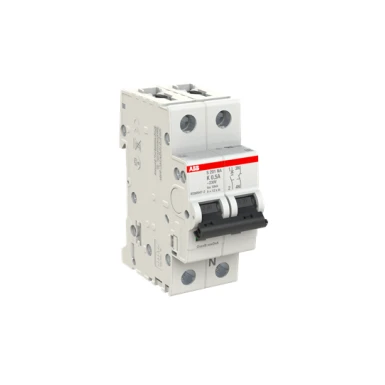

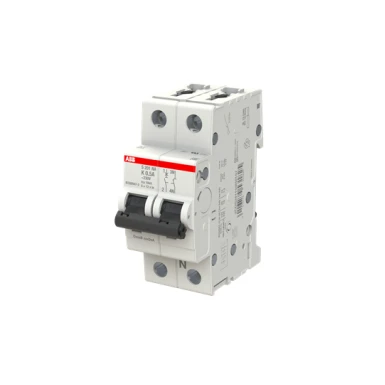

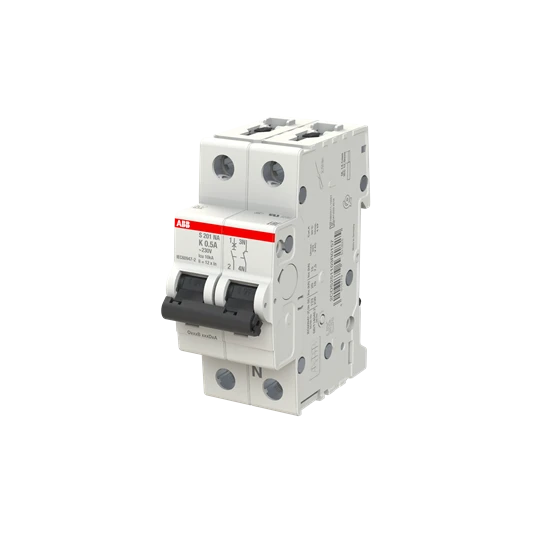

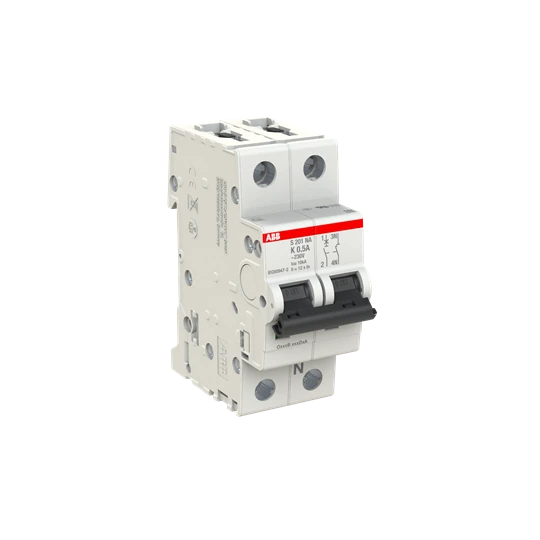

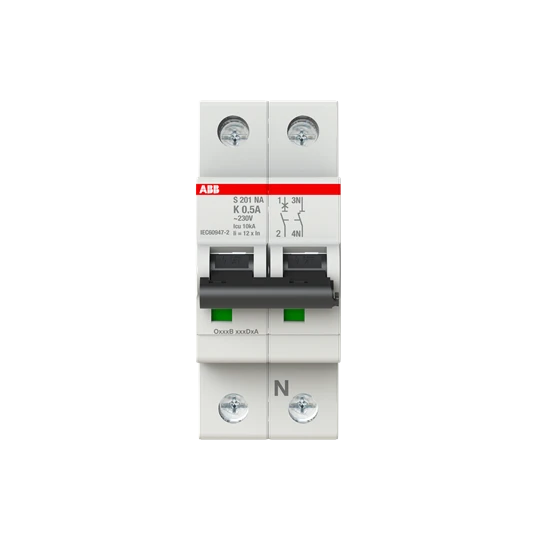

2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker - ABB - S201-K 13 NA Miniature Circuit Breaker - ABB - 0
2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker - ABB - S201-K 13 NA Miniature Circuit Breaker - ABB - 1
2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker - ABB - S201-K 13 NA Miniature Circuit Breaker - ABB - 2
2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker - ABB - S201-K 13 NA Miniature Circuit Breaker - ABB - 3
2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker - ABB - S201-K 13 NA Miniature Circuit Breaker - ABB - 4
2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker - ABB
14,37 € excl. VAT
17,82 € incl. VAT
Text About:
S201-K 13 NA Miniature Circuit Breaker - ABB
17,82 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 / 10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
curve K
Data sheet, technical information 9AKK107991A8329
Eclass V11.0 : 27141901
Package level 1 depth / length 183 mm
Product net depth / length 69
mm
Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Resistance to vibrations acc 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
product range S200
Terminal type Screw Terminals
Number of protected poles 1
i²t at switch-on 9AKK107992A5103
Mounting type DIN-Rail
degree of protection IP20
Enclosure with Cover IP40
Complementary
Accessories available Yes
Actuator marking I / O
Ambient air temperature Operation -25 ... +55 °C
Storage -40 ... +70 °C
Cn8 8536 20 10
Declaration of conformity - ce 2CDK403001D0607
Package level 1 gross weight 1.3 kg
Product net weight 0.25
kg
[in] rated current 13 A
Actuator material Insulation Group II, Black, Sealable
Package level 1 height 80 mm
Product net width 35
mm
[ics] rated service breaking capacity (133 V AC) 15 kA
(230 V AC) 7.5 kA
Country of origin Germany (DE)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units carton 5 piece
Connecting capacity ul/csa Busbar 18-8 AWG
Conductor 18-4 AWG
Package level 1 width 92 mm
tightening torque 2.8 N·m
dimension 2CDC022007F0010
Package level 2 depth / length 395 mm
Package level 2 ean 4016779971867
Contact position indication Red ON / Green OFF
Environmental information 2CDK400030D0201
Package level 2 gross weight 14.8 kg
Package level 2 height 210 mm
Idea granular category code (igcc) 4897 >> Miniature circuit breakers
Operational voltage Maximum (Incl. Tolerance) 253 V AC
Package level 2 units carton 60 piece
Instructions and manuals 2CDS207104P0002
mechanical endurance 20000 cycle
Package level 2 width 275 mm
Maximum operating voltage ul/csa 110 V DC
480Y / 277 V AC
Position of neutral terminals Right
Minimum order quantity 1 piece
Input voltage type AC/DC
Power supply connection Arbitrary
wire stripping length 12.5 mm
Object classification code F
Rated conditional short-circuit current (inc) (230 V) 10 kA
frequency 50 Hz
Package level 1 ean 4016779607957
Housing material Insulation Group II, RAL 7035
Offered with extended lifetime Product Durability - Achieved
Pollution degree 3
Product net height 88
mm
Rated short-circuit capacity (AC) 6 kA
(DC) 6 kA
(230 V AC) 6 kA
mounting position any
Rated frequency (f) 50 / 60 Hz
Rated impulse withstand voltage (uimp) 4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Mounting on din rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Rated insulation voltage (ui) acc. to IEC/EN 60664-1 440 V
Power loss 2.8 W
at Rated Operating Conditions per Pole 1.4 W
Rated operational voltage acc. to IEC 60898-1 230 V AC
acc. to IEC 60947-2 230 V AC
Reach declaration 9AKK107492A1906
Poles description 1+N
Recommended screw driver Pozidriv 2
Resistance to shock acc 25g / 2 shocks / 13 ms
Tightening torque ul/csa 18 in·lb
Sustainable material content 0 %
Rated ultimate short-circuit breaking capacity (icu) (133 V AC) 20 kA
(230 V AC) 10 kA
(24 V DC) 20 kA
(60 V DC) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85362010
Electrical endurance 20000 AC cycle
Eplan catalog tree Electrical engineering / Protection devices / General
Certification agency EN
IEC
UL
Environmental product declaration - epd 9AKK108467A7832
Eplan graphical macro 9AKK106713A8115
Eplan macro 9AKK106713A8105
ETIM - 8 EC000042 - Miniature circuit breaker (MCB)
overvoltage category III
standards IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
Circular design principles recyclability rate Design for Closing Resource Loops - Standard EN45555 - 90 %
Declaration of conformity - ukca 9AKK108467A5053
Etim 7 EC000042 - Miniature circuit breaker (MCB)
Pole net weight 0.125 kg
Width in number of modular spacings 2
Eplan function definition NO contact / NO contact, 2 connection points / NO contact, leading 3N_4N
Circuit breaker / Single circuit breaker / Circuit breaker 1_2
Scip e6800e55-46b1-49a3-881b-0f66d0e903ad Germany (DE)
Weee b2c / b2b Business To Business
Offered with takeback services Take Back for Recycling - Achieved
Rohs information 2CDK403001D0607
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
Unspsc 39121603
Installation size acc. to DIN 43880 1
dielectric test voltage 50/60 Hz, 1 min: 2 kV
Interrupting rating acc (277 V AC) 6 kA
(60 V DC) 10 kA
(120 V) 10 kA
About this product

The 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker is designed to satisfy the requirements of specialized professionals, such as switchgear manufacturers, electrical installers, service providers, and Industry suppliers. 2CDS251103R0447 provides superb excellence and beneficence for planners in the electrical engineering industry. This S201-K 13 NA Miniature Circuit Breaker and other S201 from ABB can be ordered at the most advantageous pricing and shipment duration through BALTELEC.EU, a credible dealer supplying engineers in their collection needs.

Users who have used ABB S201 have repeatedly applauded the maker's resilience. It has been highlighted that the impressive productivity of 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker extends to a array of tasks. Its exceptional characteristics make it suitable for multiple purposes, assuring the success of your industrial, tertiary, and automation ventures.

BaltElec centers in addressing industrial and tertiary professionals’ needs. We understand the distinct expectations and anticipations of our clients in the sector. By teaming up with our company, your team acquire access to the best price lists and lead time of superior products like 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker from ABB at cost-effective price. Registered users take advantage of exclusive discounts and exclusive assistance.

Take action and purchase 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker at our verified and streamlined platform. Don't delay in making this wise plan that certifies the supreme quality and satisfies the defined prerequisites of contractors like yourselves.

Should there be any worries or concerns about 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker or any other ABB products, contact us or refer to our Frequently Asked Questions section below. We have consolidated answers to habitual problems to support you further in making an informed decision about industrial and tertiary electrical components.

Remember, 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker from ABB is reliable, low-cost, and better to market challengers in the S201 category. Make it a part of your network right now. Obtain at BaltElec, your steady distributor for all your S201.

In our Baltelec.eu dot-com store you will come across S201-K 13 NA Miniature Circuit Breaker - 2CDS251103R0447 worth 17.53 €, which will be a steadfast and innovative solution for your needs. This merchandise is developed by the ABB brand using the state-of-the-art technologies and conforms to the top standards of security and competence. We provide goods from the S201 category that unite durability and functionality, which is an top-notch preference for various operations. Not minding of whether you desire machinery for small formation or for expert industrial implementation, S201-K 13 NA Miniature Circuit Breaker will be a secure facilitator in your work.

Baltelec works to make the purchasing process as straightforward and fast as possible for our users. We offer detailed narratives and high-quality pictures of S201-K 13 NA Miniature Circuit Breaker so that you can make an versed choice. A team of pros is always ready to help you with any questions in the S201 section pertaining to the preferment and use of goods. We are assured that S201-K 13 NA Miniature Circuit Breaker will meet your hopes and become an necessary element of your gear for just 17.53 €.

FAQ about 2CDS251103R0447:

  • What are the advantages of ordering ABB 2CDS251103R0447 from BaltElec?

    When you order 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker from Baltelec online store, you receive authentic high-quality ABB S201 products at advantageous prices and delivery schedule. Moreover, our buyerstake pleasure in further discounts and expedited requests handling.

  • ABB S201-K 13 NA Miniature Circuit Breaker suits for my contract?

    To ensure that 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker meets the requirements of your application, we provide thorough information regarding product's specifications, technical characteristics, and interoperability. You can access this data on the product page of the device model. If you need more guidance, our support team representative stands ready to aid you in reaching an educated decision.

  • What guarantee coverage is provided for 2CDS251103R0447?

    Baltelec team emphasizes the quality of the items we distribute. The regular warranty coverage for ABB S201 including 2CDS251103R0447 is 12 months. Nevertheless, it is subject depending on the specific product, product category, and could be longer. You can find specific warranty details on the ABB 2CDS251103R0447 dedicated page or by contacting our customer service representatives.

  • Can you provide global shipping for ABB 2CDS251103R0447 and other ABB products?

    Yes. Apart from catering to Estonia, Latvia, Lithuania and other European Union countries, we provide international shipping for 2CDS251103R0447 - S201-K 13 NA Miniature Circuit Breaker. Please note that shipping options, fees, and shipping times can vary depending on the shipping location. For complicated acquisitions, feel free to reach out to BALTELEC sales representatives.

  • Do ABB MBC offered by BALTELEC adhere to global standards for security and reliability?

    Certainly. All ABB products available at BALTELEC online store conform to global norms such as IEC 60898-1 standard and carry the CE certification. These standards assure that the products meet rigorous security, technological, reliability, and functional criteria.

  • Can BaltElec provide assistance on incorporating renewable energy solutions, such as solar power systems or wind power converters, into my projects?

    Certainly!  Baltelec.eu understands the significance of renewable energy integration within community. Our group of experts can support you in choosing the right ABB items, to integrate them into your renewable energy projects}. We can provide recommendations on integrating solar energy systems, wind energy converters, and alternative sustainable options to optimize power generation and effectiveness.

  • Do you have eco-friendly options available within the S201 category to promote environmental sustainability?

    Certainly! Baltelec.eu online store provides numerous eco-friendly solutions in the category of S201 that align with energy-saving goals. Our ABB products, like the S201-K 13 NA Miniature Circuit Breaker, are designed with environmental friendliness in mind. By using these products into your electrical system, you can enhance energy usage and minimize environmental impact. Additionally, we offer affordable pricing for our eco-friendly ABB products,, making them an cost-effective choice for advocating sustainability.

  • Is S201-K 13 NA Miniature Circuit Breaker available by Baltelec online store authentic?

    Indeed, we solely sell authentic ABB products, such as S201-K 13 NA Miniature Circuit Breaker. We obtain our products only through legitimate distribution channels to guarantee their authenticity and high performance.
