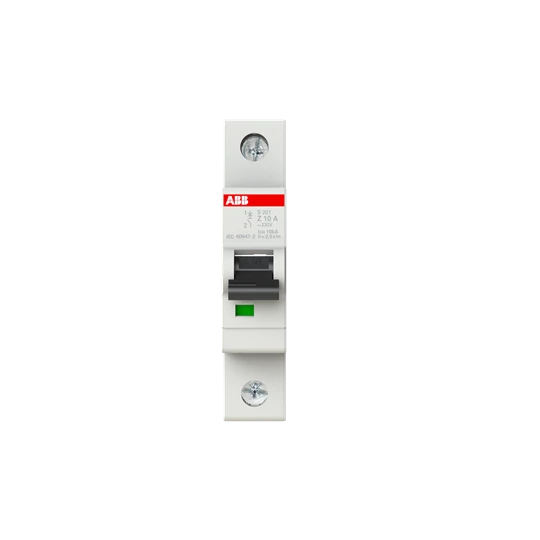

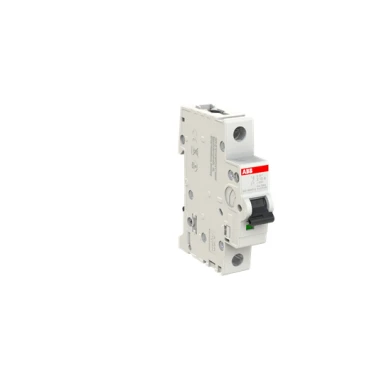

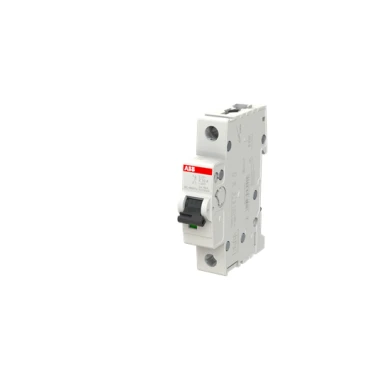

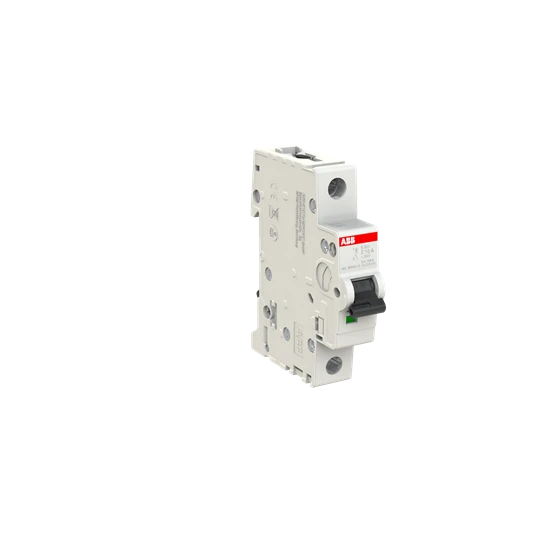

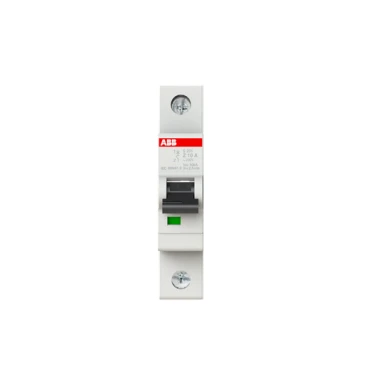

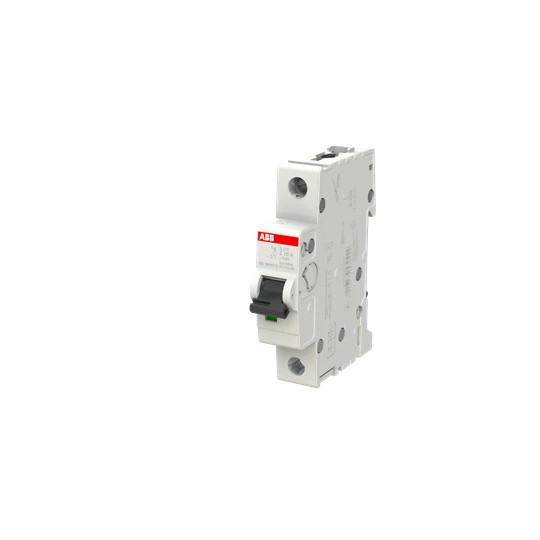

2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker - ABB

Expected in 2-4 weeks
2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker - ABB - S201-Z 10 Miniature Circuit Breaker - ABB - 0
2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker - ABB - S201-Z 10 Miniature Circuit Breaker - ABB - 1
2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker - ABB - S201-Z 10 Miniature Circuit Breaker - ABB - 2
2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker - ABB - S201-Z 10 Miniature Circuit Breaker - ABB - 3
2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker - ABB - S201-Z 10 Miniature Circuit Breaker - ABB - 4
2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker - ABB
8,06 € excl. VAT
10,00 € incl. VAT
Text About:
S201-Z 10 Miniature Circuit Breaker - ABB
10,00 €
SPECIFICATIONS
Additional Information
Connecting capacity Busbar 10 / 10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm²
curve Z
Data sheet, technical information 9AKK107991A8329
E-number (sweden) 2100750
Eclass V11.0 : 27141901
Package level 1 depth / length 183 mm
Product net depth / length 69
mm
Rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Resistance to vibrations acc 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Weee category 5. Small Equipment (No External Dimension More Than 50 cm)
Main
product range S200
Terminal type Screw Terminals
Number of protected poles 1
i²t at switch-on 9AKK107992A5104
Mounting type DIN-Rail
degree of protection IP20
Enclosure with Cover IP40
Complementary
Accessories available Yes
Actuator marking I / O
Ambient air temperature Operation -25 ... +55 °C
Storage -40 ... +70 °C
Cn8 8536 20 10
Declaration of conformity - ce 2CDK403001D0607
Package level 1 gross weight 1.295 kg
Product net weight 0.125
kg
[in] rated current 10 A
Actuator material Insulation Group II, Black, Sealable
Package level 1 height 80 mm
Product net width 17.5
mm
[ics] rated service breaking capacity (133 V AC) 15 kA
(230 V AC) 7.5 kA
Country of origin Germany (DE)
Environmental conditions 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Package level 1 units carton 10 piece
Connecting capacity ul/csa Busbar 18-8 AWG
Conductor 18-4 AWG
Package level 1 width 92 mm
tightening torque 2.8 N·m
dimension 2CDC022007F0010
Package level 2 depth / length 395 mm
Package level 2 ean 4016779971027
Contact position indication Red ON / Green OFF
Environmental information 2CDK400030D0201
Package level 2 gross weight 14.8 kg
Package level 2 height 210 mm
Idea granular category code (igcc) 4897 >> Miniature circuit breakers
Operational voltage Maximum (Incl. Tolerance) 253 V AC
Maximum (Incl. Tolerance) 72 V DC
Package level 2 units carton 120 piece
Instructions and manuals 2CDS207104P0002
mechanical endurance 20000 cycle
Package level 2 width 275 mm
Maximum operating voltage ul/csa 60 V DC
480Y / 277 V AC
Minimum order quantity 1 piece
Input voltage type AC/DC
Power supply connection Arbitrary
wire stripping length 12.5 mm
Object classification code F
Rated conditional short-circuit current (inc) (230 V) 10 kA
(400 V) 10 kA
frequency 50 Hz
Package level 1 ean 4016779607162
Housing material Insulation Group II, RAL 7035
Offered with extended lifetime Product Durability - Achieved
Pollution degree 3
Product net height 88
mm
Rated short-circuit capacity (AC) 6 kA
(DC) 6 kA
(230 V AC) 6 kA
(400 V AC) 6 kA
mounting position any
Rated frequency (f) 50 / 60 Hz
Rated impulse withstand voltage (uimp) 4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Mounting on din rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Rated insulation voltage (ui) acc. to IEC/EN 60664-1 440 V
Power loss 2.7 W
at Rated Operating Conditions per Pole 2.7 W
Rated operational voltage acc. to IEC 60898-1 230 V AC
acc. to IEC 60947-2 230 V AC
Reach declaration 9AKK107492A1906
Poles description 1
Recommended screw driver Pozidriv 2
Resistance to shock acc 25g / 2 shocks / 13 ms
Tightening torque ul/csa 18 in·lb
Sustainable material content 0 %
Rated ultimate short-circuit breaking capacity (icu) (133 V AC) 20 kA
(230 V AC) 10 kA
(24 V DC) 20 kA
(60 V DC) 10 kA
Environment
Built-in depth (t2) 69 mm
Customs tariff number 85362010
Electrical endurance 20000 AC cycle
Eplan catalog tree Electrical engineering / Protection devices / General
Certification agency EN
IEC
UL
Environmental product declaration - epd 9AKK108467A7832
Eplan graphical macro 9AKK106713A8095
Eplan macro 9AKK106713A8090
ETIM - 8 EC000042 - Miniature circuit breaker (MCB)
overvoltage category III
standards IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
Circular design principles recyclability rate Design for Closing Resource Loops - Standard EN45555 - 90 %
Declaration of conformity - ukca 9AKK108467A5053
Etim 7 EC000042 - Miniature circuit breaker (MCB)
Pole net weight 0.125 kg
Width in number of modular spacings 1
Eplan function definition Circuit breaker / Single circuit breaker / Circuit breaker 1_2
Weee b2c / b2b Business To Business
E-number (finland) 3210709
Offered with takeback services Take Back for Recycling - Achieved
Rohs information 2CDK403001D0607
Screw terminal type Failsafe Bi-directional Cylinder-lift Terminal
Unspsc 39121603
Installation size acc. to DIN 43880 1
dielectric test voltage 50/60 Hz, 1 min: 2 kV
Interrupting rating acc (277 V AC) 6 kA
(60 V DC) 10 kA
(120 V) 10 kA
About this product

The 2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker is developed to meet the demands of business buyers, such as installers, wiremen, service organizations, and manufacturing originators. 2CDS251001R0428 yields unmatched standards and value for professionals in the energy management industry. This S201-Z 10 Miniature Circuit Breaker and other S201 from ABB are available at the optimal price and procurement time through BaltElec website, a well-regarded vendor meeting the needs of industry experts in their buying needs.

Contractors who have acquired ABB S201 have regularly admired the producer's solidity. It has been indicated that the unmatched performance of 2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker extends to a variety of scenarios. Its superior features make it fitting for various requirements, securing success in your industrial, tertiary, and automation endeavors.

Our experts concentrates in meeting industrial and tertiary professionals’ needs. We know the individual specifications and anticipations of our customers in the market. By aligning with our company, your business obtain access to the leading rates and supply timeline of superior products like 2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker from ABB at an attractive price. Baltelec account members enjoy extra discounts and first-class attention.

Start immediately and acquire 2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker at our verified and hassle-free virtual storefront. Don't delay in making this prudent move that confirms the greatest quality and covers the distinct specifications of vendors like your organization.

If there are any concerns or concerns about 2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker or any other ABB products, communicate with us or refer to our Frequently Asked Questions section below. We have consolidated answers to common issues to benefit you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, 2CDS251001R0428 - S201-Z 10 Miniature Circuit Breaker from ABB is sure, thrifty, and exceptional to its rivals in the S201 category. Don't hesitate to make it a part of your configuration this moment. Get at Baltelec e-shop, your reliable source for all your ABB.

In our Baltelec.eu online store you will locate S201-Z 10 Miniature Circuit Breaker - 2CDS251001R0428 worth 9.84 €, which will be a faithful and new solution for your demands. This produce is designed by the ABB brand using the advanced technologies and satisfies the uppermost standards of guarding and capability. We provide goods from the S201 category that mix lastingness and functionality, which is an superior selection for various uses. Not minding of whether you call for gear for small production or for professional industrial exertion, S201-Z 10 Miniature Circuit Breaker will be a secure facilitator in your duty.

Baltelec strives to make the buying process as effortless and fast as achievable for our shoppers. We offer detailed narratives and high-quality illustrations of S201-Z 10 Miniature Circuit Breaker so that you can make an briefed choice. A team of virtuosos is always ready to help you with any enquiries in the S201 section involved to the picking and use of items. We are convinced that S201-Z 10 Miniature Circuit Breaker will meet your criteria and become an significant element of your apparatus for just 9.84 €.
