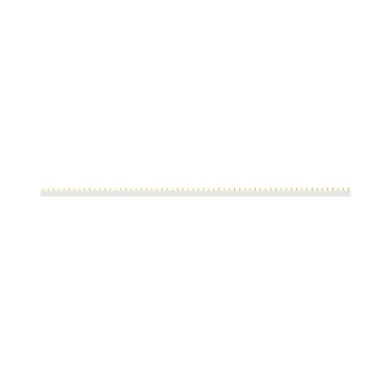

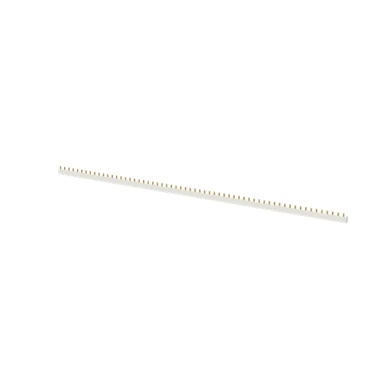

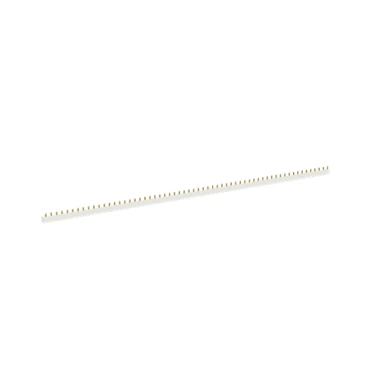

2CDL230001R1060 - PS 3/60 Busbar - ABB
Expected in 2-4 weeks
SPECIFICATIONS
Additional Information
Data sheet, technical information
9AKK107991A8329
E-number (sweden)
2102712
Eclass
V11.0 : 27371306
Package level 1 depth / length
1070 mm
Product net depth / length
1056
mm
mm
Ral number
RAL 7035 - Light Grey
Rohs status
Following EU Directive 2011/65/EU
Suitable for product class
3-pole or 1-pole devices
Weee category
4. Large Equipment (Any External Dimension More Than 50 cm)
Main
Number of phases
3
Complementary
Accessory type
Busbar
Cn8
8536 90 10
Declaration of conformity - ce
2CDK446006D0403
Package level 1 gross weight
5.09 kg
Product net weight
0.487
kg
kg
suitable for
S200
F200
DDA200
F200
DDA200
Package level 1 height
80 mm
Product net width
14.8
mm
mm
Country of origin
Germany (DE)
Package level 1 units
carton 10 piece
Package level 1 width
80 mm
Pitch
44698.0
Environmental information
DIN EN 60068
Idea granular category code (igcc)
4378 >> Phase busbar
Number of mountable devices
20
Instructions and manuals
No document needed
Colour
grey
Number of terminals (nterm)
60
Minimum order quantity
1 piece
Object classification code
W
Package level 1 ean
4016779514699
Rated cross-section
10 mm²
Housing material
Light grey, RAL 7035
Pollution degree
2
Product net height
29
mm
mm
Rated short-time withstand current low voltage (icw)
25 kA
mounting position
any
Rated frequency (f)
50 / 60 Hz
DC
DC
Rated uninterrupted current (iu)
63 A
Rated operational voltage
690 V AC/DC
Maximum 690 V
Maximum 690 V
Poles description
60
Environment
Connection type
Pin
Customs tariff number
85369010
Eplan catalog tree
Electrical engineering / Protection devices / General
ETIM - 8
EC000215 - Phase busbar
overvoltage category
III
standards
IEC/EN 60947-1
Etim 7
EC000215 - Phase busbar
Width in number of modular spacings
60
Weee b2c / b2b
Business To Business
E-number (finland)
3259497
Rohs information
2CDK440009K0203
Unspsc
39121117
