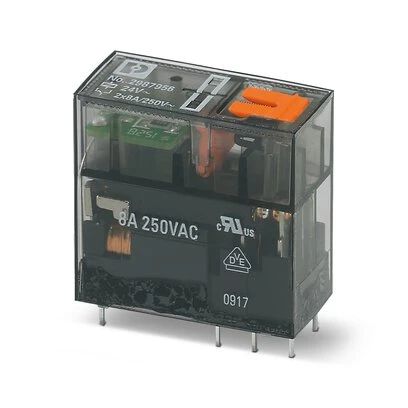

2987956 - REL-MR- 24AC/21-21/MS - Phoenix Contact

Pending restock
2987956 - REL-MR- 24AC/21-21/MS - Phoenix Contact - REL-MR- 24AC/21-21/MS - Phoenix Contact - 0
2987956 - REL-MR- 24AC/21-21/MS - Phoenix Contact - REL-MR- 24AC/21-21/MS - Phoenix Contact - 1
2987956 - REL-MR- 24AC/21-21/MS - Phoenix Contact - REL-MR- 24AC/21-21/MS - Phoenix Contact - 2
2987956 - REL-MR- 24AC/21-21/MS - Phoenix Contact - REL-MR- 24AC/21-21/MS - Phoenix Contact - 3
2987956 - REL-MR- 24AC/21-21/MS - Phoenix Contact - REL-MR- 24AC/21-21/MS - Phoenix Contact - 4
2987956 - REL-MR- 24AC/21-21/MS - Phoenix Contact - REL-MR- 24AC/21-21/MS - Phoenix Contact - 5
2987956 - REL-MR- 24AC/21-21/MS - Phoenix Contact
4,37 € excl. VAT
5,42 € incl. VAT
Text About:
REL-MR- 24AC/21-21/MS - Phoenix Contact
5,42 €
SPECIFICATIONS
Main
catalog page Page 292 (C-5-2019)
mechanical service life 5x 106 cycles
gtin 4046356480666
Product type Single relay
item number 2987956
packing unit 10 pc
product key CK6195
weight per piece (excluding packing) 18.09 g
weight per piece (including packing) 19.57 g
Complementary
drive and function monostable

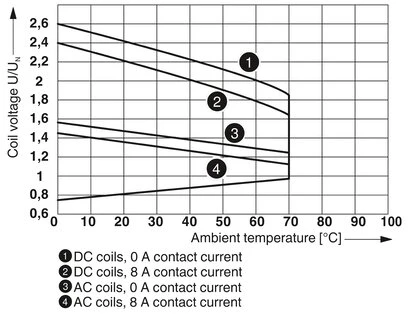

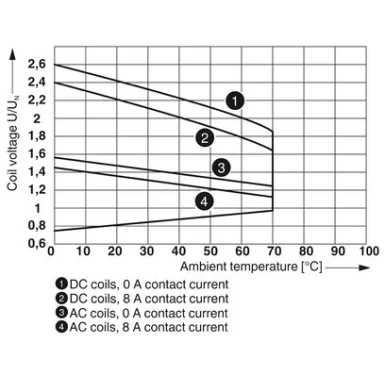

input voltage range 18.7 V AC ... 34.8 V AC
maximum power dissipation for nominal condition 0.77 W
connection method Plug / solder connection
limiting continuous current 8 A
mains frequency 50/60 Hz
nominal input voltage un 24 V AC
Country of origin CN
interrupting rating (ohmic load) max. 2000 VA (for 250 V AC)
maximum inrush current 16 A (20 ms)

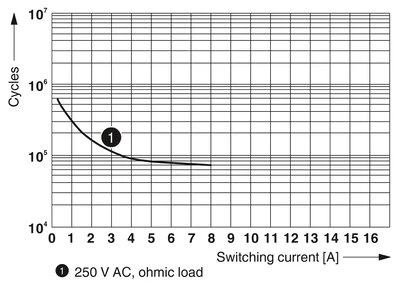

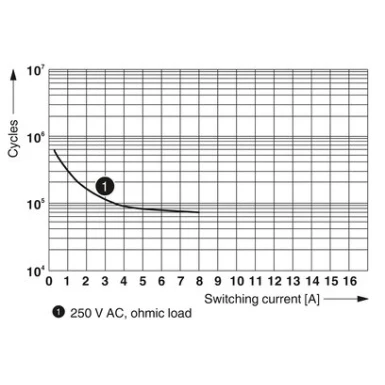

service life electrical see diagram
contact type 2 changeover contacts
Handle front plate colour 29 mm
typical input current at un 32 mA
test voltage (contact/contact) 2.5 kV AC (50 Hz, 1 min., contact/contact)
type of switch contact Single contact
typical release time range 2 ms ... 8 ms (depending on phase relation)
test voltage (winding/contact) 5 kV AC (50 Hz, 1 min., winding/contact)
typical response time 3 ms ... 12 ms (depending on phase relation)
min. switching current 10 mA (at 12 V)
contact material AgNi

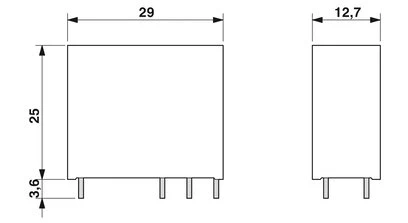

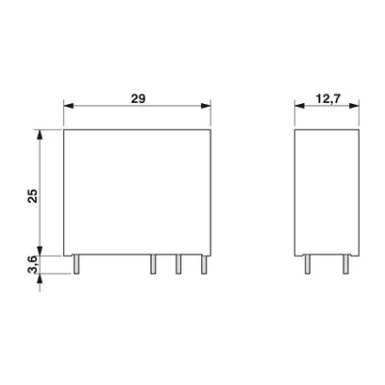

width (w) 12.7 mm
Minimum order quantity 10 pc
depth 25 mm
minimum switching voltage 12 V (at 10 mA)
Maximum switching voltage 250 V AC/DC
Environment
Ambient air temp for storage/transportation -40 °C ... 85 °C
china rohs Environmentally friendly use period: unlimited = EFUP-e
Customs tariff number 85364190
eclass-11.0 27371601
Specifications - Environmental Product Compliance: No hazardous substances above threshold values
ambient air temperature for operation -40 °C ... 70 °C
eclass-12.0 27371601
ETIM - 8 EC001437
eclass-13.0 27371601
unspsc 21.0 39122300
About this product

The 2987956 - REL-MR- 24AC/21-21/MS is formulated to cater to the necessities of trade buyers, such as control panel builders, electricians, facility upkeep providers, and primary equipment makers. 2987956 provides first-rate integrity and gain for professionals in the power engineering industry. This REL-MR- 24AC/21-21/MS and other Terminal Blocks, Cable Ends from Phoenix Contact can be purchased at the unbeatable price and procurement time through BALTELEC website, a well-known provider serving tradesmen in their acquisition needs.

Clients who have adopted Phoenix Contact Terminal Blocks, Cable Ends have consistently lauded the manufacturer’s trustworthiness. It has been mentioned that the remarkable operation of 2987956 - REL-MR- 24AC/21-21/MS extends to a multitude of deployments. Its ideal specifications make it perfect choice to suit a variety of needs, guaranteeing the success of your industrial, tertiary, and automation contracts.

BaltElec team commits in meeting industrial and tertiary professionals’ needs. We understand the individual standards and anticipations of our buyers in the market. By teaming up with our company, our partners get access to the top charges and stock of excellent products like 2987956 - REL-MR- 24AC/21-21/MS from Phoenix Contact at a competitive price. Account holders take advantage of further discounts and top-tier service.

Get started and request 2987956 - REL-MR- 24AC/21-21/MS at our safe and accessible online portal. Don't delay in making this savvy pick that ensures the top quality and addresses the individual criteria of contractors like your enterprise.

If you encounter any queries or concerns about 2987956 - REL-MR- 24AC/21-21/MS or any other Phoenix Contact products, get in touch with us or refer to our Frequently Asked Questions section below. We have compiled answers to popular problems to guide you further in making an considered decision about industrial and tertiary electrical components.

Remember, 2987956 - REL-MR- 24AC/21-21/MS from Phoenix Contact is trustworthy, value-priced, and elite to its rivals in the Terminal Blocks, Cable Ends category. Make it a part of your infrastructure without delay. Snap up at BaltElec, your dependable vendor for all your Phoenix Contact.

In our Baltelec.eu online store you will locate REL-MR- 24AC/21-21/MS - 2987956 worth 5.33 €, which will be a secure and innovative solution for your wishes. This article is formulated by the Phoenix Contact brand using the modern technologies and follows the optimal standards of assurance and capability. We provide items from the Terminal Blocks, Cable Ends category that integrate lastingness and usefulness, which is an premium preference for various functions. Regardless of whether you require tools for small manufacturing or for qualified industrial utilization, REL-MR- 24AC/21-21/MS will be a constant companion in your job.

Baltelec attempts to make the buying process as effortless and fast as realizable for our buyers. We offer detailed outlines and high-quality photos of REL-MR- 24AC/21-21/MS so that you can make an conscious choice. A team of masters is always ready to help you with any uncertainties in the Terminal Blocks, Cable Ends section associated to the determining and use of articles. We are confident that REL-MR- 24AC/21-21/MS will meet your prospects and become an crucial element of your machinery for just 5.33 €.

Common Questions about Phoenix Contact 2987956:

  • Why should I buy 2987956 - REL-MR- 24AC/21-21/MS from Baltelec.eu online store?

    When ordering 2987956 from Baltelec, you obtain authentic quality Phoenix Contact Terminal Blocks, Cable Ends products at affordable prices and turnaround time. Furthermore, registered accountstake pleasure in further discounts and expedited requests handling.

  • Can you consult if 2987956 is appropriate for my undertaking?

    To confirm that Phoenix Contact 2987956 matches your drawings, we provide detailed information regarding product's specs, technical characteristics, and compatibility. You can access this information on the specific page of the item name. If you seek further assistance, our customer service representative is available to help you in reaching an informed decision.

  • Which guarantee coverage is offered for Phoenix Contact REL-MR- 24AC/21-21/MS?

    Baltelec.eu team is committed to the excellence of the items we distribute. The standard warranty coverage for Phoenix Contact Terminal Blocks, Cable Ends including Phoenix Contact 2987956 is 12 months. Nevertheless, it depends according to the specific item, product category, and may even be extended. You can discover detailed guarantee details on the 2987956 - REL-MR- 24AC/21-21/MS dedicated page or by contacting our customer service representatives.

  • Can you provide international shipping for 2987956 and other Phoenix Contact products?

    Certainly. Besides serving Estonia, Latvia, Lithuania and other European Union countries, we offer global shipping for 2987956 - REL-MR- 24AC/21-21/MS. Please be aware that delivery options, costs, and delivery schedule may vary depending on the destination. In the case of complex requests, please consult Baltelec.eu sales staff.

  • Do Phoenix Contact MBC provided by Baltelec.eu meet international norms for safety and quality?

    Of course. All Phoenix Contact items offered at BALTELEC online store conform to international standards such as IEC 60898-1 standard and carry the CE certification. These standards assure that the products fulfill rigorous safety, technical, reliability, and functional criteria.

  • Can BaltElec offer assistance on incorporating renewable energy solutions, such as solar energy systems or wind energy converters, into my projects?

    Absolutely!  Baltelec website understands the importance of renewable energy incorporation within community. Our group of professionals can assist you in choosing the right Phoenix Contact items, to incorporate them into your renewable energy solutions}. We can provide advice on integrating solar energy systems, wind power converters, and alternative sustainable options to maximize energy generation and effectiveness.

  • Do you have eco-friendly options offered within the Terminal Blocks, Cable Ends category to encourage environmental sustainability?

    Certainly! Baltelec website offers various eco-friendly solutions within the Terminal Blocks, Cable Ends category that are in line with environmental sustainability objectives. Our top-quality Phoenix Contact products, like the 2987956 - REL-MR- 24AC/21-21/MS, are crafted with energy conservation in mind. By incorporating these products into your electrical system, you can optimize energy usage and lower environmental impact. Additionally, we offer competitive pricing for our eco-friendly Phoenix Contact products,, making them an economical choice for advocating sustainability.

  • Are 2987956 available by Baltelec.eu original?

    Absolutely, we exclusively provide original Phoenix Contact products, including but not limited to REL-MR- 24AC/21-21/MS. We obtain our products exclusively through official distribution channels to assure their authenticity and superior standards.
