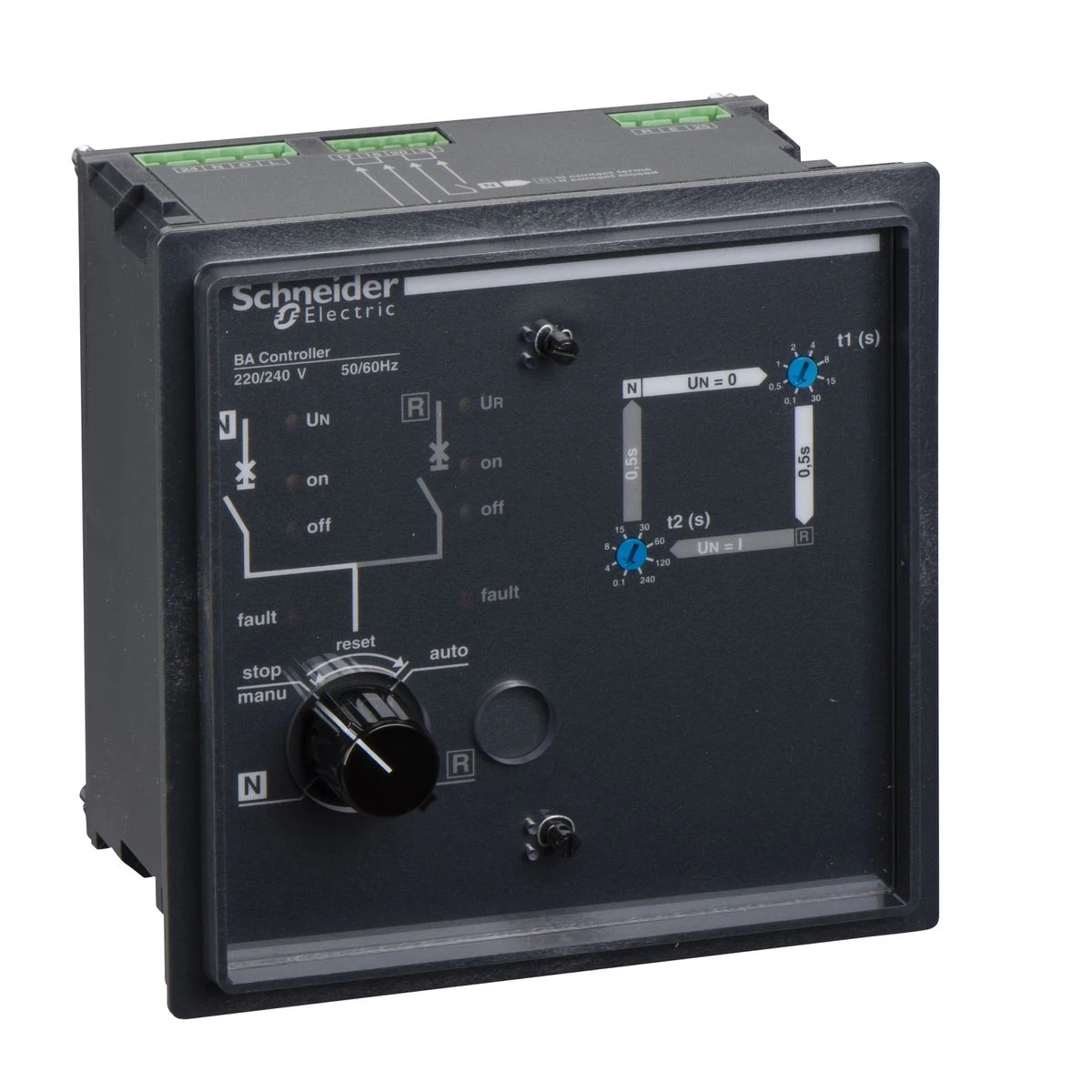

29376 - Automatic controller BA 220..240 V - Schneider Electric
Expected in 2-4 weeks
SPECIFICATIONS
Main
Product Name
BA
Complementary
[ie] rated operational current
AC-12: 4 A AC 440 V
AC-12: 5 A AC 380/415 V
DC-13: 2 A 24 V
AC-12: 5 A AC 380/415 V
DC-13: 2 A 24 V
Interlocked device
Compact NS630b...1600
MasterPact NW
Compact NS100...630
MasterPact NT
MasterPact NW
Compact NS100...630
MasterPact NT
[ith] conventional thermal current
8 A
Complementary function
Additional contact: transfer to replacement source only if contact is closed
Voluntary transfer to replacement source (e.g. energy management commands)
Voluntary transfer to replacement source (e.g. energy management commands)
Product or component type
Control unit
[us] rated supply voltage
220...240 V AC at 50/60 Hz
Output type
Contacts customer: indication of operation in automatic or stop mode
Selection modes
Circuit breaker on R
Circuit breaker on N
Circuit breaker on N
Ik degree of protection
Front: IK07 conforming to EN 50102
input type
Contacts customer voluntary order to transfer to source R
Local signalling
Fault trip
Off
On
Off
On
Test function
By opening the P25M circuit breaker supplying the controller
Operating mode
Stop (both normal and replacement source off)
Forced operation on normal source
Forced operation on replacement source
Automatic operation
Forced operation on normal source
Forced operation on replacement source
Automatic operation
Environment
ip degree of protection
IP20 connectors: conforming to EN 60529
IP40 front: conforming to EN 60529
IP30 side: conforming to EN 60529
IP40 front: conforming to EN 60529
IP30 side: conforming to EN 60529
standards
IEC 947-5-1
