2906032 - CBMC E4 24DC/1-10A NO - Phoenix Contact
Expected in 2-4 weeks
SPECIFICATIONS
Main
catalog page
Page 375 (C-4-2019)
no. of channels
4
number of positions
1
flammability rating according to ul 94
V-0
product family
CBMC
gtin
4055626149356
Mounting type
DIN rail: 35 mm
Product type
Device circuit breakers
item number
2906032
Rated voltage
24 V DC
packing unit
1 pc
degree of protection
IP20
product key
CLA152
weight per piece (excluding packing)
133.94 g
weight per piece (including packing)
140.2 g
Complementary
channel led green
lit (Channel switched on)
closed circuit current i0
typ. 25 mA
fuse
electronic
[in] rated current
1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 A DC (adjustable per output channel)
channel led off
off (Channel switched off)
connection method
Push-in connection
rated surge voltage
0.5 kV
Country of origin
DE
fail-safe element
15 A DC (per output channel)
conductor cross section, rigid [awg]
0.2 mm² ... 2.5 mm²
feedback resistance
max. 35 V DC
Handle front plate colour
90 mm
conductor cross section awg
24 ... 12
Efficiency
> 99 %
max. capacitive load
45000 µF (Depending on the current setting and the short-circuit current available)
conductor cross section flexible, with ferrule without plastic sleeve
0.25 mm² ... 2.5 mm²
connection name
Remote indication circuit
measuring tolerance i
± 15 %
module initialization time
1.6 s
conductor cross section, flexible, with ferrule, with plastic sleeve
0.25 mm² ... 1.5 mm²
note
Repeated hard short circuits can reduce the melting integral of the integrated backup fuse.
operating current
100 mA DC
operating voltage
0 V DC ... 30 V DC
width (w)
36 mm
rated current (pre-adjusted)
4 A
Colour
light grey RAL 7035
stripping length
10 mm
Minimum order quantity
1 pc
required backup fuse
Only required if Imax of the power supply > the short-circuit switching capacity. Integrated failsafe element.
short-circuit switching capacity
300 A
switching function
N/O contact
depth
98 mm (incl. DIN rail 7.5 mm)
tripping method
E (electronic)
Network type
DIN rail module, one-piece
waiting time after switch off of a channel
5 s (at overload / short circuit)
Pollution degree
2
dielectric strength
max. 35 V DC (Load circuit)
Environment
Ambient air temp for storage/transportation
-40 °C ... 70 °C
china rohs
Environmentally Friendly Use Period = 50 years
Customs tariff number
85362010
eclass-11.0
27140401
protection class
III
Specifications - Environmental Product Compliance:
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
standards/specifications
EN 50178

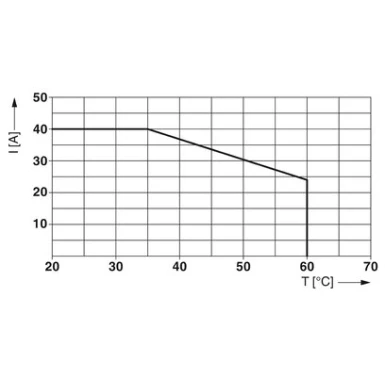

ambient air temperature for operation
-25 °C ... 60 °C
eclass-12.0
27140401
ETIM - 8
EC003538
reach svhc
Lead 7439-92-1
humidity test
96 h, 95 % RH, 40 °C
shock (operation)
30g (IEC 60068-2-27, Test Ea)
unspsc 21.0
39121400
