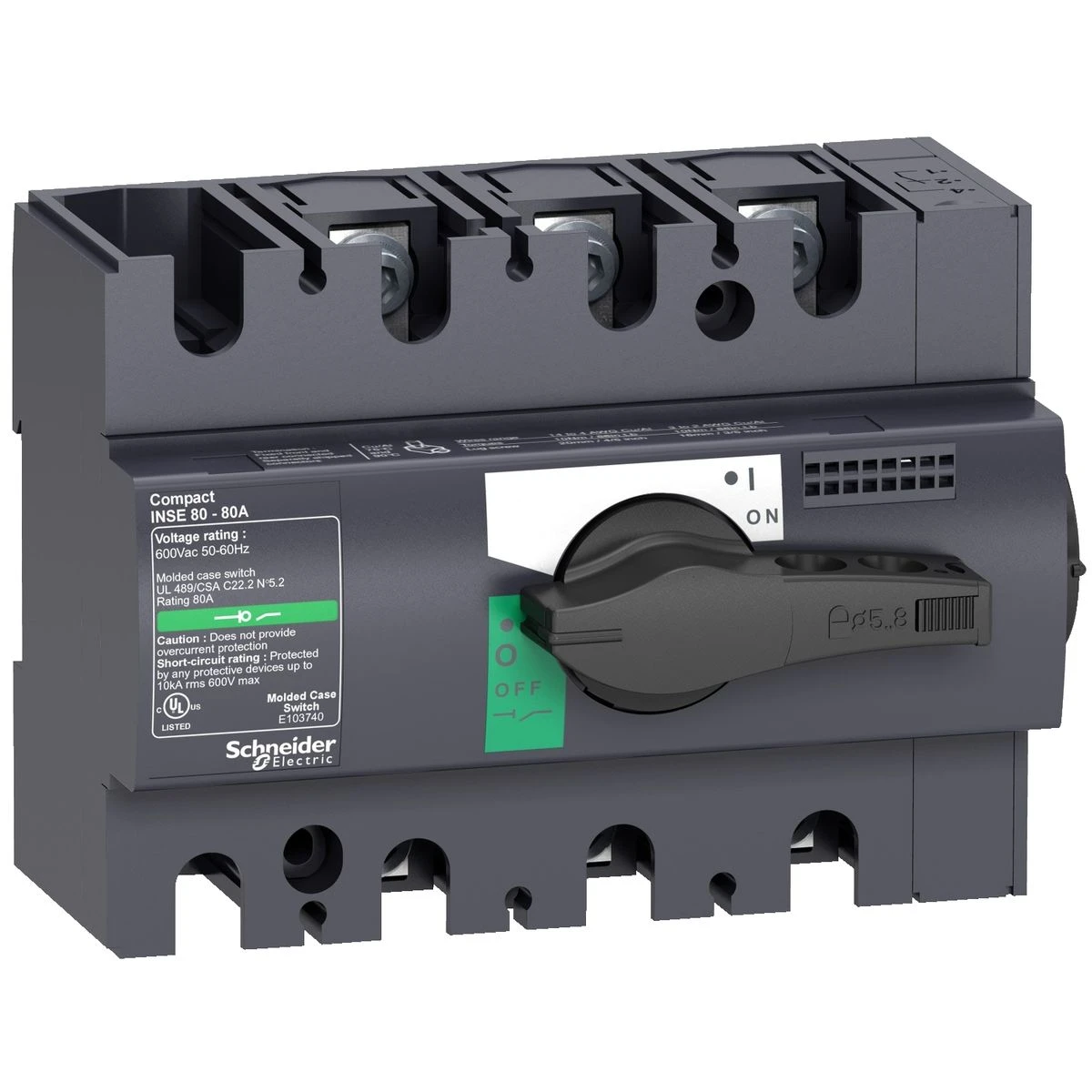

28998 - Switchdisconnector Interpact INSE80 3 poles 80 A - Schneider Electric
Expected in 2-4 weeks
SPECIFICATIONS
Main
Range
ComPact
Product Name
INSE80
switch-disconnector name
Interpact INSE80
Complementary
[icm] rated short circuit making capacity
10 kA protected by any protection device 600 V AC at 50/60 Hz
100 kA protected by circuit breaker NSE100 - 100A 240 V AC at 50/60 Hz
18 kA protected by circuit breaker NSE100 - 100A 600 V AC at 50/60 Hz
50 kA with class T or RK fuses 100 A 600 V AC at 50/60 Hz
65 kA protected by circuit breaker NSE100 - 100A 480 V AC at 50/60 Hz
100 kA protected by circuit breaker NSE100 - 100A 240 V AC at 50/60 Hz
18 kA protected by circuit breaker NSE100 - 100A 600 V AC at 50/60 Hz
50 kA with class T or RK fuses 100 A 600 V AC at 50/60 Hz
65 kA protected by circuit breaker NSE100 - 100A 480 V AC at 50/60 Hz
[ie] rated operational current
80 A AC 50/60 Hz 600 V
[ue] rated operational voltage
600 V AC 50/60 Hz
Control type
Rotary handle
Product certifications
KEMA
ASEFA
ASTA
ASEFA
ASTA
Handle front plate colour
100 mm
[uimp] rated impulse withstand voltage
8 kV
Contact position indication
Yes
width (w)
135 mm
network frequency
50/60 Hz
Mounting mode
Fixed
Net weight
0.8 kg
Downside connection
Front
Mounting support
35 mm symmetrical DIN rail
Plate
Plate
depth
62.5 mm
electrical durability
6000 cycles full load
Network type
AC
Suitability for isolation
Yes
Poles description
3P
Upside connection
Front
Environment
standards
CSA C22.2 No 5.2
UL 489
UL 489
