2865609 - MACX MCR-EX-SL-SD-24-48-LP - Phoenix Contact
Expected in 2-4 weeks
124,62 € excl. VAT
152,03 € incl. VAT
Text About:

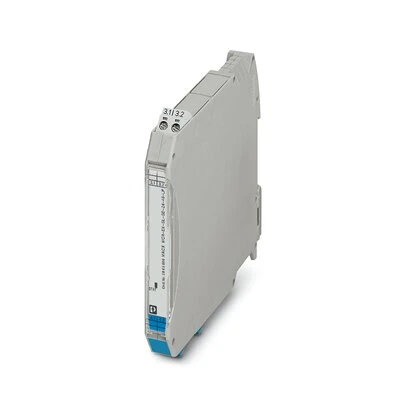

MACX MCR-EX-SL-SD-24-48-LP - Phoenix Contact
SPECIFICATIONS
Additional Information
certificate
RU C-DE.AB72.B.00093/19
emc note
EMC: class A product, see manufacturer's declaration in the download area
emc
A
max. external inductivity lo / max. external capacitance co3
10 mH / 250 nF, 5 mH / 250 nF, 1 mH / 350 nF, 0.1 mH / 663 nF
enclosure
Required protection according to the Rules shall be provided upon installation on board
humidity
B
identification
3
max. external inductivity lo / max. external capacitance co4
17 mH / 0.663 µF
max. external inductivity lo / max. external capacitance co5
20 mH / 68 nF, 10 mH / 68 nF, 5 mH / 68 nF, 1 mH / 79 nF, 0.1 mH / 108 nF
temperature
B
input power pi
negligible
max. external inductivity lo / max. external capacitance co6
4 mH / 0.085 µF
vibration
A
max. internal capacitance ci
negligible
max. internal inductance li
negligible
max. output current io
101 mA
max. output power po
697 mW
max. output voltage uo
27.7 V
Main
catalog page
Page 167 (C-5-2019)
no. of channels
1
flammability rating according to ul 94
V0 (Housing)
product family
MACX Analog
gtin
4046356158411
Mounting type
DIN rail mounting
Product type
Solenoid driver
item number
2865609
packing unit
1 pc
degree of protection
IP20 (not assessed by UL)
product key
CK3142
weight per piece (excluding packing)
113.7 g
weight per piece (including packing)
172.2 g
Complementary
current limitation
> 48 mA
electrical isolation
2-way isolation
max. current input signal
85 mA (Ue = 24 V DC)
status display
Yellow LED (switching state / status, lights up when output circuit is active)
connection method
Screw connection

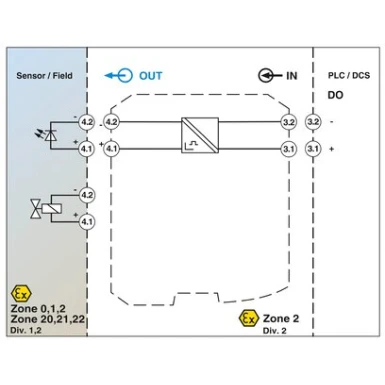

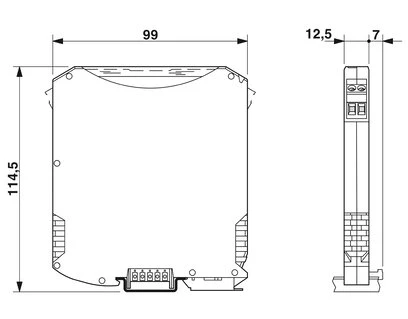

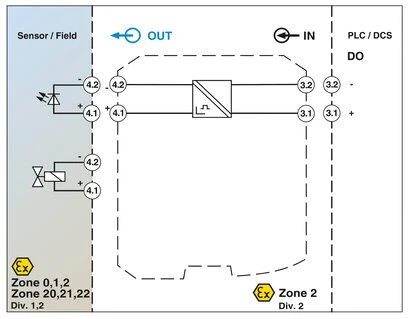

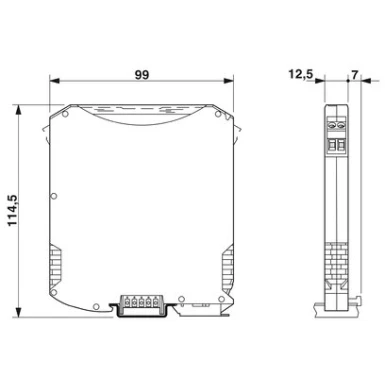

depth ns 35/7,5
114.5 mm (Snapped onto DIN rail NS 35/7,5 in accordance with EN 60715)
non-load voltage
> 24 V DC
conductor cross section, flexible [awg]
0.2 mm² ... 2.5 mm²
Country of origin
DE
maximum temperature coefficient
0.01 %/K
output description
intrinsically safe
response time
< 20 ms
conductor cross section, rigid [awg]
0.2 mm² ... 2.5 mm²
Handle front plate colour
112.5 mm
output resistor
≥ 275.7 Ω (Internal resistance Ri)
supply voltage range
loop-powered, no external supply necessary
tightening torque
0.5 Nm ... 0.6 Nm
voltage input signal
19.2 V DC ... 30 V DC (24 V DC, -20 % ... +25 %)
conductor cross section awg
24 ... 14
Rated insulation voltage
300 Vrms
short-circuit-proof
yes
note
and EN 61326

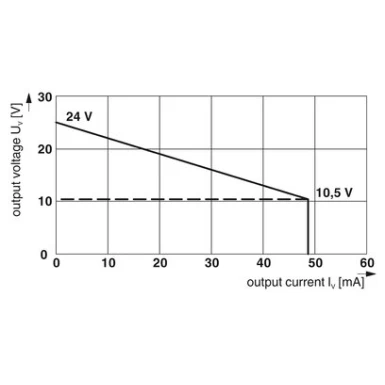

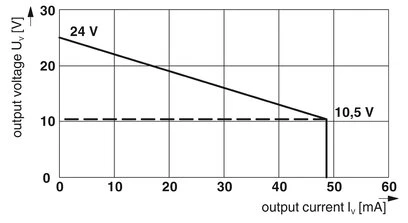

output voltage
≥ 10.5 V DC (48 mA)
width (w)
12.5 mm
number of outputs
1
screw thread
M3
stripping length
7 mm
test voltage
2.5 kV AC (50 Hz, 60 s)
Minimum order quantity
1 pc
Power dissipation
< 1.41 W
depth
113.7 mm
Network type
Ex i signal conditioners with SIL functional safety
Number of inputs
1
Housing material
PA 6.6-FR
Pollution degree
2
Insulation
Safe isolation in accordance with IEC/EN 61010-1
Environment
altitude
≤ 2000 m
Ambient air temp for storage/transportation
-40 °C ... 80 °C
china rohs
Environmentally Friendly Use Period = 50 years
Customs tariff number
85437090
eclass-11.0
27210120
Specifications - Environmental Product Compliance:
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
ambient air temperature for operation
-40 °C ... 70 °C (any mounting position, pay attention to the derating curve in the data sheet)
eclass-12.0
27210120
electromagnetic compatibility
Conformance with EMC directive
ETIM - 8
EC002653
overvoltage category
II
reach svhc
Lead 7439-92-1
eclass-13.0
27210120
noise immunity
EN 61000-6-2
noise emission
EN 61000-6-4
unspsc 21.0
39121000
permissible humidity (operation)
10 % ... 95 % (non-condensing)
