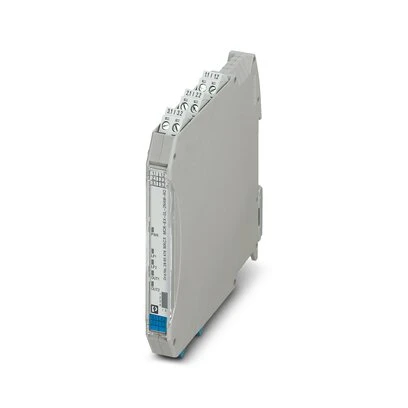

2865476 - MACX MCR-EX-SL-2NAM-RO - Phoenix Contact

Expected in 2-4 weeks
2865476 - MACX MCR-EX-SL-2NAM-RO - Phoenix Contact - MACX MCR-EX-SL-2NAM-RO - Phoenix Contact - 0
2865476 - MACX MCR-EX-SL-2NAM-RO - Phoenix Contact - MACX MCR-EX-SL-2NAM-RO - Phoenix Contact - 1
2865476 - MACX MCR-EX-SL-2NAM-RO - Phoenix Contact - MACX MCR-EX-SL-2NAM-RO - Phoenix Contact - 2
2865476 - MACX MCR-EX-SL-2NAM-RO - Phoenix Contact
135,46 € excl. VAT
165,26 € incl. VAT
Text About:
MACX MCR-EX-SL-2NAM-RO - Phoenix Contact
165,26 €
SPECIFICATIONS
Additional Information
certificate RU C-DE.AB72.B.00093/19
emc note EMC: class A product, see manufacturer's declaration in the download area
max. external inductivity lo / max. external capacitance co 100 mH / 1 µF, 5 mH / 1 µF, 1 mH / 1 µF, 10 µH / 1 µF
emc B
enclosure Required protection according to the Rules shall be provided upon installation on board
max. external inductivity lo / max. external capacitance co2 1000 mH / 210 µF
humidity B
identification 3
max. external inductivity lo / max. external capacitance co4 1000 mH / 26 µF
max. external inductivity lo / max. external capacitance co5 100 mH / 500 nF, 50 mH / 570 nF, 5 mH / 590 nF, 1 mH / 590 nF, 10 µH / 590 nF
temperature B
max. external inductivity lo / max. external capacitance co6 300 mH / 3.6 µF
vibration A
max. internal capacitance ci 11 nF
max. internal inductance li negligible
max. output current io 10 mA
max. output power po 25 mW
max. output voltage uo 9.6 V
Main
catalog page Page 156 (C-5-2019)
configuration DIP switches
flammability rating according to ul 94 V0 (Housing)
product family MACX Analog
gtin 4046356160490
Mounting type DIN rail mounting
Product type Isolation amplifier
item number 2865476
packing unit 1 pc
degree of protection IP20 (not assessed by UL)
product key CK3141
weight per piece (excluding packing) 143.3 g
weight per piece (including packing) 196.5 g
Complementary
electrical isolation 3-way isolation
maximum power dissipation for nominal condition < 1 W
application Digital IN
connection method Screw connection

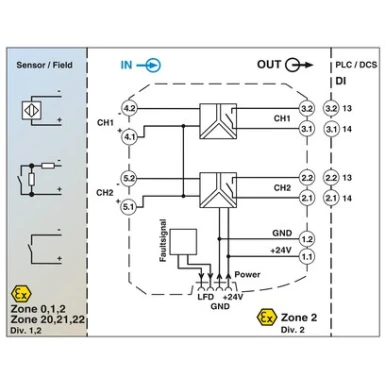

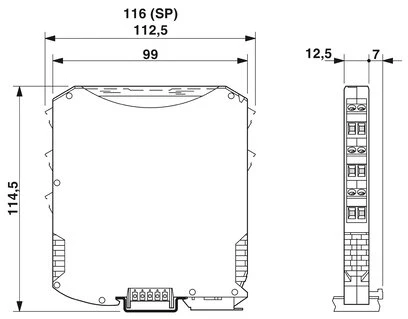

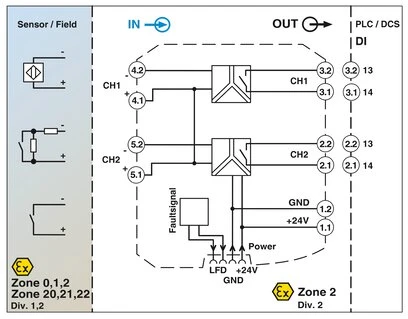

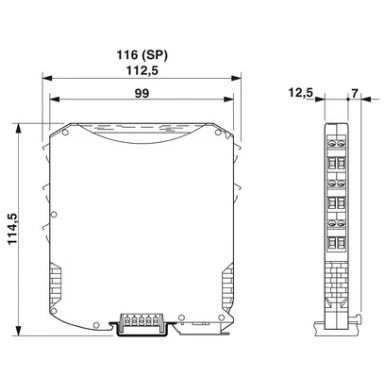

depth ns 35/7,5 114.5 mm (Snapped onto DIN rail NS 35/7,5 in accordance with EN 60715)
electrical isolation between input and output yes
non-load voltage 8 V DC
power consumption 0.8 W
conductor cross section, flexible [awg] 0.2 mm² ... 2.5 mm²
Country of origin DE
recommended minimum load 5 V / 10 mA
conductor cross section, rigid [awg] 0.2 mm² ... 2.5 mm²
contact type 1 N/O contact per channel
Handle front plate colour 112.5 mm
max. current consumption 35 mA (24 V DC)
supply voltage range 19.2 V DC ... 30 V DC
tightening torque 0.5 Nm ... 0.6 Nm
conductor cross section awg 24 ... 14
description of the input Intrinsically safe
switching hysteresis < 0.2 mA
nominal supply voltage 24 V DC -20 % ... +25 %
Rated insulation voltage 60 V AC/DC (Power supply, input / output)
switching threshold "0" signal current < 1.2 mA (blocking)
switching threshold "1" signal, current > 2.1 mA (conductive)
note and EN 61326
contact material AgSnO2, hard gold-plated
width (w) 12.5 mm
number of outputs 2
screw thread M3
switching frequency ≤ 20 Hz (without load)
stripping length 7 mm
test voltage 2.5 kV AC (50 Hz, 60 s)
Minimum order quantity 1 pc
Power dissipation < 1 W
depth 113.7 mm
Network type Ex i signal conditioners with SIL functional safety
Number of inputs 2
Housing material PA 6.6-FR
Maximum switching capacity 500 VA
Insulation Safe isolation in accordance with IEC/EN 61010-1
Short-circuit current 8 mA
Environment
altitude ≤ 2000 m (For use at altitudes ≥2000 m above sea level, see data sheet.)
Ambient air temp for storage/transportation -40 °C ... 85 °C
china rohs Environmentally Friendly Use Period = 50 years
Customs tariff number 85365019
degree of pollution 2
designation Conducted interferences
eclass-11.0 27210121
Specifications - Environmental Product Compliance: For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
standards/regulations EN 61000-4-6
ambient air temperature for operation -40 °C ... 42 °C
eclass-12.0 27210121
electromagnetic compatibility Conformance with EMC directive
ETIM - 8 EC001485
overvoltage category III
reach svhc Lead 7439-92-1
eclass-13.0 27210121
evaluation criterion A
noise emission EN 61000-6-4
height range > 4000 m ... 5000 m
permissible humidity (storage/transport) 5 % ... 95 % (non-condensing)
unspsc 21.0 39121000
permissible humidity (operation) 10 % ... 95 % (non-condensing)
