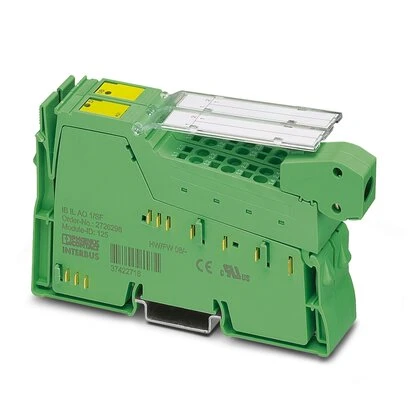

2861315 - IB IL AO 1/SF-PAC - Phoenix Contact
Expected in 2-4 weeks
SPECIFICATIONS
Additional Information
cccex note
Use in potentially explosive areas is not permitted in China.
Main
catalog page
Page 142 (C-6-2019)
diagnostics messages
Failure of or insufficient communications power UL I/O error message sent to the bus coupler
product family
Inline
scope of delivery
including Inline connectors and marking fields
gtin
4017918894252
Mounting type
DIN rail mounting
Product type
I/O component
item number
2861315
packing unit
1 pc
degree of protection
IP20
product key
DRI142
weight per piece (excluding packing)
126 g
weight per piece (including packing)
169.4 g
Complementary
d/a converter resolution
16 bit
id code (dec.)
125
maximum power dissipation for nominal condition
2.52 W
number of interfaces
2

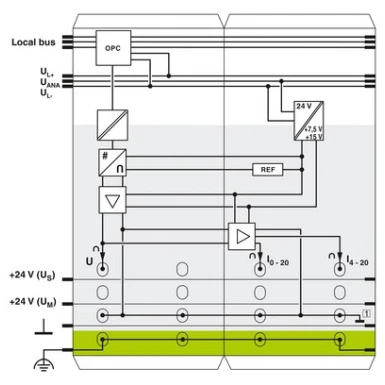

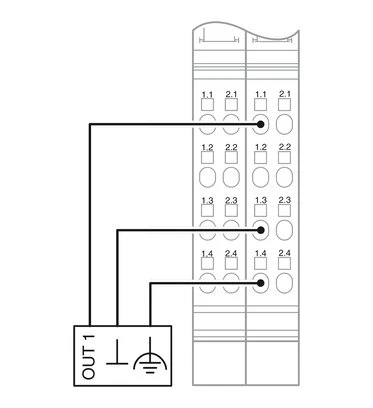

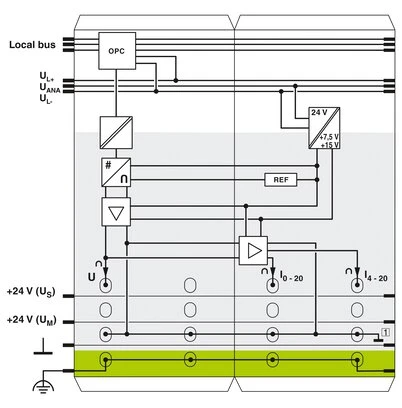

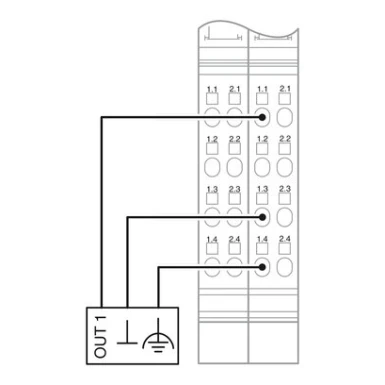

connection method
Spring-cage connection
dac resolution
16 Bit
id code (hex)
7D
conductor cross section, flexible [awg]
0.08 mm² ... 1.5 mm²
connection technology
2-conductor
Country of origin
DE
input address area
0 Byte
load/output load current output
< 500 Ω

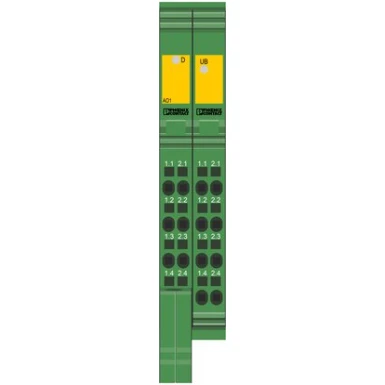

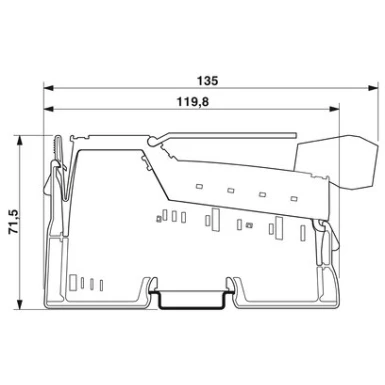

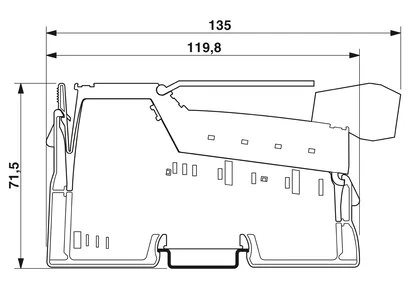

note on dimensions
Housing dimensions
protective circuit
Transient protection of outputs
transmission speed
500 kbps
conductor cross section, rigid [awg]
0.08 mm² ... 1.5 mm²
Handle front plate colour
135 mm
length code (dec)
01
load/output load voltage output
> 2 kΩ
supply voltage range
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
conductor cross section awg
28 ... 16
length code (hex)
01
output address area
2 Byte
output name
Analog output
connection name
Inline connector
process data channel
16 Bit
process data update
< 1 ms
register length
16 Bit
representation of output values
16-bit straight binary
required configuration data
4 Byte
voltage output signal
0 V ... 10 V
required parameter data
4 Byte
width (w)
24.4 mm
number of outputs
1
Colour
green
note regarding the connection technology
shielded
stripping length
8 mm
Minimum order quantity
1 pc
depth
71.5 mm
Network type
modular
Pollution degree
2 (IEC 60664-1, EN 60664-1)
Operating mode
Process data mode with one word
supply voltage
24 V DC (via voltage jumper)
Environment
Ambient air temp for storage/transportation
-25 °C ... 85 °C
Customs tariff number
85389091
eclass-11.0
27242601
protection class
III (IEC 61140, EN 61140, VDE 0140-1)
air pressure (storage/transport)
70 kPa ... 106 kPa (up to 3000 m above sea level)
ambient air temperature for operation
-25 °C ... 55 °C
eclass-12.0
27242601
ETIM - 8
EC001596
overvoltage category
II (IEC 60664-1, EN 60664-1)
reach svhc
Lead 7439-92-1
eclass-13.0
27242601
permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
unspsc 21.0
32151600
permissible humidity (operation)
10 % ... 95 % (non-condensing)
